Low Profile Cable Seal Range
Our low-profile design reduces the overall seal height by up to 71% when compared to our standard range by concealing our seal technology below the mounting surface. This results in a cleaner, more refined appearance.
Range Features
- IP68 waterproof range
- Easy pocket install with hole saw.
- A guaranteed 100% watertight seal
- Marine sealant not required
- Perfect for solar panels, light bars, lights and other rooftop electronics.
- Available in Black Anodized Aluminium or 316 Stainless Steel
- Our materials have been selected to be UV- stable and hard-wearing
- Captive nuts make for easy assembly and also allow for reliable repeat installations.

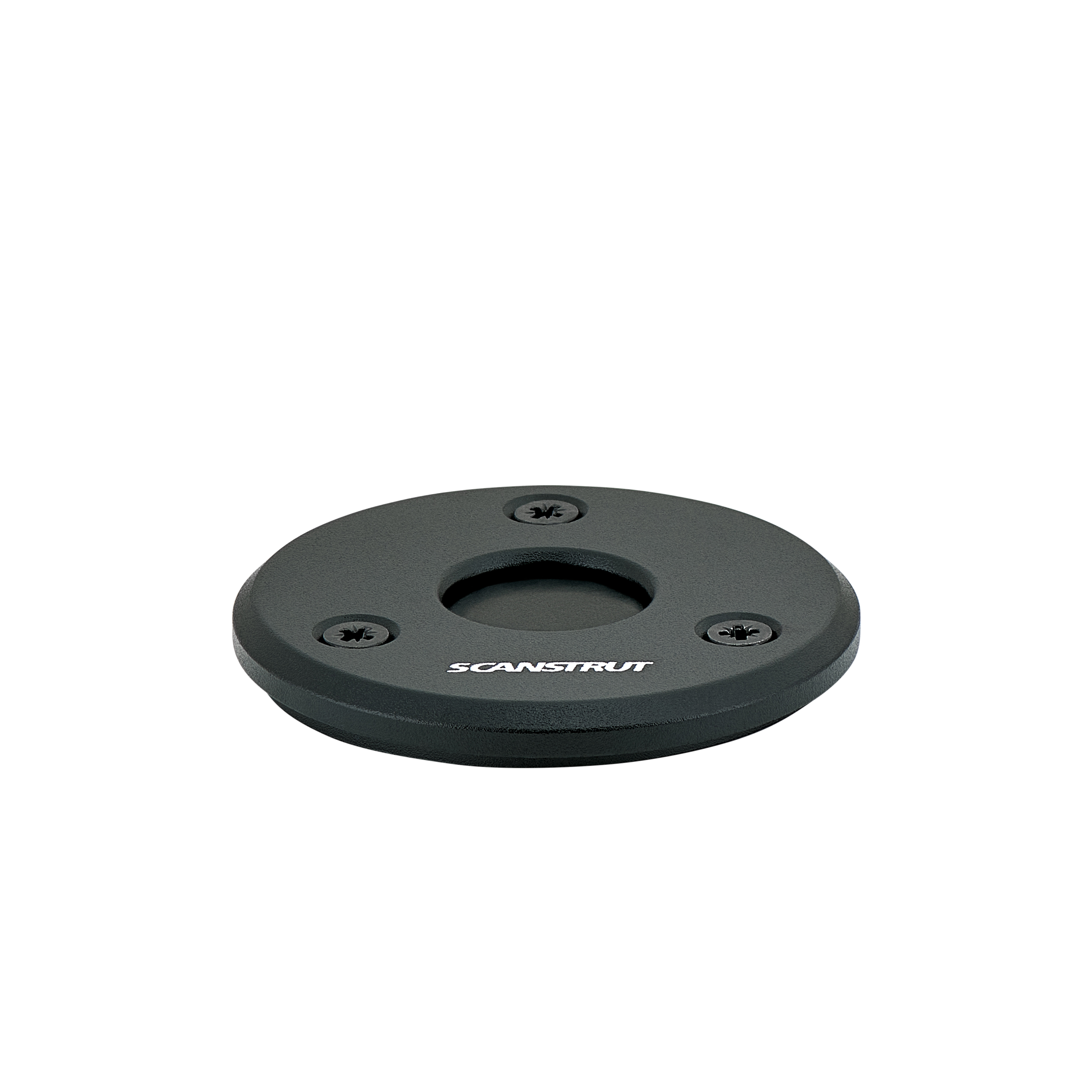

DS-LP-16-BLK
- Cables from 2-8mm (0.08"-0.35")
- For connectors up to Ø16mm (0.63")
DS-LP-16-S
- Cables from 2-8mm (0.08"-0.35")
- For connectors up to Ø16mm (0.63")

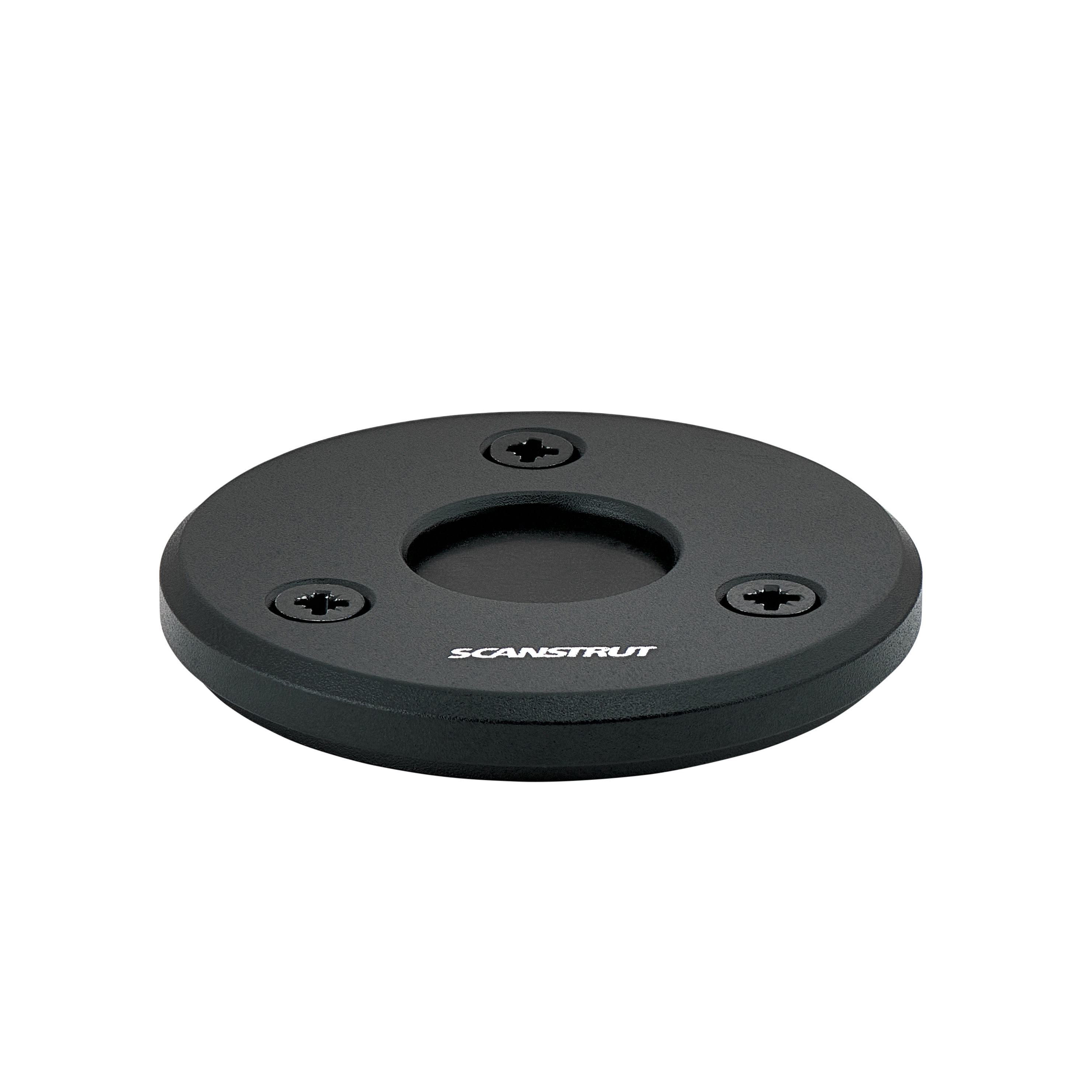

DS-LP-21A-BLK
- Cables from 4-9mm (0.15"-0.35")
- For connectors up to Ø21mm (0.82")
DS-LP-21A-S
- Cables from 4-9mm (0.15"-0.35")
- For connectors up to Ø21mm (0.82")
DS-LP-21B-BLK
- Cables from 9-14mm (0.35"-0.55")
- For connectors up to Ø21mm (0.83")
DS-LP-21B-S
- Cables from 9-14mm (0.35"-0.55")
- For connectors up to Ø21mm (0.83")

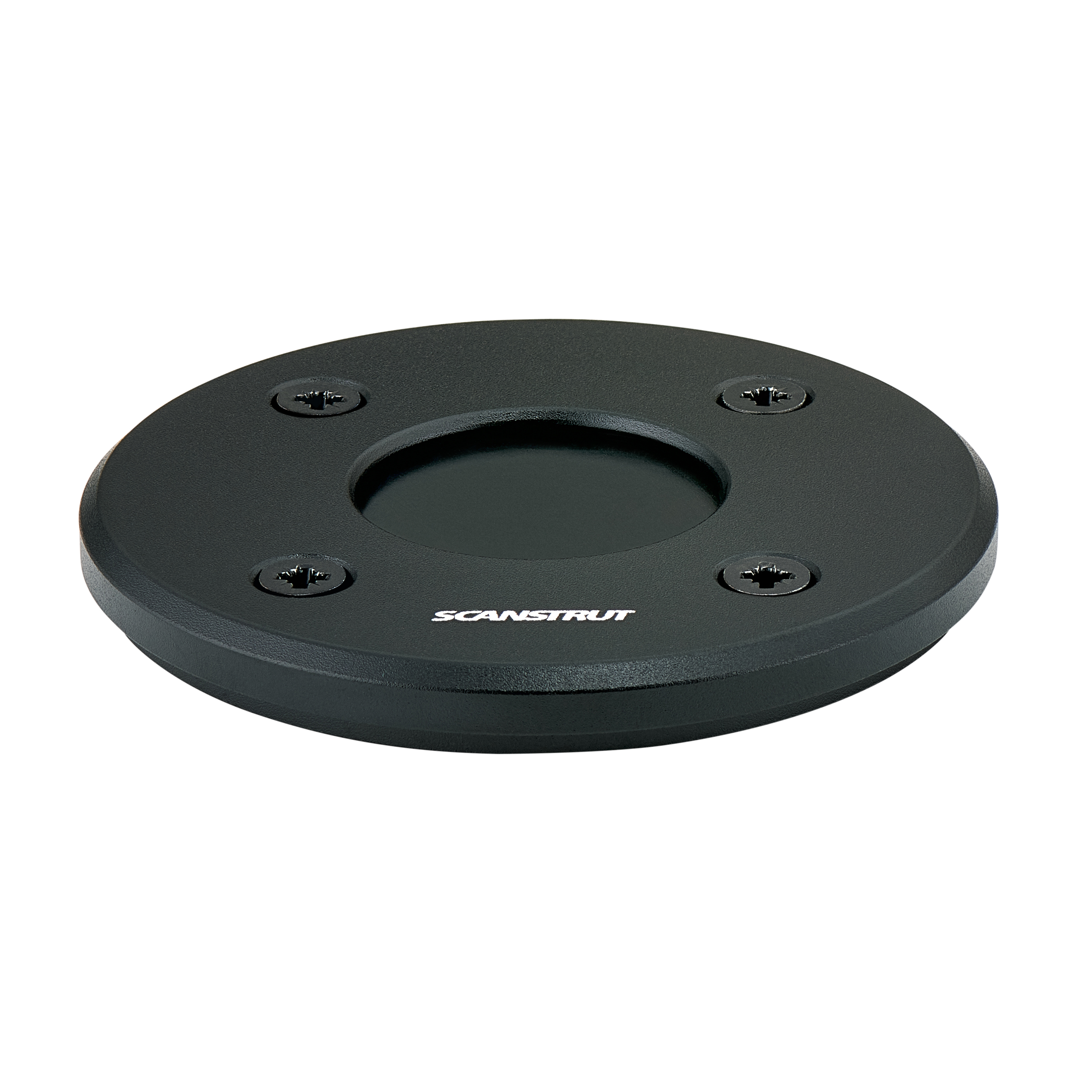

DS-LP-30-BLK
- Cables from 9-14mm (0.35"-0.55")
- For connectors up to Ø30mm (1.18").
DS-LP-30-S
- Cables from 9-14mm (0.35"-0.55")
- For connectors up to Ø30mm (1.18").

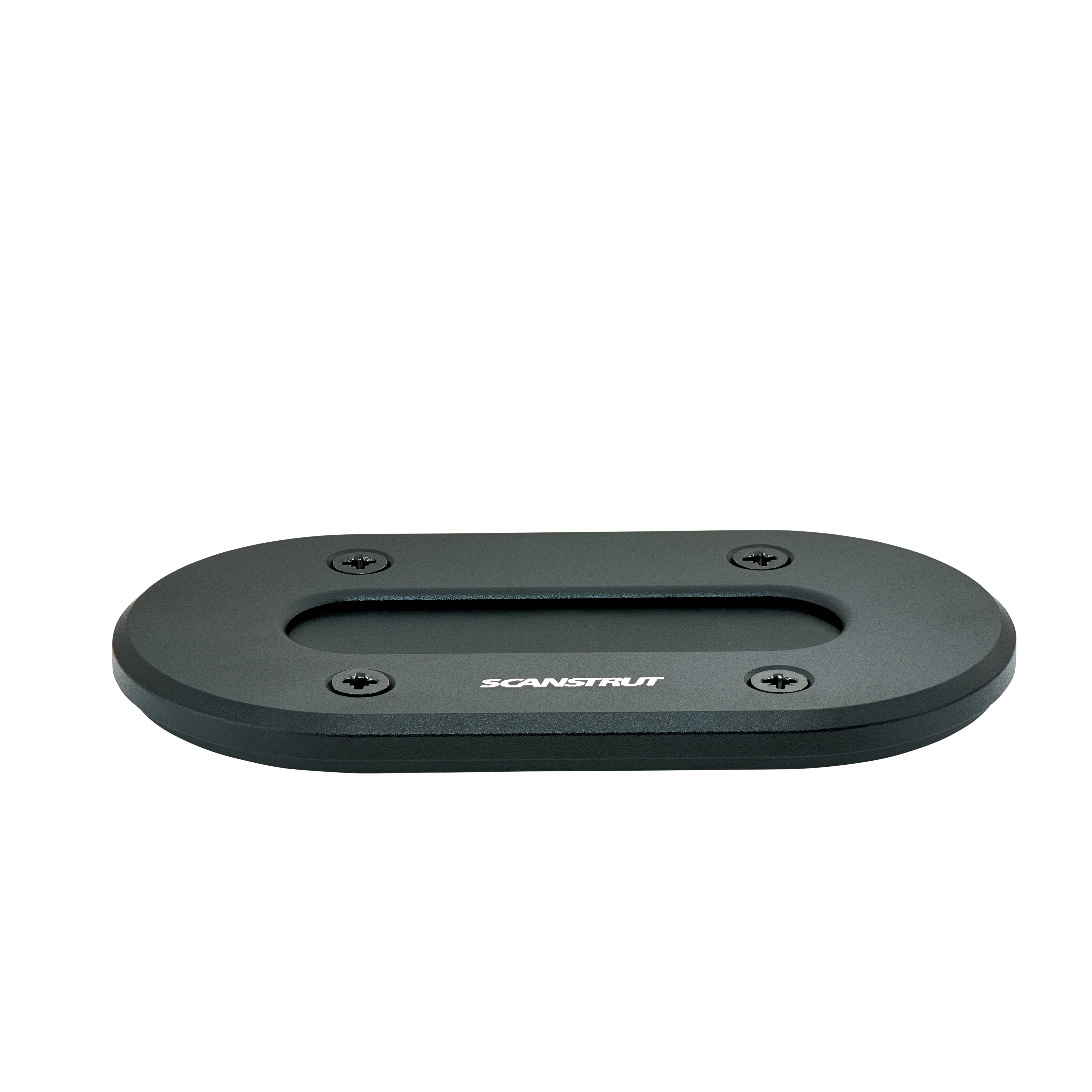

DS-LP-MULTI-BLK
- For multiple cables up to Ø15mm (0.59")
- Anodised Aluminium
- Easy assembly
DS-LP-MULTI-S
- For multiple cables up to Ø15mm (0.59")
- Marine-grade 316 Stainless Steel
- Easy assembly
