Through Bulkhead

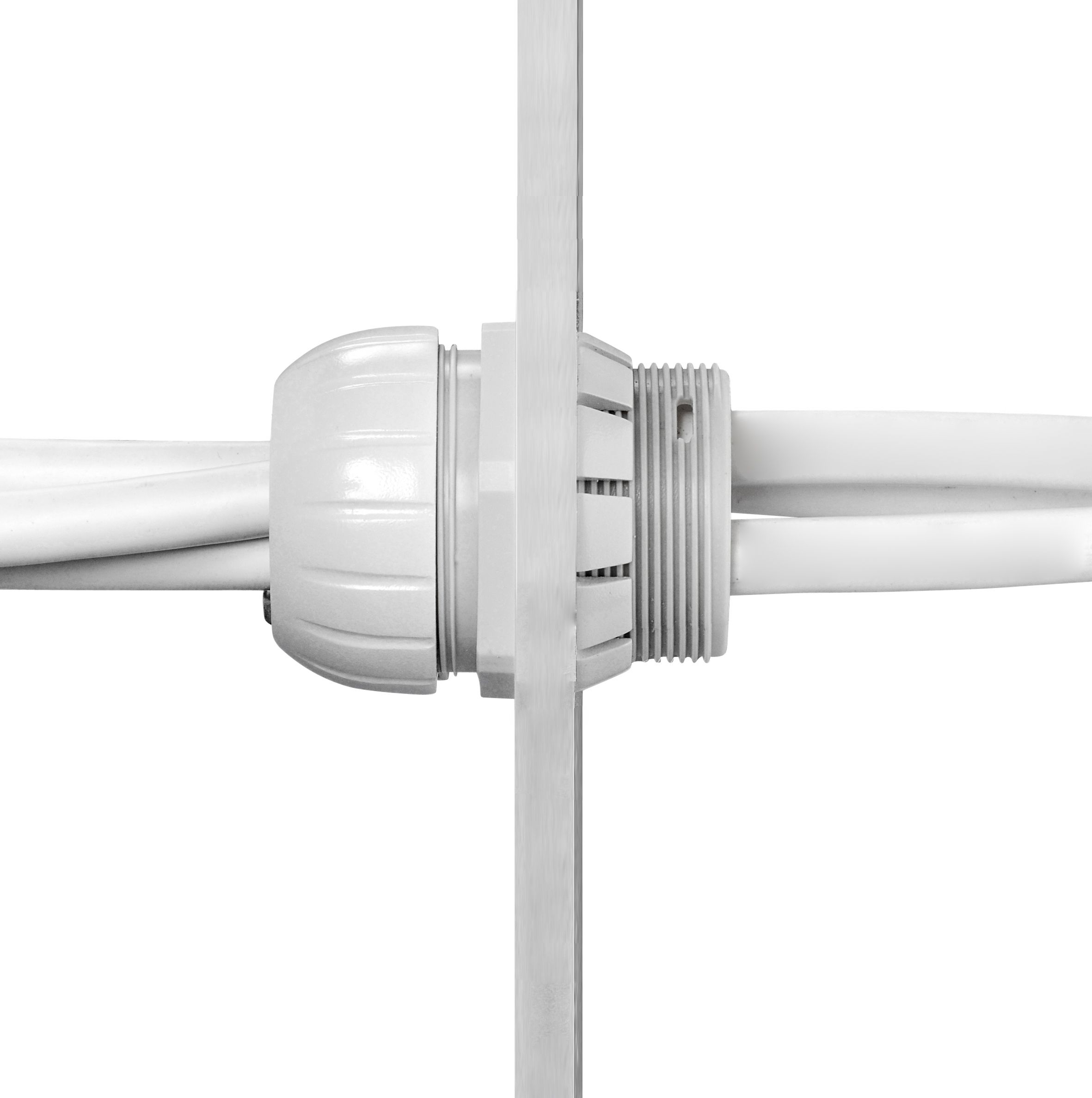

The Through Bulkhead Cable Seal is the best solution for providing a waterproof seal for multiple electrical cables passing through bulkheads.

The range offers IP67 waterproof cable routing and anchoring for up to 10 cables, each measuring 7mm (0.39" x 0.27"), and fits bulkheads ranging from 10mm to 35mm (0.39" to 1.37") in thickness.

Typical installation scenarios include sealing windlass power and control cables through forward bulkheads or routing navigation equipment cables into aft lazarette lockers.

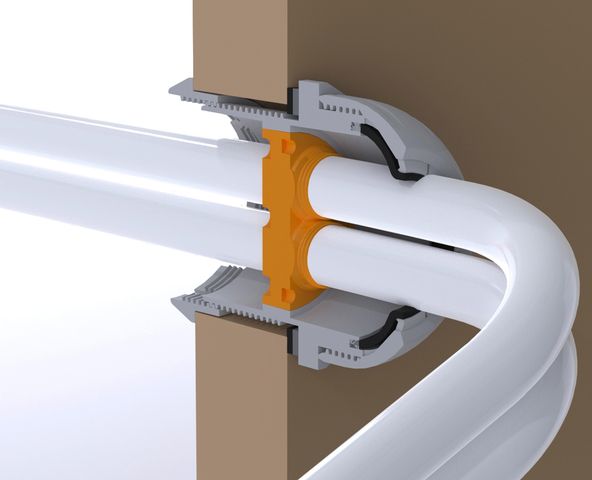

Made from high-strength nylon with an over-moulded internal seal, this product is quick and easy to install. Fitting times are significantly shorter than current alternatives, and installation can be completed by just one person with access from only one side of the bulkhead.
