Scanstrut ATMOS - The 12V Waterproof Built-In Air Pump for Vans and RVs

ATMOS 12V Integrated Air Station

SC-AOB-A2

Designed to maximize quality time on the water

Skip the hassle and hit the water faster with ATMOS - the ultimate built-in air station that inflates your paddleboards, foils, tenders and more!

Designed to be compact, lightweight, and sleek, ATMOS maximizes convenience without taking up precious space in your van. Whether you're gliding across calm lakes or tackling the open sea, ATMOS makes every paddle-boarding adventure effortless.

With both inflate and deflate functions, setting up and packing away your paddleboard is a breeze. Just attach the hose, press start, and kick back with a drink while ATMOS does the work for you!

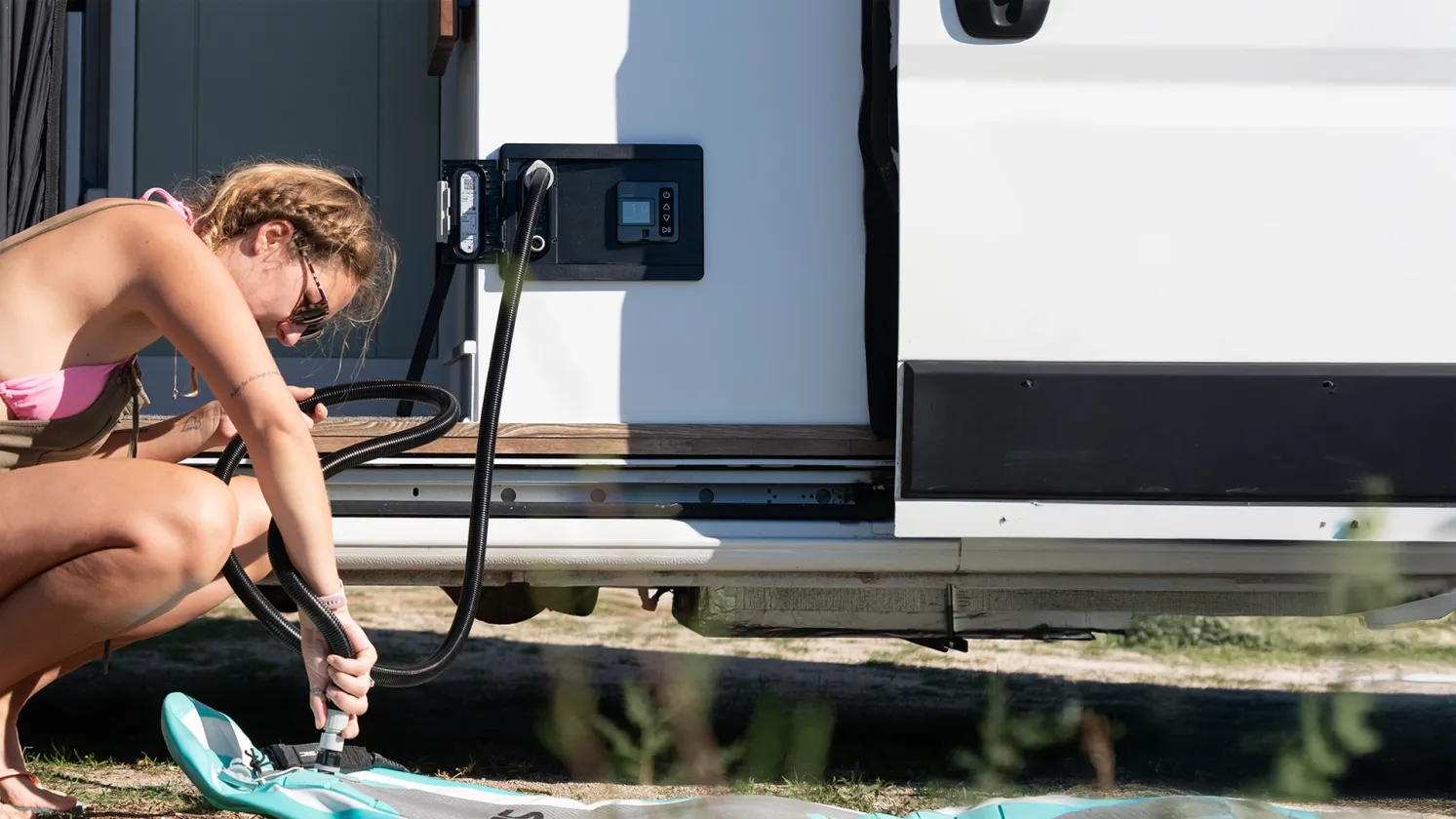

Easily integrate ATMOS into your van setup with its 2.5-meter hose and six versatile attachments, enabling other sporting and uses, so you can spend less time prepping and more time enjoying your sports!

Utilizing Scanstrut’s outdoor technology DNA, this is waterproof on-board air that’s engineered to thrive in the harsh outdoor environments.

Buy Now

Safety

The Stats

Ambient operating temp

-20º to +50 ºC

Input voltage

12V Battery system (11.5 – 14V)

Max current draw

12A (140W)

Max pressure

20 PSI / 1.37 BAR

Max volume of airflow 0-1 PSI

350 LPM/12.3 CFM

Max volume of airflow 1-20 PSI

70 LPM/2.5 CFM

Standby power draw

0.1W Max

Two stage pump

Stage 1 = 0 - 1 PSI
Stage 2 = 1.1 - 20 PSI

Downloads

Technical Drawing User Manual

How

Panel mounted using self-tapping screws or bolts (not included), foam gasket included.

Installation angle

+ 10º to - 30º from vertical

Service

No end-user serviceable parts

Where

Fit into a wide variety of locations on board: seating, side panels or consoles. Min cavity depth 110mm (4.33”)

Ignition Protection - ISO 8846 and SAE J1171.

ATMOS SC-AOB-A2 has successfully undergone all required tests and complies with the rigorous standard for Ignition Protection. This certification signifies that ATMOS can be safely installed in any location on a boat or vehicle.

Environmental protection

Conformal coated electronics and PCB

Brushless Technology

Featuring high performance brushless motors designed for the marine environment.

Protection

Reverse polarity, short-circuit, under voltage, overload, over temp.

Certifications

CE, ROHS, UN ECE R10, UKCA

Cable length

500mm (20”) 1.5mm2 16 AWG

Waterproof rating

IPX6 front and rear (door closed)

Air flow

In and out of front of unit only. Rear of unit sealed

Max run time

25 minutes (3 SUPs)

Under protection

Soft motor start

Standby mode

No activity auto shut off - 5 mins

Max pressure output

20 PSI / 1.4 BAR

Warranty

2 Year warranty

Auto shut-off

At target pressure

Ambient operating temp

-20º to +50 ºC

Ignition Protection

ATMOS SC-AOB-A2 meets the ISO 8846 and SAE J1171 test standard for Ignition Protection.

On Water Test

Dynamic on water testing in harsh coastal conditions. Mounted to a test vessel to evaluate its performance in rough sea states.

Corrosion Test

100-hours of a special formula salt spray that simulates accelerated marine environmental effects on the product.

IP Test

Water and dust protection under test laboratory conditions to international IP standards. We test between IPX4 (waterjet) and IP68 (submersion).

Material Test

Positive Material Identification (PMI) ensures consistent quality of 316 Stainless Steel and Aluminium products. This controls strength and environmental performance.

Impact Test

Drop tests to assess the impact of items falling onto our products and ensure they can withstand impacts while being used as intended.

Cable Bend Test

Electrical products are bolted into a specially designed automated jig to mechanically bend the cable -45° to +45° for 3000 cycles. This ensures cables will not fail even after prolonged use.

Cable Twist Test

Electrical products are bolted into a specially designed automated jig to mechanically twist the cable -45° to +45° for 3000 cycles. This ensures cables will not fail even after prolonged use.

Thermal Chamber Test

Laboratory chamber running from -40°C (-40°F) to +85°C (185°F) and back to -40°C (-40°F) for 120 cycles, this accelerates material ageing to simulate real world environment.

Accelerated UV Material Test

We accelerate the effects of UV exposure to replicate our products usage in extreme tropical climates. We do this to ensure parts do not become brittle, discolour or fail over time.

Temperature Chamber Test

Product placed in a laboratory chamber at high temperatures to ensure our products continue to perform as designed.

Humidity Chamber Test

Similar to our brutal SCA Thermal Chamber Test, but we’ve added humidity to make it even more punishing.

CE / UKCA

Signifies that our products have been assessed to meet high safety, health, and environmental protection requirements.

ECE R10

The global automotive standard recognised by RV and Marine OEMs to ensure electrical devices are suitable to use in automotive builds.

ROHS

Confirms the levels of substances and chemicals in our electrical products, with the aim of protecting human and animal health. 

Product Details

Compatibility Checker

SCA Testing

The testing standard at Scanstrut is encapsulated by the acronym SCA, which stands for Safe, Certified, and Approved. With over 35 years of experience and expertise in designing products for outdoor use, Scanstrut design products to be able to thrive in the harshest of outdoor environments.

Before any product is released, it must pass through the rigorous testing program which involves assessments in electrical, mechanical, U.V., corrosion, thermal, and waterproof categories. To ensure the highest level of accuracy, testing is conducted both internally and by independent ISO accredited test houses.

This commitment to quality has earned Scanstrut the approval of renowned names such as Mercury Marine, Grady White Boats, Boston Whaler, Winnebago, Airstream and many more. To learn more about the SCA testing program and certifications, get in touch.

On Water Test

Dynamic on water testing in harsh coastal conditions. Mounted to a test vessel to evaluate its performance in rough sea states.

Corrosion Test

100-hours of a special formula salt spray that simulates accelerated marine environmental effects on the product.

IP Test

Water and dust protection under test laboratory conditions to international IP standards. We test between IPX4 (waterjet) and IP68 (submersion).

Material Test

Positive Material Identification (PMI) ensures consistent quality of 316 Stainless Steel and Aluminium products. This controls strength and environmental performance.

Impact Test

Drop tests to assess the impact of items falling onto our products and ensure they can withstand impacts while being used as intended.

Cable Bend Test

Electrical products are bolted into a specially designed automated jig to mechanically bend the cable -45° to +45° for 3000 cycles. This ensures cables will not fail even after prolonged use.

Cable Twist Test

Electrical products are bolted into a specially designed automated jig to mechanically twist the cable -45° to +45° for 3000 cycles. This ensures cables will not fail even after prolonged use.

Thermal Chamber Test

Laboratory chamber running from -40°C (-40°F) to +85°C (185°F) and back to -40°C (-40°F) for 120 cycles, this accelerates material ageing to simulate real world environment.

Accelerated UV Material Test

We accelerate the effects of UV exposure to replicate our products usage in extreme tropical climates. We do this to ensure parts do not become brittle, discolour or fail over time.

Temperature Chamber Test

Product placed in a laboratory chamber at high temperatures to ensure our products continue to perform as designed.

Humidity Chamber Test

Similar to our brutal SCA Thermal Chamber Test, but we’ve added humidity to make it even more punishing.

CE / UKCA

Signifies that our products have been assessed to meet high safety, health, and environmental protection requirements.

ECE R10

The global automotive standard recognised by RV and Marine OEMs to ensure electrical devices are suitable to use in automotive builds.

ROHS

Confirms the levels of substances and chemicals in our electrical products, with the aim of protecting human and animal health. 

2.5M (8ft) Hose

or optional 3.6M (12ft) hose

When inflating a paddleboard on a boat, the most stable location for the pump is usually on the deck or another flat surface. However, this location may not be close enough to the paddleboard to allow for easy inflation if the hose is too short. A longer hose can help to bridge this distance, allowing you to move the pump away.

6 x Hose Attachments

Supplied with 6 different adapters including; Boston Valve, C7 Valve, H3/HR Valve, Pinch Valves, and 805 Valve. You have everything you need to inflate and deflate your toys with ease, no matter what type of valve it has.

Sun Cover

Supplied with a heavy-duty sun cover, ATMOS is protected against the long-term damaging effects of the sun, salt, and other elements. It comes fitted as standard with a black cover, with white available as an accessory. With our sun cover, you'll be able to keep your ATMOS looking its best for longer.

White Cover - P/N SC-AOB-A2-SC1

The Back

Easily integrate ATMOS into your boat with its compact and shallow design. The versatile airstation can be installed in a variety of locations, including seating, consoles, or by the swim platform, making it convenient and accessible wherever it's needed. Easily installed into any panel using 10 self-tapping screws, with a foam gasket included to ensure a secure and waterproof fit.

The Front

Take control with our Soft Touch TPE buttons and cutting-edge LCD display. Specially crafted for the challenging marine environment, the buttons feature a non-slip texture that provides a tactile surface, even with wet hands and the bright, wide viewing angle display means you can have a great view from any place on the boat, even on the brightest days. The display also features a helpful Live Voltage readout, so you can easily keep track of your boat's battery health.

The Side

The minimum cavity depth required is 110mm/4.33", and it can be installed at an angle ranging from +10º to -30º from vertical. The power cable length is 500mm (20”) with a wire gauge of 2.0mm2 (14 AWG), please note that there are no end-user serviceable parts.

Innovative Two-Stage Pump

ATMOS with Brushless Technology - Unleash the power, efficiency, and reliability of our innovative two-stage pump system designed to meet the rugged demands of the marine environment. The first stage features a highly efficient fan motor, followed by a robust piston pump, both designed specifically for the rugged demands of the marine environment. ATMOS, combines both pumps into one waterproof, easy-to-use onboard air station, automatically switching at 1.1PSI from the HVLP to the HPLV pump.

Stage 1: High-volume, low-pressure (HVLP)
Designed to move large volumes of air with minimal pressure. They are typically used for inflating larger inflatable objects like kayaks, large tubes and bathing platforms as they can quickly inflate the object to the desired pressure.

Stage 2: High-pressure, low-volume (HPLV)
Designed to generate a high level of pressure with a low volume of air. Perfect for inflating smaller toys like SUPs, inflatable kayaks, and tubes that require a higher level of pressure for optimum performance.
