Self Levelling Radar - Dual Pole Leveller

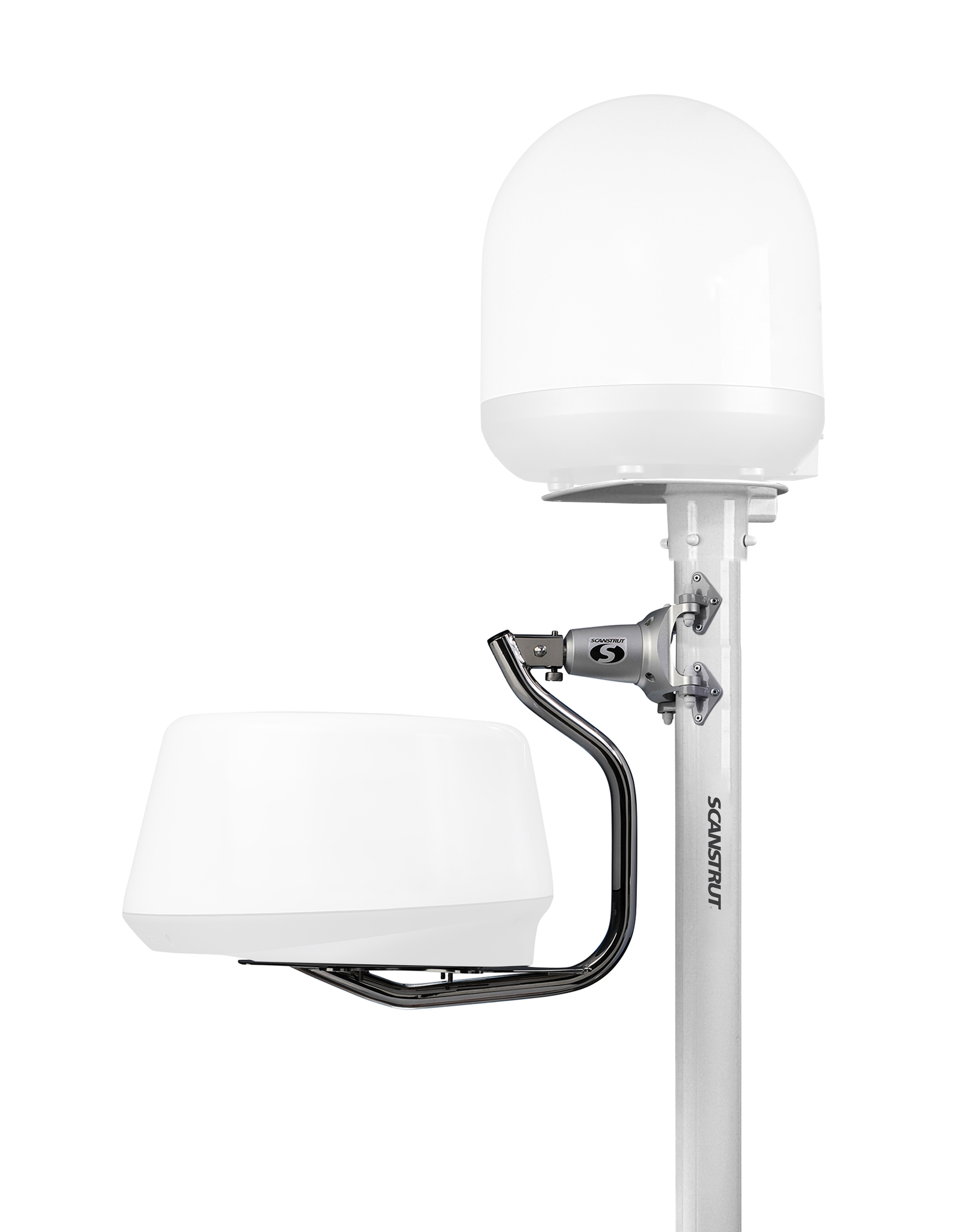

Our Dual Pole Levelling mount enables installation of both radar and Satcom antenna onto your sailboat in one space-saving mount. This combines our much loved SC100 pole made from marine grade aluminium, the levelling cradle with passive damping chamber for radar and our GRP Satcom top plate to match your choice of Satcom antenna, which is mounted above the radar. This is a premium mounting solution for a boat that is looking to get the best performance of its technology onboard. Designed to fit the most up to date radars from Garmin, Raymarine, B&G, Furuno and Satcoms from KVH, Intellian, Cobham, Glomex and more.
Range Features
- Mount both radar and Satcom in one installation.
- 2.5m (8.3’) pole height.
- Fine-tuned damping system keeps your radar level at all times.
- Pole can be installed on both sloping transoms and level decks.
- Supplied with two deck struts which provide maximum Fore/Aft and sideways support.
- Features two cable channels with a cover strip to hold cables in place and out of view.

DLMP1-30
- Marine Grade Aluminium and 316 Stainless Steel
- 2.5m (8.3’) High
- Fits Garmin, Raymarine, Simrad, Lowrance Radar

DLMP1-30F
- Marine Grade Aluminium and 316 Stainless Steel
- 2.5m (8.3’) High
- Fits Garmin, Raymarine, Simrad, Lowrance Radar

DLMP1-45
- Marine Grade Aluminium, 316 Stainless Steel and GRP
- 2.5m (8.3’) High
- Fits Garmin, Raymarine, Simrad, Lowrance Radar

DLMP1-45R
- Marine Grade Aluminium, 316 Stainless Steel and GRP
- 2.5m (8.3’) High
- Fits Garmin, Raymarine, Simrad, Lowrance Radar

DLMP2-30
- Marine Grade Aluminium and 316 Stainless Steel
- 2.5m (8.3’) High
- Fits Furuno radars

DLMP2-30F
- Marine Grade Aluminium and 316 Stainless Steel
- 2.5m (8.3’) High
- Fits Furuno radars

DLMP2-45
- Marine Grade Aluminium, 316 Stainless Steel and GRP
- 2.5m (8.3’) High
- Fits Furuno radar

DLMP2-45R
- Marine Grade Aluminium, 316 Stainless Steel and GRP
- 2.5m (8.3’) High
- Fits Furuno radar
