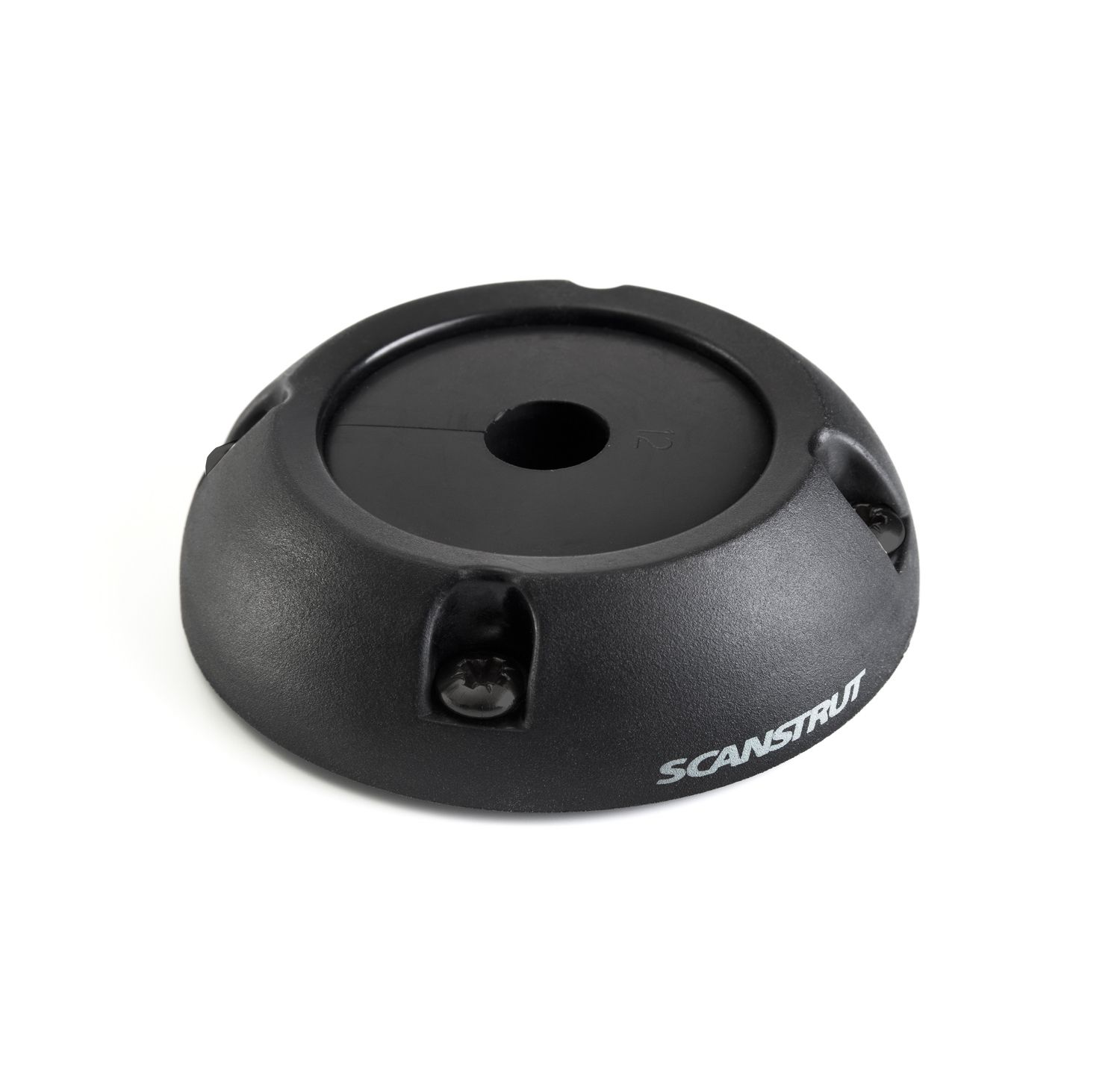

DS40-P-BLK
Our largest IP68 vertical entry cable seal
For cables from 12-15mm (0.47"-0.59"), connectors up to Ø40mm (1.57") an aesthetic dome-shaped profile provides a stronger, impact-resistant design and captive nuts in the base make for an easy assembly.
Product Information.
Watertight Installation
Tapered bung forms a watertight seal. All units are supplied with a closed-cell base seal - 100% waterproof. All models have been IP68 tested and approved.
Easy and Reliable Installation
Captive nuts make for easy assembly and also allow reliable repeat installations. Each unit supplied with both pre-drilled and blank inner seals to make your installation as easy as possible.
No Need to Remove Cable Connectors
Split-seal option does not require connector removal during install.
Multi-Functional Dome Shape
The aesthetic dome-shaped profile provides a stronger, impact-resistant design and outer dome provides additional water shield.
Our Testing Ethos
Our testing standard at Scanstrut is encapsulated by the acronym SCA, which stands for Safe, Certified, and Approved. With over 35 years of experience and expertise in designing products for outdoor use, we design our products to be able to thrive in the harshest of outdoor environments.
Before any product is released, it must pass through our rigorous testing program which involves assessments in electrical, mechanical, U.V., corrosion, thermal, and waterproof categories. To ensure the highest level of accuracy, testing is conducted both internally and by independent ISO accredited test houses.
Our commitment to quality has earned us the approval of renowned names such as Mercury Marine, Grady White Boats, Boston Whaler, Winnebago, Airstream and many more. To learn more about our testing program and certifications, please feel free to reach out to us.
SAFE, CERTIFIED & APPROVED
“Our meticulous testing standards ensures that our products maintain an impressively low returns rate of just 0.05%*. We take pride in our commitment to excellence and our ability to consistently deliver high-quality products to our customers.”
*Data from all products shipped in 2022
Corrosion Test
FEA Analysis
Material Test
Accelerated UV Material Test
PROP65
IP Test
DS6-P-BLK
- For cables from 2-6mm (0.08"-0.24")
- Our most compact cable seal
DS16-P-BLK
- Cables from 2-8mm (0.08"-0.35")
- For connectors up to Ø16mm (0.63")
DS21A-P-BLK
- Cables from 4-9mm (0.15"-0.35")
- For connectors up to Ø21mm (0.82")
DS21B-P-BLK
- Cables from 9-14mm (0.35"-0.55")
- For connectors up to Ø21mm (0.83")
DS30-P-BLK
- Cables from 9-14mm (0.35"-0.55")
- For connectors up to Ø30mm (1.18")
DS6-P
- For cables from 2-6mm (0.08"-0.24")
- Our most compact cable seal
DS16-P
- Cables from 2-8mm (0.08"-0.35")
- For connectors up to Ø16mm (0.63")
DS21A-P
- Cables from 4-9mm (0.15"-0.35")
- For connectors up to Ø21mm (0.82")
DS21B-P
- Cables from 9-14mm (0.35"-0.55")
- For connectors up to Ø21mm (0.83")
DS30-P
- Cables from 9-14mm (0.35"-0.55")
- For connectors up to Ø30mm (1.18").
DS40-P
- Cables from 12-15mm (0.47"-0.59")
- For connectors up to Ø40mm (1.57")
DS16-S
- Cables from 2-8mm (0.08"-0.35")
- For connectors up to Ø16mm (0.63")
DS21A-S
- Cables from 4-9mm (0.15"-0.35")
- For connectors up to Ø21mm (0.82")
DS21B-S
- Cables from 9-14mm (0.35"-0.55")
- For connectors up to Ø21mm (0.83")
DS30-S
- Cables from 9-14mm (0.35"-0.55")
- For connectors up to Ø30mm (1.18")
DS40-S
- Cables from 12-15mm (0.47"-0.59")
- For connectors up to Ø40mm (1.57")
