For Raymarine, Garmin, B&G radars
Radar Pole Mount 1.9m (6.4')
SC101

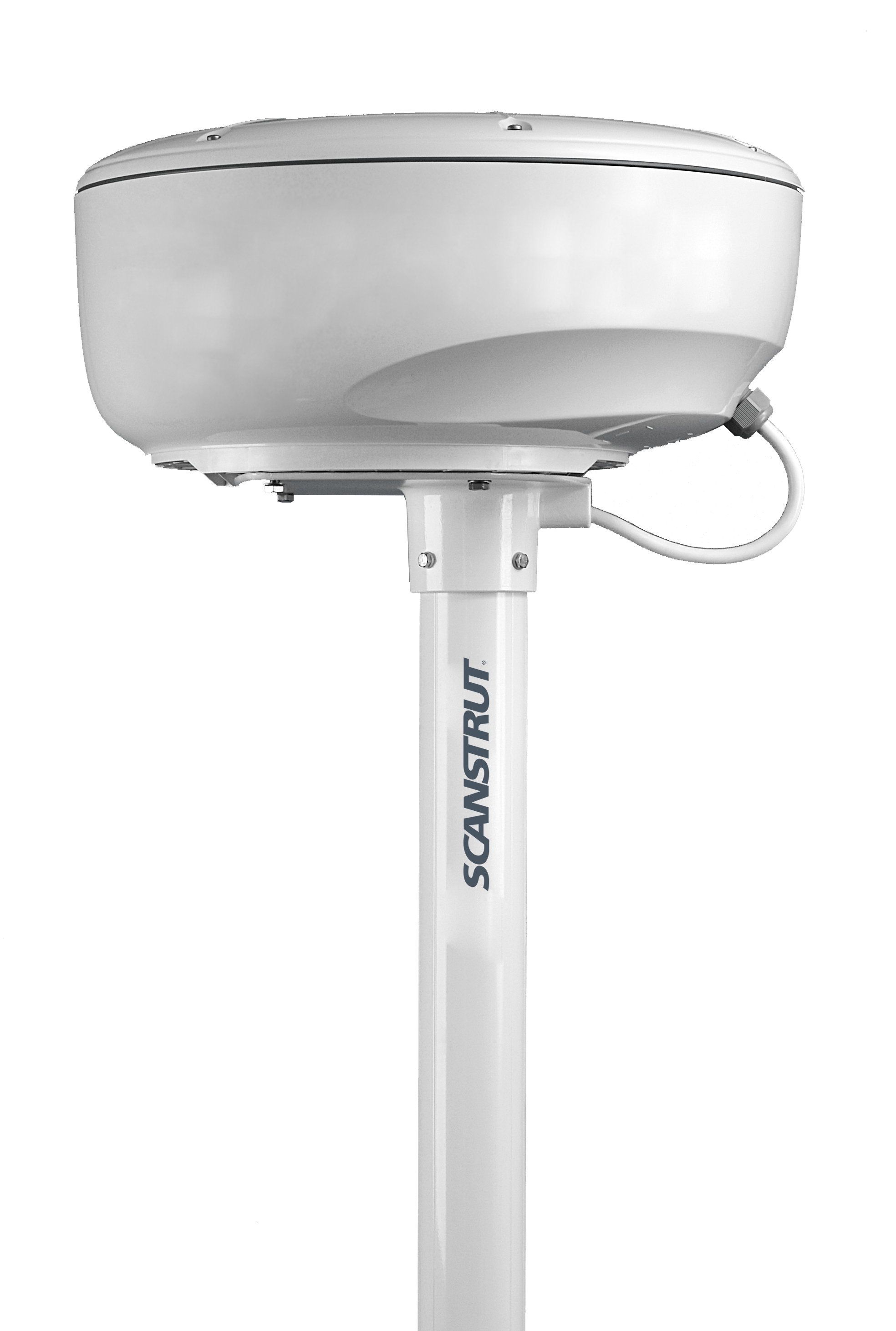

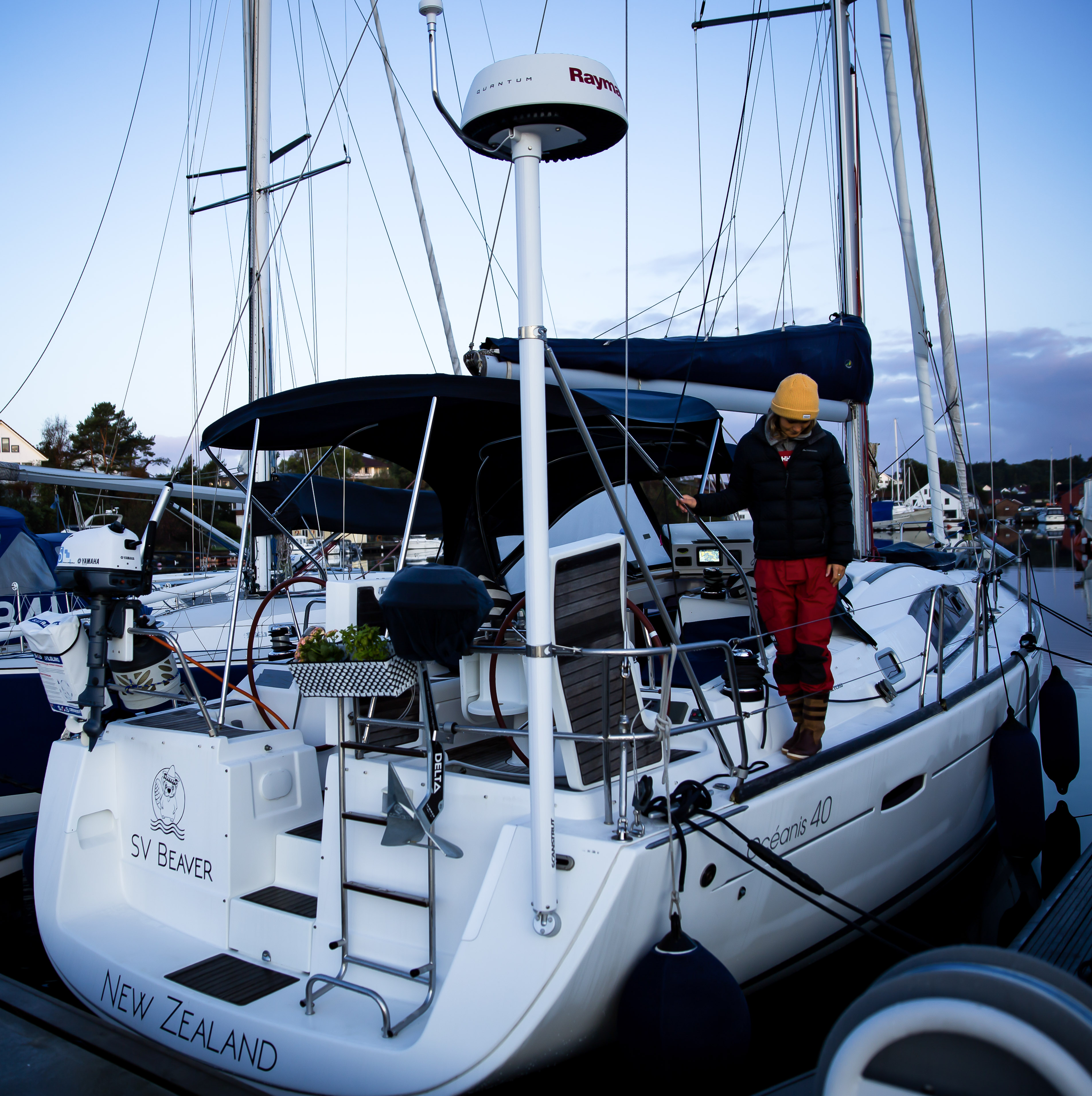

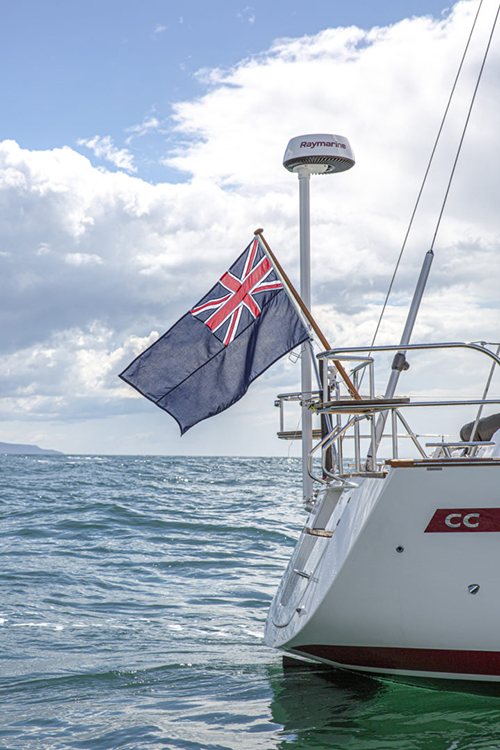

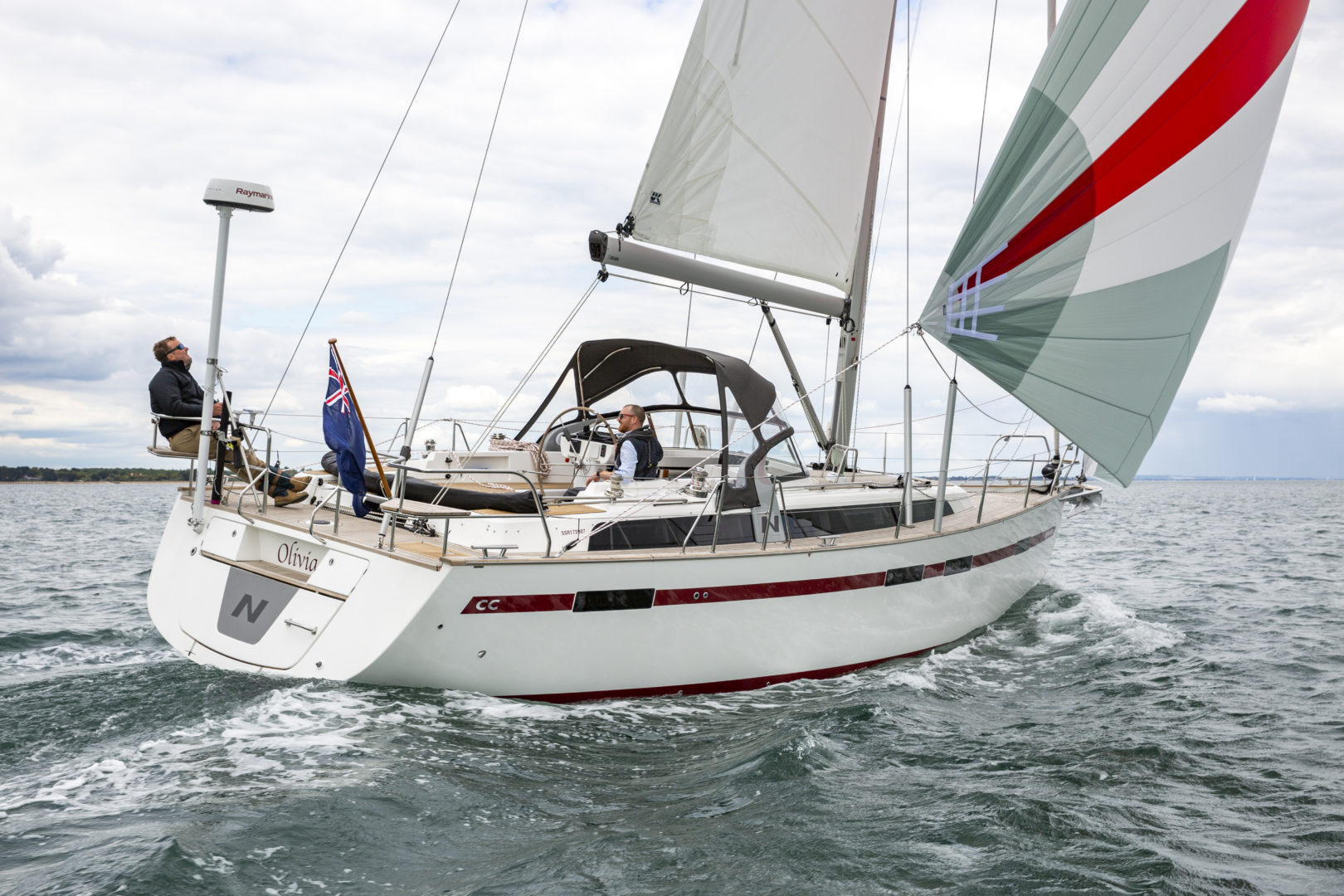

Totally universal, the SC101 Pole Mount installs your radar onto the deck or transom of your boat.
Supplied as a complete kit, you will have everything you need for a quick and easy installation.
Made from marine-grade aluminium and coated with our unique 4-step marine paint system, making sure that your pole mount stays looking its best year in, year out, whatever the oceans throw at it.

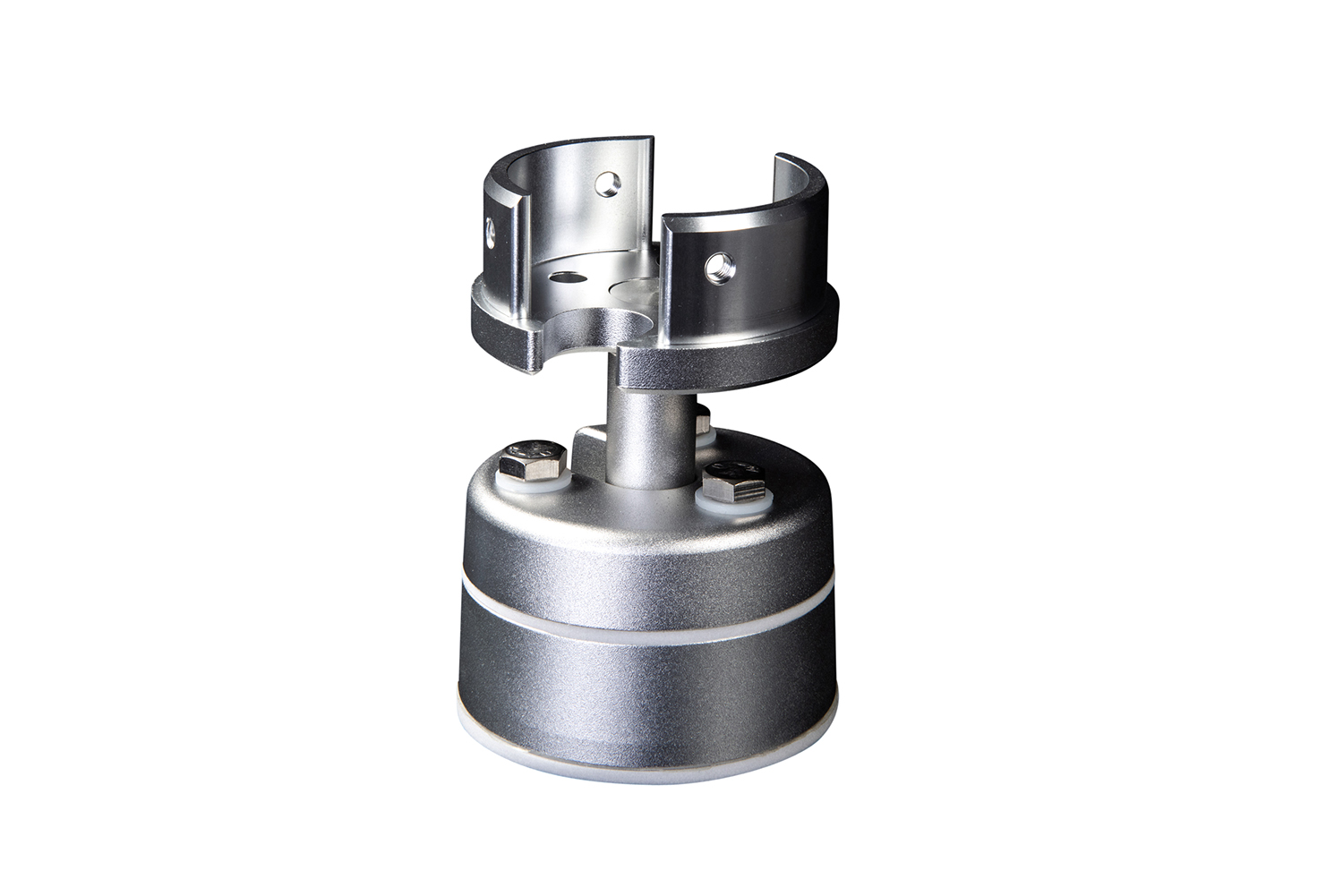

360° Adjustable Base
New look anodised aluminium base gives choice when deciding where you wish to install the pole mount. Base enables the pole to be installed on both sloping transoms and level decks.
Unique Pole Extrusion
Accommodates two cable channels with a cover strip to hold cables in place and out of view.

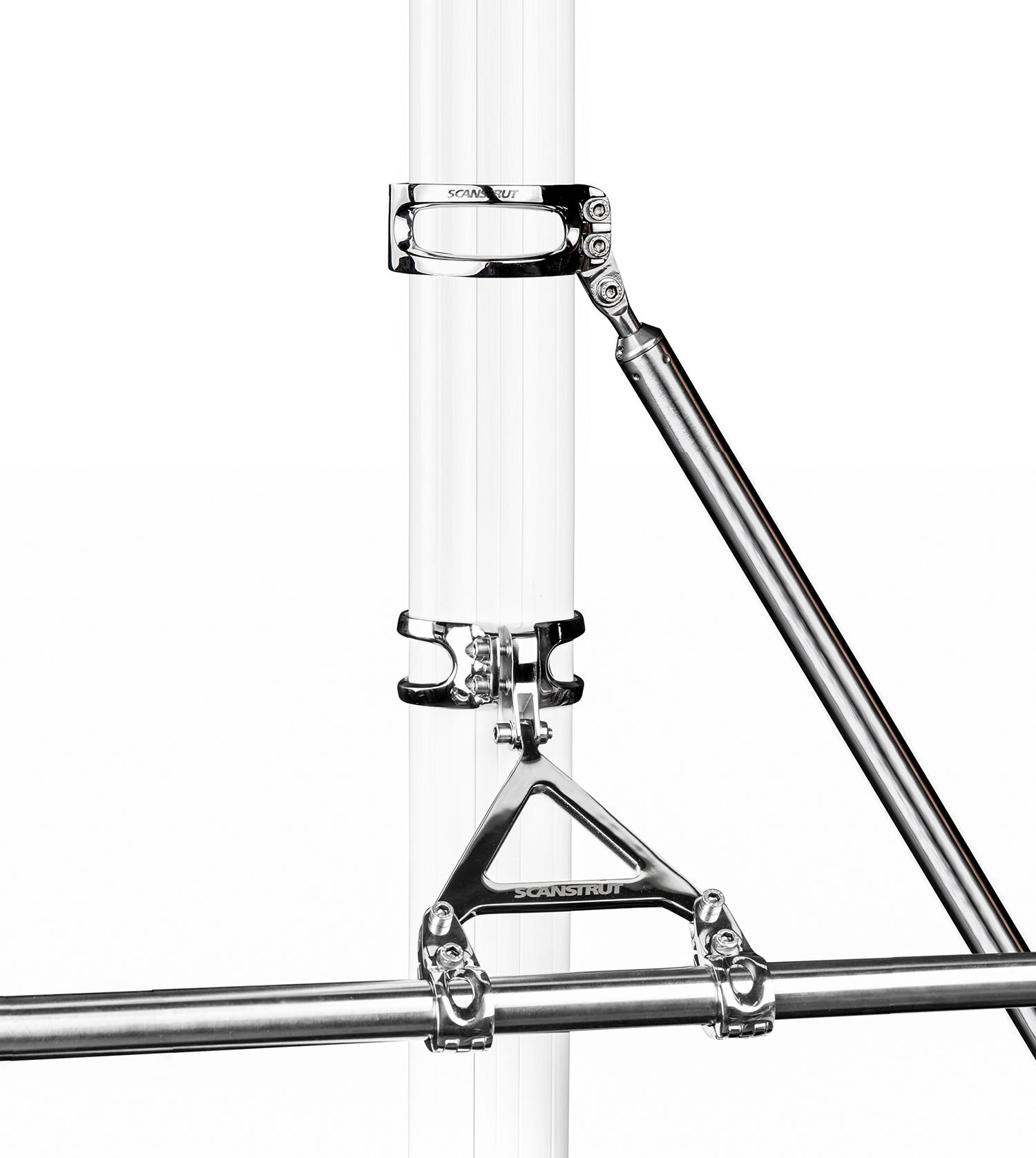

Stable Installation
Have confidence in your installation - you are supplied with two support modules which provide maximum fore/aft and sideways support.
Easily Removed
Unscrew the base and remove pole for racing or winter storage, leaving just low profile base on deck.
Choice of Height
1.9m (6.4’) recommended for deck mounting and 2.5m (8.3’) recommended for transom mounting.
Marine Grade Materials
6082 aluminium pole with a polyester powder coat for a durable and gloss white finish.
Size Guide
| Pole Height | 1.9m (6.4') |
| Pole Diameter | 83mm (3.27”) |
| Deck Strut Length | 1200mm (47.2") |
| Rail Standoff Diameter | 25mm rail (0.98") |
Technical Specification
| Pole Material | 6082 Aluminum |
| Hardware Material | Anodised Aluminium / 316 Stainless Steel |
| Colour | White |
| Mounting Hardware | Included |
Installation Guide
In The Wild
Alex Bennett's Swan 46 Refit
Follow Alex's step by step install of our SC100 Pole on his Swan 46 - "Scanstrut’s purpose-built stern mount radar pole offers all the answers straight out of the box. Its lightweight, beautifully engineered and thanks to its cleverly designed base plate mounting system, installation is a simple process."
Accessories

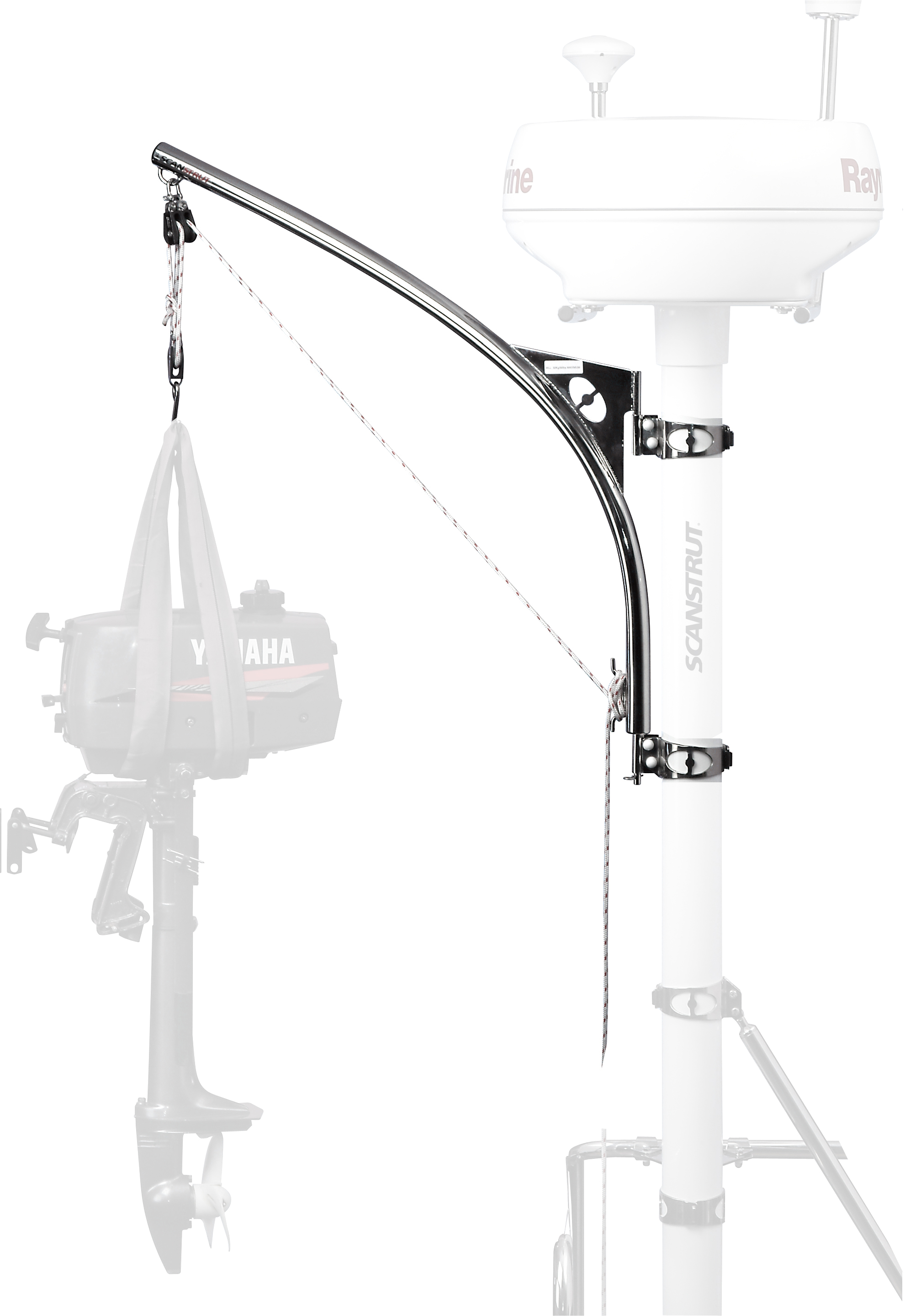

SC120 Lifting Crane
