Antenna Mount
SC80
Manufactured from marine grade 316 Stainless Steel and is mirror polished for a hi-end finish.
The SC80 provides an ultra-robust option for mounting some of the world's premium Satcom technologies.

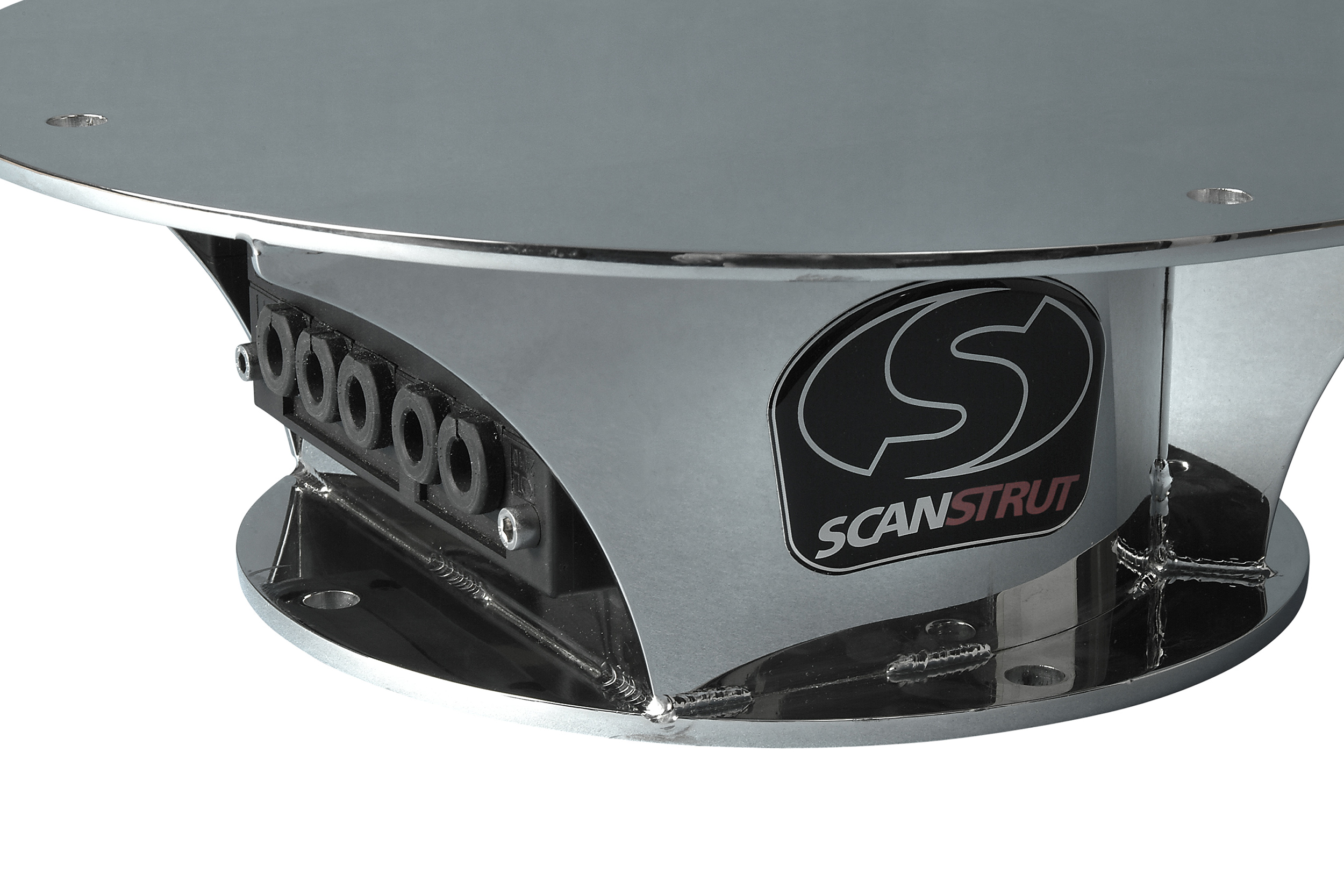

With a unique cable gland system for up to five cables all running through a KDL gland plate, it gives the SC80 an IP68 rating.
Your selected antenna will be mounted using external fixings and pre-drilled holes, making installation and maintenance simple.
All the cable routing for the antenna is through the base of the mount which leaves a clean and simple finish.
Using this mount reduces the overall footprint of the Satcom Antenna, providing you with greater flexibility when selecting an installation location and facilitating installation on narrow radar arches.
Key Features
- Manufactured from marine grade 316 Stainless Steel
- Mirror polished for hi-end finish
- Cables installed through KDL gland plate with IP68 rating for complete watertight installation
- Raises antenna by 80mm, allowing inspection hatch to open fully for easy cable connection
Technical Specification
| Material | Marine Grade 316 Stainless Steel |
| Height | 80mm (3.14") |
| Colour | Silver |
| Integrated Cable Seal | Yes |
| Mounting Gasket Included | Yes |
| Diameter | 370mm (14.5") |
Installation Guide
