Top Product

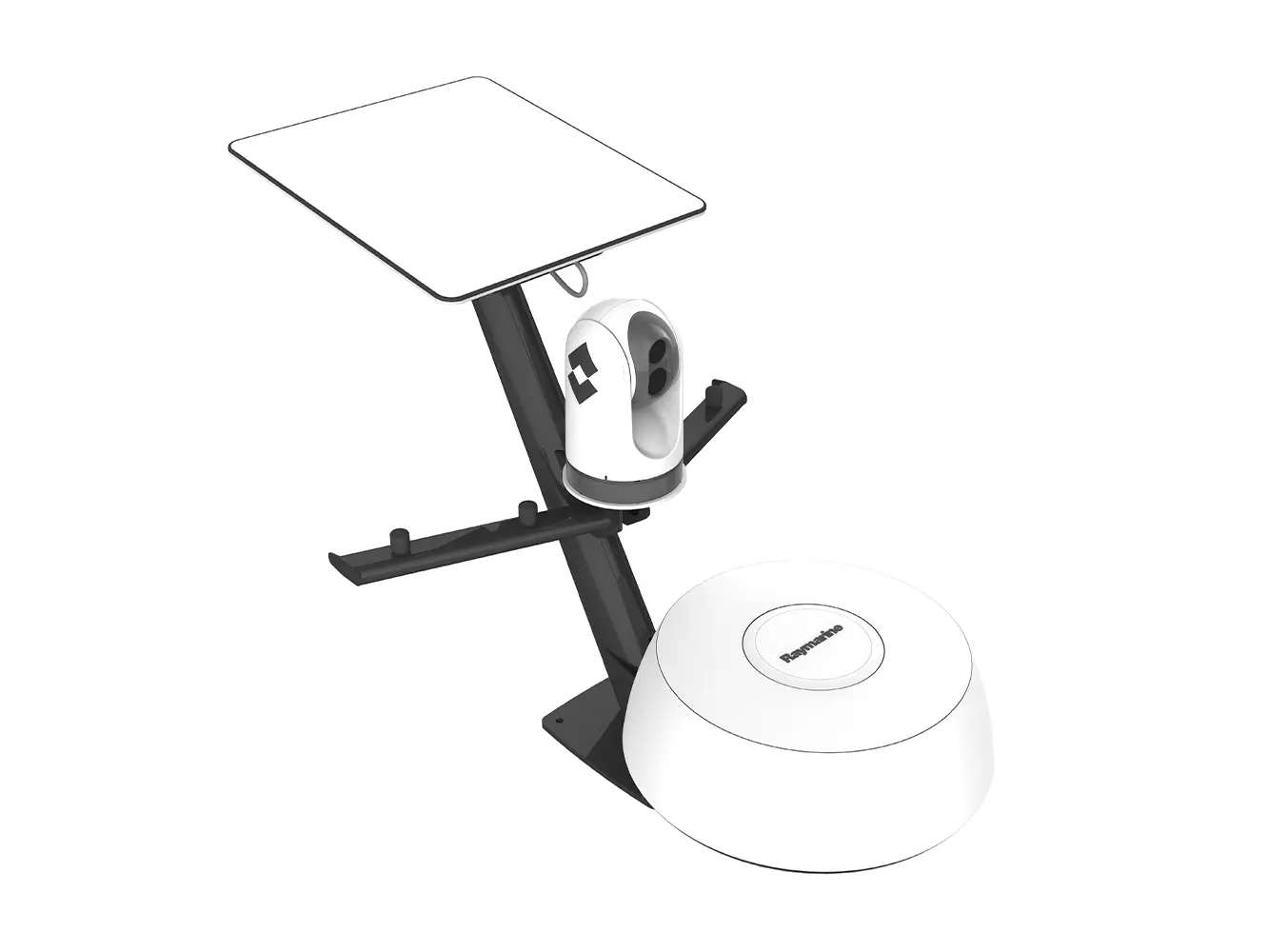

Starlink® Tapered Mast
PTM-R1-SL-BLK
Constructed from the best marine-grade aluminum and designed to fit Starlink's Flat High-Performance Model.
This remake of the classic Scanstrut Tapered Mast Mount has been designed to provide optimal ease of installation while creating a robust and aesthetically pleasing mount adaptable for multiple different technologies on one mounting platform.
East Access Panel
Now made easier to install, the PTM-R1-SL-BLK features access panels under each "wing" to allow for easy access and quick and simple cable routing.
NMEA
The design also focuses on ensuring that NMEA connectors fit within the mast and the wings, eliminating the need to remove the connectors for installation. Suitable for mounting radar, lights, Satcom, Starlink, GPS, VHF, antennas, and cameras seamlessly together.
Compatability
Raymarine, Garmin, Simrad, & Lowrance radar compatible
Testing
The PTM-R1-SL-BLK has undergone a series of rigorous SCA standard tests.
- Mount radar, thermal camera, aerials, and Starlink Flat high-performance in one installation
- Constructed from marine-grade aluminium
- Paint finishes comply with the unique Scanstrut 4-step marine paint system
- Access panels on the underside of the wings for ease of wiring Watertight installation
- Pre-drilled mounting holes allow the radar to fasten straight to the mast with its mounting bolts
- No need to cut the radar’s plugs off to install, simply use the Scanstrut DS30 Cable Seal to ensure a waterproof seal around the radar cables
-
No marine sealant is required
Technical Specification
| Material | Aluminum |
| Height | 820.4mm (32.30”) |
| Colour | Black |
| Integrated Cable Seal | Yes |
| Mounting Gasket Included | Yes |
Installation Guide
The testing standard at Scanstrut is encapsulated by the acronym SCA, which stands for Safe, Certified, and Approved. With over 35 years of experience and expertise in designing products for outdoor use, Scanstrut design products to be able to thrive in the harshest of outdoor environments.
Before any product is released, it must pass through the rigorous testing program which involves assessments in electrical, mechanical, U.V., corrosion, thermal, and waterproof categories. To ensure the highest level of accuracy, testing is conducted both internally and by independent ISO accredited test houses.
This commitment to quality has earned Scanstrut the approval of renowned names such as Mercury Marine, Grady White Boats, Boston Whaler, Winnebago, Airstream and many more. To learn more about the SCA testing program and certifications, get in touch.
On Water Test
Dynamic on water testing in harsh coastal conditions. Mounted to a test vessel to evaluate its performance in rough sea states.
Shaker Table Test
Shock testing in X / Y / Z and +/- axis at 5G increments up to 30G to evaluate the products strength, particularly relevant for our Radar mounts.
Corrosion Test
100-hours of a special formula salt spray that simulates accelerated marine environmental effects on the product.
FEA Analysis
Finite Element Analysis, simulates the behaviour of the design in virtual conditions to allow us to optimise the design before prototyping and physical testing.
IP Test
Water and dust protection under test laboratory conditions to international IP standards. We test between IPX4 (waterjet) and IP68 (submersion).
30G Shock Test
Shock testing at 30G (30 times the force of gravity) to evaluate strength, particularly relevant for our Radar mounts and other powerboat products.
Impact Test
Drop tests to assess the impact of items falling onto our products and ensure they can withstand impacts while being used as intended.
Material Test
Positive Material Identification (PMI) ensures consistent quality of 316 Stainless Steel and Aluminium products. This controls strength and environmental performance.
PROP65
Confirms the exclusion of substances of very high concern in our products, with the aim of protecting human and animal health.Related Products
