SURFACE-SC-CW-02F Qi-Wireless Charge Power Boat

Product Details

The IPX6 waterproof 12/24V Qi-certified waterproof wireless charging range enables wireless charging for the outdoor environment, without the need for phone charging cables. Designed from the ground up, this is the world’s first waterproof wireless charge system created specifically for use on board, with the unique technology housed in an IPX6, fully encapsulated and sealed unit.

Working directly with 12/24V systems, Surface is ideal for life on the move, including sail and powerboats. It is easy to install, anywhere you need your phone, indoors or out. No more wires! Exceeding the latest and highest standards of the Qi wireless protocol, Surface is independently certified to deliver ultra-safe, wireless charging anywhere onboard.

Our new upgraded 10W chargers are up to 60% faster and have been designed for the latest generation of power-hungry devices and apps.

Our improvements don’t just stop there, now featuring easier phone alignment with a larger charging area, and electrical componentry that has been enhanced to significantly improve your phone's charge times, even in the harshest outdoor environments.With the same great look, Surface is tried and tested in all corners of the globe in all weathers, and conditions.

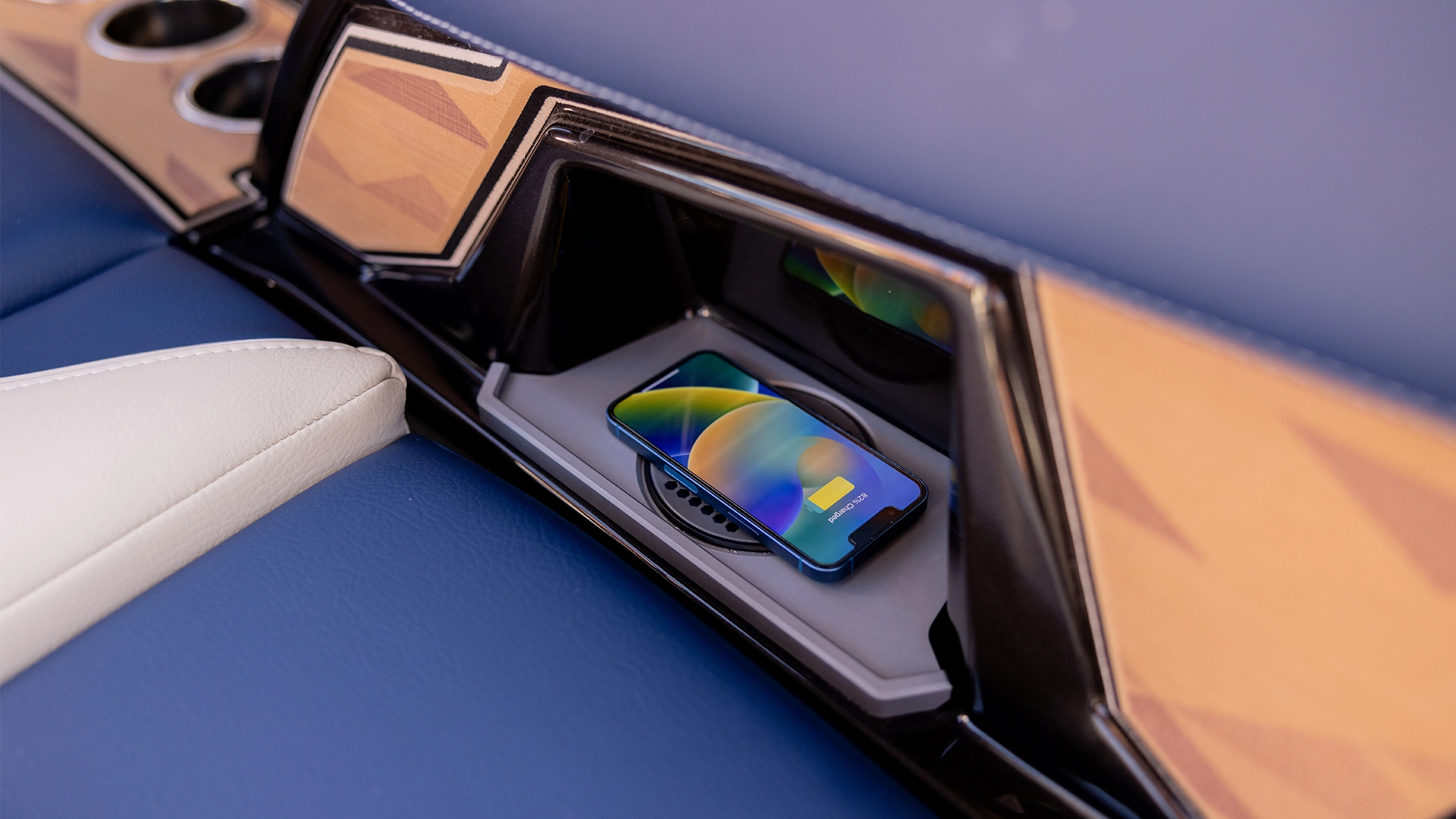

Low-profile, flush-mounted charge pad with an ultra-grippy, non-slip surface, a contemporary look with two-tone color, designed to complement modern interiors and exteriors. Designed to fit to any smooth surface, indoors or out.

Key Features

Foreign object detection system
Thermal management system
IPX6 waterproof sealed unit
High friction non-slip pad
Qi-certified
UV stable Marine-grade materials
Easy install - no sealant required
10W Fast Charging
IPX6 Waterproof
Low-profile, flush-mounted charge pad
Ultra grippy, non-slip surface
Designed to fit any smooth surface
A contemporary look with a two-tone color

Electrical Information

Input Voltage Range	10-30V DC (12/24V system)
Input current max	2A
Output Power	10W (9V,1.1A)
Standby Power Draw	< 0.2W
Certification	Qi, CE, UKCA, FCC, ROHS, C-Tick, UN ECE R10, IC, PSE Certified

Installation Guide

Compatibility Checker

FAQs

SCA Testing

The testing standard at Scanstrut is encapsulated by the acronym SCA, which stands for Safe, Certified, and Approved. With over 35 years of experience and expertise in designing products for outdoor use, Scanstrut design products to be able to thrive in the harshest of outdoor environments.

Before any product is released, it must pass through the rigorous testing program which involves assessments in electrical, mechanical, U.V., corrosion, thermal, and waterproof categories. To ensure the highest level of accuracy, testing is conducted both internally and by independent ISO accredited test houses.

This commitment to quality has earned Scanstrut the approval of renowned names such as Mercury Marine, Grady White Boats, Boston Whaler, Winnebago, Airstream and many more. To learn more about the SCA testing program and certifications, get in touch.

The world’s No.1 wireless charging standard, this ensures our chargers are built to an extreme level of safety and ensures compatibility of all phones.

IP Test

Water and dust protection under test laboratory conditions to international IP standards. We test between IPX4 (waterjet) and IP68 (submersion).

Accelerated UV Material Test

We accelerate the effects of UV exposure to replicate our products usage in extreme tropical climates. We do this to ensure parts do not become brittle, discolour or fail over time.

Cable Bend Test

Electrical products are bolted into a specially designed automated jig to mechanically bend the cable -45° to +45° for 3000 cycles. This ensures cables will not fail even after prolonged use.

Thermal Chamber Test

Laboratory chamber running from -40°C (-40°F) to +85°C (185°F) and back to -40°C (-40°F) for 120 cycles, this accelerates material ageing to simulate real world environment.

Cable Twist Test

Electrical products are bolted into a specially designed automated jig to mechanically twist the cable -45° to +45° for 3000 cycles. This ensures cables will not fail even after prolonged use.

Temperature Chamber Test

Product placed in a laboratory chamber at high temperatures to ensure our products continue to perform as designed.

Corrosion Test

100-hours of a special formula salt spray that simulates accelerated marine environmental effects on the product.

On Water Charge Test

Using real life on water temperature data to ensure devices will continue to charge at an acceptable speed in extreme cold and hot temperatures.

On Water Testing Global

Similar to SCA standard on water testing, however we select locations and vessels for more varied and challenging environmental conditions.

FEA Analysis

Finite Element Analysis, simulates the behaviour of the design in virtual conditions to allow us to optimise the design before prototyping and physical testing.

C Tick

An identification trademark registered to the ACMA indicates that the equipment complies with the relevant EMC standard.

CE / UKCA

Signifies that our products have been assessed to meet high safety, health, and environmental protection requirements.

ECE R10

The global automotive standard recognised by RV and Marine OEMs to ensure electrical devices are suitable to use in automotive builds.

FCC

A legal requirement to sell any communication device (RF) in the United States of America.

Humidity Chamber Test

Similar to our brutal SCA Thermal Chamber Test, but we’ve added humidity to make it even more punishing.

Material Test

Positive Material Identification (PMI) ensures consistent quality of 316 Stainless Steel and Aluminium products. This controls strength and environmental performance.
