EDGE-SC-CW-05G Qi-Wireless Charge Power Boat

NEW

Edge 15W

SC-CW-05G

Dock. Charge. Connect.

Edge 15W securely holds and wirelessly charges your phone even in the toughest outdoor conditions. Now you can keep your phone in sight, fully charged and ready to go.

74.0mm (2.9") W x 196.0mm (7.72") H x 74mm (2.9") D
15W Charger, IPX6 Waterproof
Rotate your phone through 90 degrees
Switch up your phones viewing angle on the move
Secure 3-point fixing system
Perfect for areas tight on space or any vehicle working outside in the elements,
Footprint of just 50mm (1.96”) diameter
Fits Apple, Samsung, Google and other major brands

5 Year Warranty

Request a Callback

Free Shipping
on orders over $100

30 Day Returns
Easy returns & exchanges

Trusted by Industry Leaders
Chosen by 300+ boat and RV builders worldwide

Product Details

The IPX6 waterproof 12/24V Qi certified waterproof wireless charging range enables wireless charging for the outdoor environment, without the need for phone charging cables. Designed from the ground up, this is the world’s first waterproof wireless charge system created specifically for use onboard, with the unique technology is housed in an IPX6, fully encapsulated and sealed unit.

Right up to the Edge: with the smallest footprint, Edge now means you have even more choice of how and where you install your phone mount and charger combo. Crowded consoles, side-mounting, flat and vertical surfaces are all suitable.

Put your phone on its Edge: Rotate your phone from portrait to landscape to view your favourite navigation app or simply fine-tune the position for the optimum viewing angle.

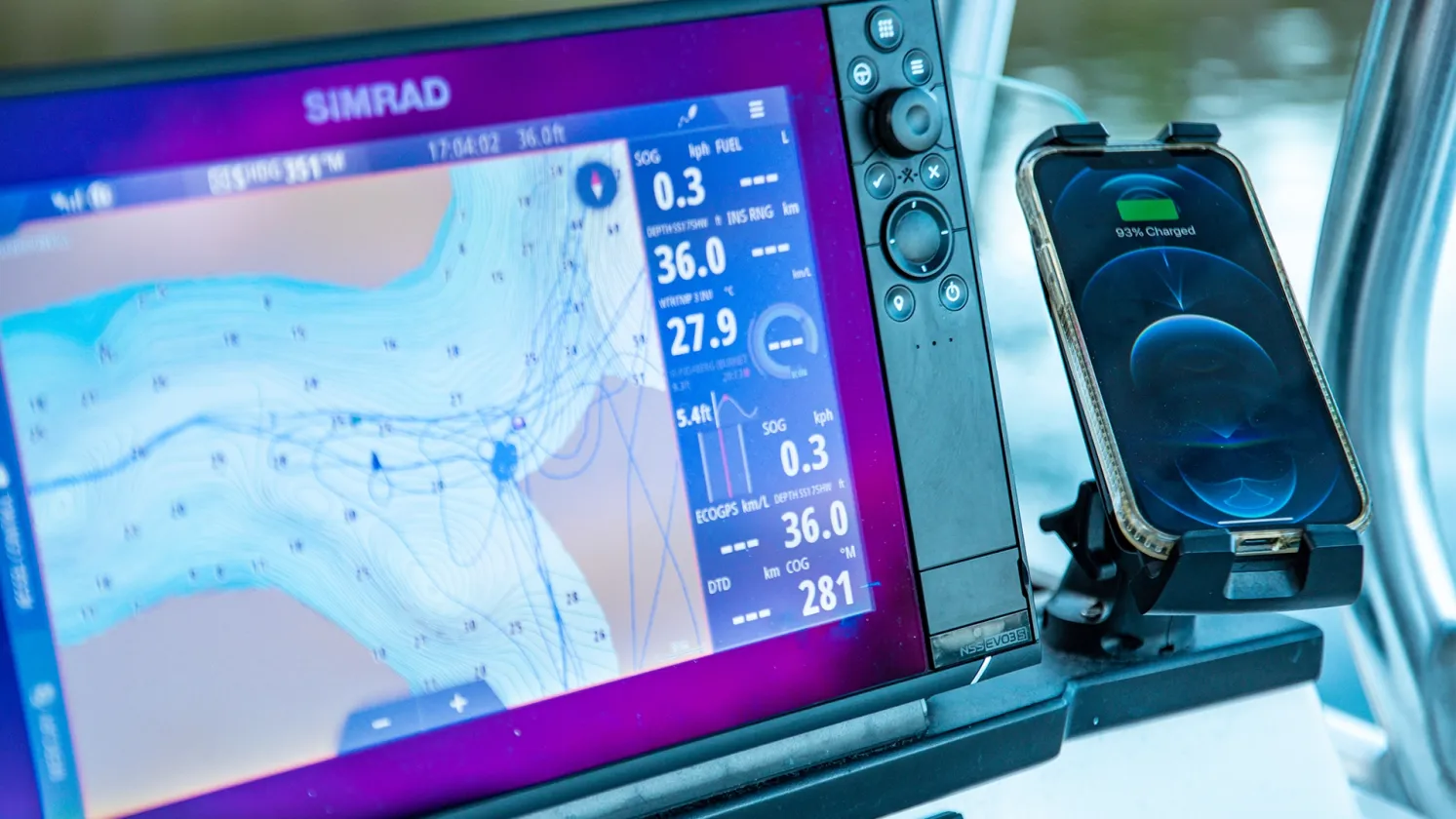

12/24V and IPX6 waterproof, Edge is perfect for boat consoles tight on space or any vehicle working outside in the elements, with simple one-handed operation you can easily dock and instantly start charging your phone. No cable required.

The self-aligning, high-grip jaws accommodate all wireless charging phones and securely hold your device in the optimum charging position every time. Couple this with the innovative adjustable body of Edge and you’ll have your phone fully charged, right where you need it.

Install Edge 15W on any surface: a secure 3-point fixing system and a footprint of just 50mm (1.96”) diameter maximize your choice of location and a watertight cable pass-through completes the install.

Our improvements don’t just stop there, now featuring easier phone alignment with a larger charging area, and electrical componentry that has been enhanced to significantly improve your phone's charge times, even in the harshest outdoor environments.

With the same great look, Edge is tried and tested in all corners of the globe in all weathers, and conditions.

Featuring Qi-certified wireless technology and a “Smart” LED that indicates when your phone is charging. Throw in foreign object detection and thermal cut-off and you’re guaranteed safe, reliable charging in all environments. Charging is also possible through non-metallic, waterproof cases.

Testing and certification
Edge has been subjected to our harshest environmental, thermal, vibration, impact and on-water testing programs. This is combined with our world-renowned expertise in waterproofing technologies, UV stabilization techniques and premium grade materials to ensure Edge is the best and only choice to make when it comes to mounting and wirelessly charging your phone outdoors.

International certifications include: Qi, CE, FCC and UN-ECE R10.

Key Features

15W Fast Charging
IPX6 Waterproof
Qi Certified
Mount & charge
High friction grip
Rotate your phone through 90 degrees
Switch up your phones viewing angle on the move

Electrical Information

Input Voltage Range

10-30V DC (12/24V system)

Input current max

Output Power

5W/7.5W/10W/15W (dependant on phone model)

Standby Power

Input Voltage (V)	Standby Power (W)
12	<0.9W
24	<1.1W

Cable AWG

20 AWG

Cable Length

500mm (19.69")

Certification

Qi, CE, FCC, ROHS,E24, C-Tick, PSE Certified

Technical

Compatibility Checker

FAQs

SCA Testing

The testing standard at Scanstrut is encapsulated by the acronym SCA, which stands for Safe, Certified, and Approved. With over 35 years of experience and expertise in designing products for outdoor use, Scanstrut design products to be able to thrive in the harshest of outdoor environments.

Before any product is released, it must pass through the rigorous testing program which involves assessments in electrical, mechanical, U.V., corrosion, thermal, and waterproof categories. To ensure the highest level of accuracy, testing is conducted both internally and by independent ISO accredited test houses.

This commitment to quality has earned Scanstrut the approval of renowned names such as Mercury Marine, Grady White Boats, Boston Whaler, Winnebago, Airstream and many more. To learn more about the SCA testing program and certifications, get in touch.

The world’s No.1 wireless charging standard, this ensures our chargers are built to an extreme level of safety and ensures compatibility of all phones.

IP Test

Water and dust protection under test laboratory conditions to international IP standards. We test between IPX4 (waterjet) and IP68 (submersion).

Accelerated UV Material Test

We accelerate the effects of UV exposure to replicate our products usage in extreme tropical climates. We do this to ensure parts do not become brittle, discolour or fail over time.

Cable Bend Test

Electrical products are bolted into a specially designed automated jig to mechanically bend the cable -45° to +45° for 3000 cycles. This ensures cables will not fail even after prolonged use.

Thermal Chamber Test

Laboratory chamber running from -40°C (-40°F) to +85°C (185°F) and back to -40°C (-40°F) for 120 cycles, this accelerates material ageing to simulate real world environment.

Cable Twist Test

Electrical products are bolted into a specially designed automated jig to mechanically twist the cable -45° to +45° for 3000 cycles. This ensures cables will not fail even after prolonged use.

Temperature Chamber Test

Product placed in a laboratory chamber at high temperatures to ensure our products continue to perform as designed.

Corrosion Test

100-hours of a special formula salt spray that simulates accelerated marine environmental effects on the product.

On Water Charge Test

Using real life on water temperature data to ensure devices will continue to charge at an acceptable speed in extreme cold and hot temperatures.

On Water Testing Global

Similar to SCA standard on water testing, however we select locations and vessels for more varied and challenging environmental conditions.

FEA Analysis

Finite Element Analysis, simulates the behaviour of the design in virtual conditions to allow us to optimise the design before prototyping and physical testing.

C Tick

An identification trademark registered to the ACMA indicates that the equipment complies with the relevant EMC standard.

CE / UKCA

Signifies that our products have been assessed to meet high safety, health, and environmental protection requirements.

ECE R10

The global automotive standard recognised by RV and Marine OEMs to ensure electrical devices are suitable to use in automotive builds.

FCC

A legal requirement to sell any communication device (RF) in the United States of America.

Humidity Chamber Test

Similar to our brutal SCA Thermal Chamber Test, but we’ve added humidity to make it even more punishing.

Material Test

Positive Material Identification (PMI) ensures consistent quality of 316 Stainless Steel and Aluminium products. This controls strength and environmental performance.
