COVE SC-CW-10GT Qi-Wireless 3-coil Phone Charging Pocket

Product Details

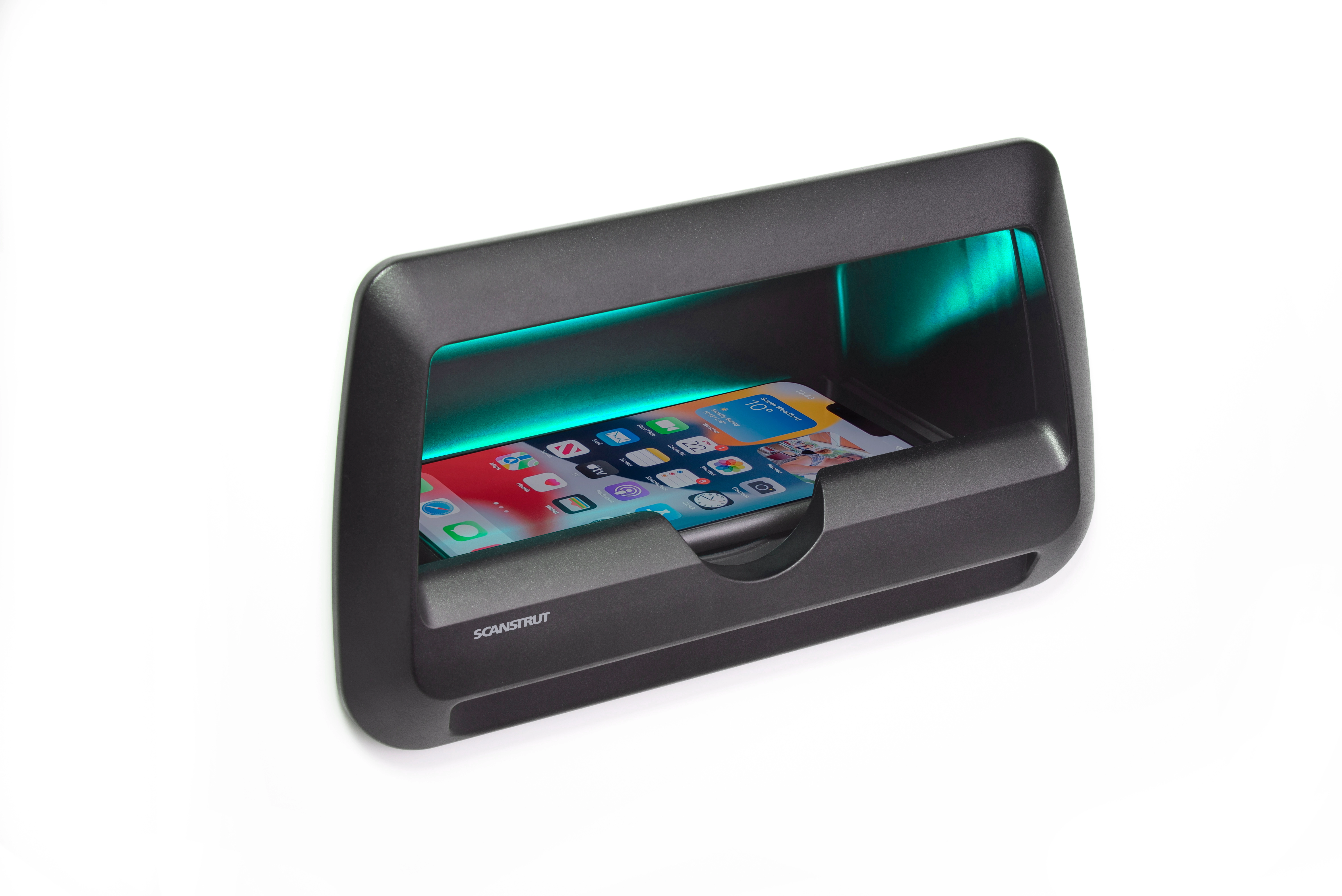

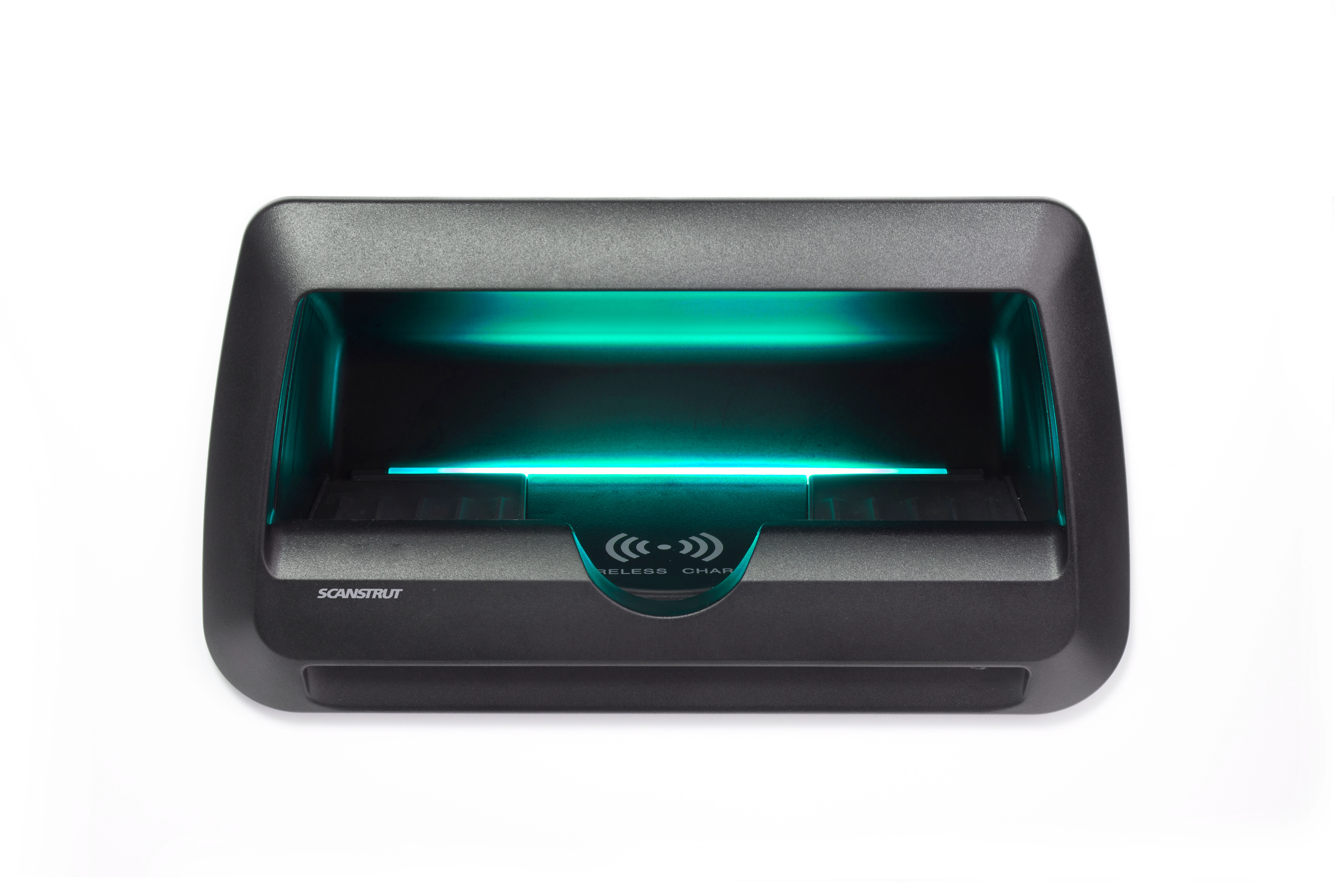

This updated version of Cove has a 3-coil charging system. This is a game-changer for outdoor waterproof charging, with three overlapping charging coils that maximize performance, ensuring reliable charging from various phone placements. The front lip with an easy-access thumb bevel acts as a safety barrier, making sure your phone stays inside!

The intelligent electronics ensure optimal charging by selecting the best coil based on the phone's location. The built-in heat management system also adjusts charging speed based on ambient and phone temperature. This charger is tailored for those seeking uninterrupted charging during outdoor adventures, offering a reliable and efficient solution for powering devices on the go.

Intelligent charging:

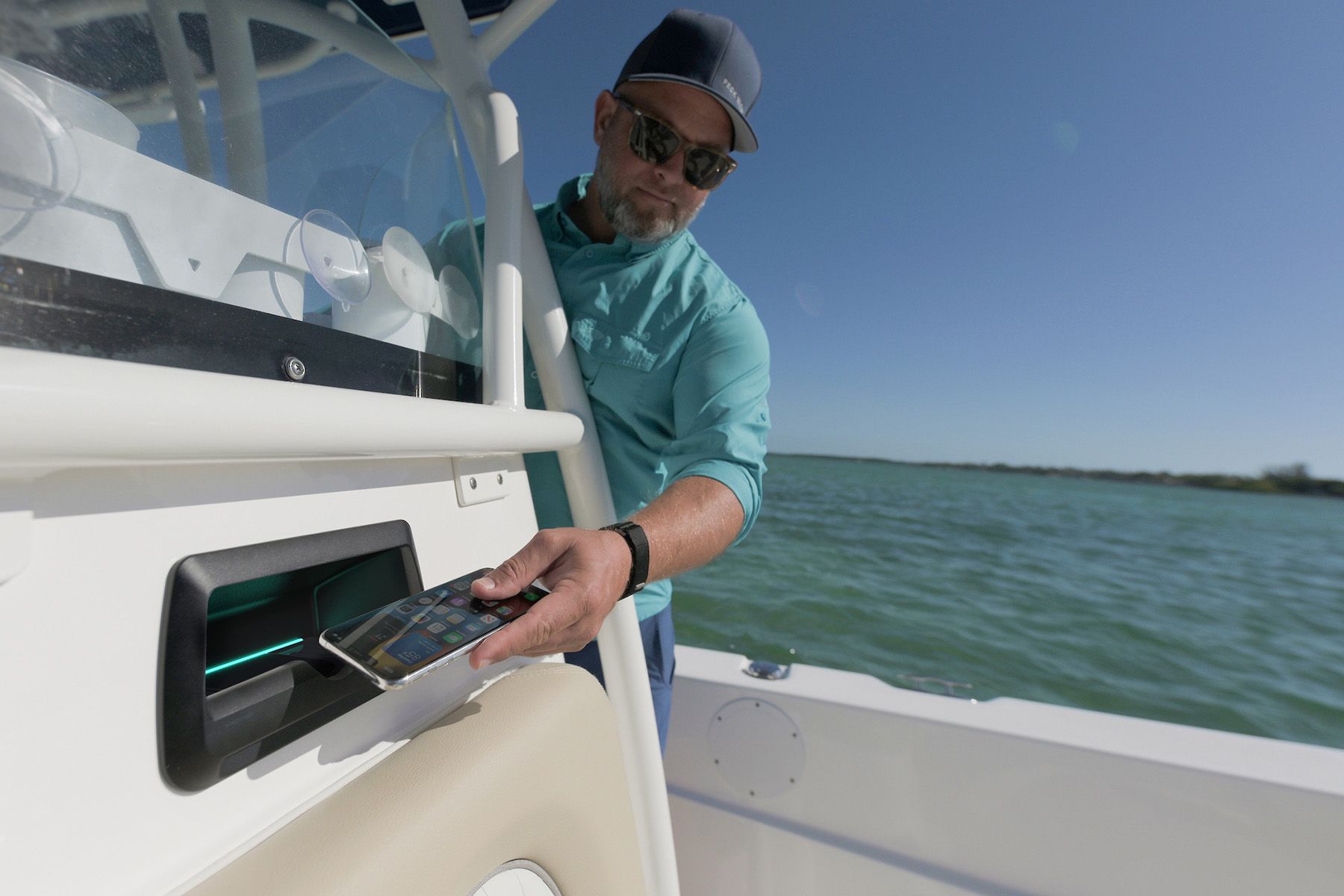

Even when at sea or driving over rough terrain, the intelligent charging features are designed to mirror the movement of your phone, to ensure a constant charge, no matter the adventure or the placement of the phone on the charger.

Three-coil system:
With a three-coil system that overlaps, there is NO DEAD SPACE, resulting in the most efficient & most amount of power regardless of the phone's position.

Hot climates:
No problem. With a larger cavity the electronics are designed for thermal management by efficiently dissipating heat, this charger will perform better than other chargers in 30°C (86°F). It will also monitor your phone's heat, adjusting the power output to ensure it does not overheat, helping prolong the health of your phone!

Simple Installation:
One easy cut into your chosen mounting location,4 screws supplied for fixing and a front fascia to leave the finished result clean and uncluttered – you're now ready to Store. Charge. Connect!

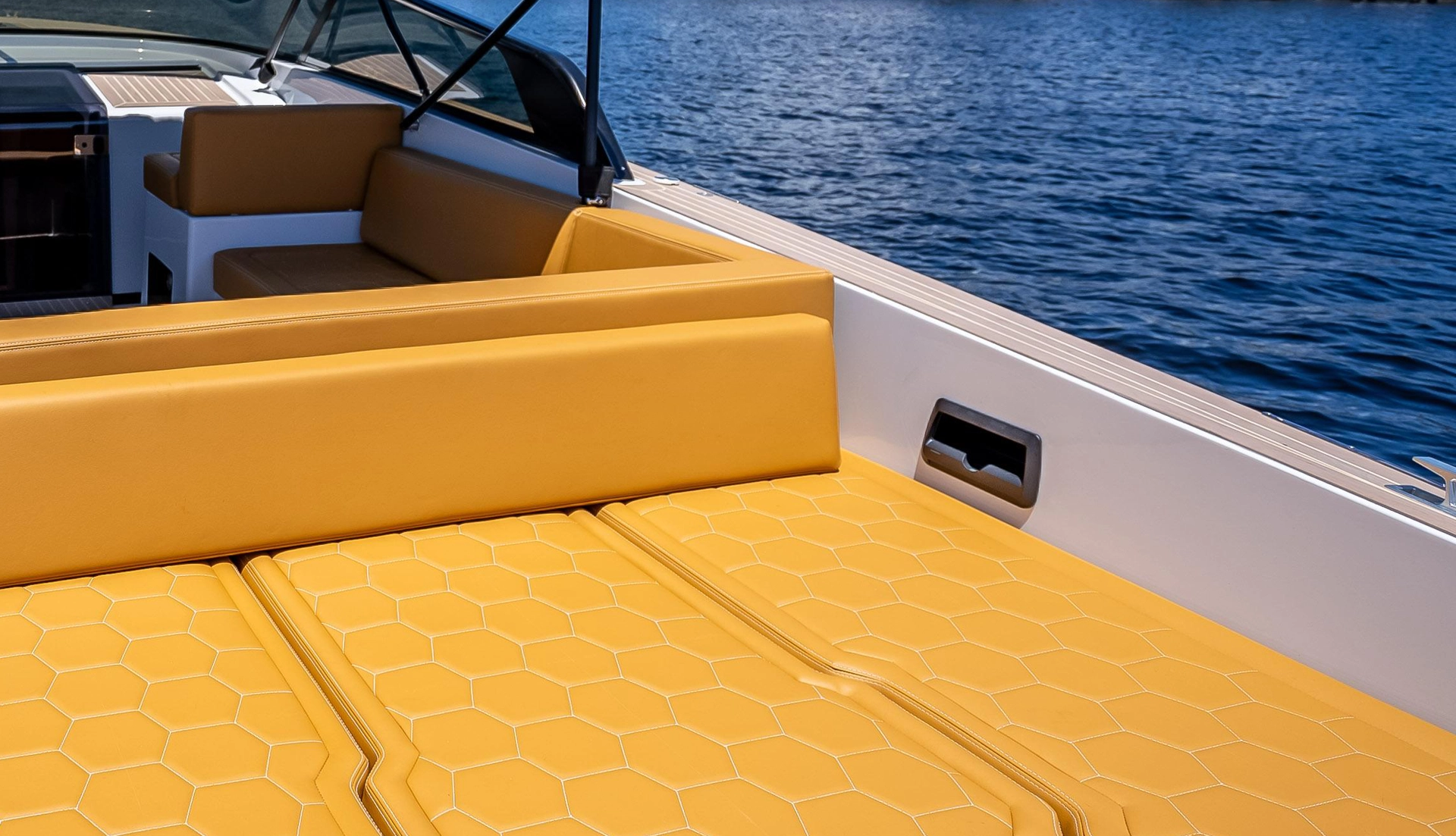

Rounded corners and tapered front design eliminate all snagging risks, making it possible to install in high-traffic areas of the boat where phone charging/storage until now has been impossible.

LED light system:
Designed to eliminate the need to lift your phone off the charger, the LED lights are a fast visual method for seeing when power is being delivered to your phone. Additionally, the LED on the base acts as a rear installation light, making the fitting process as quick and easy as possible.

Red light shows: Charger is in standby mode.
White light shows: Phone is charging.

Wash Down
Worried about getting water inside? No problem! Cove automatically drains either out of the front or through the self-drill drains out of the rear of the housing with the option to use a push-fit drain tube to route water away.

Dual Functionally
Featuring an intelligent Foreign Object Detection, Cove is perfect for storing your other personal items such as wallets and keys as the charger will only begin to charge when a phone is placed on the mat – nothing else!

Key features:

12/24V
15W Charger
IPX6 Waterproof
Qi compatible
Store and Charge
Input Voltage Range: 10-30V DC (12/24V system)
Three overlapping charging coils maximize performance
Reverse polarity protection
No alignment is needed, throw your phone into the charger and your phone will always charge!
Uninterrupted charging during outdoor adventures
Rear installation light, for testing power & correct wiring
LED light acts as a quick visual guide to show phone is charging
Simple one-cut installation
Foreign object detection
5-year warranty

Charger Electrical Information

Input Voltage Range	10-30V DC (12/24V system)
Input current max	2A
Output Power	15W (12V 1.25A)
Standby Power Draw	<1.2W
Certification	CE, UKCA, FCC, ROHS, C-Tick, UN ECE R10, E24, PSE Certified

RGB LED Electrical Information

Input voltage	9-15V DC
Input current max	0.2A
Standby power draw	<0.0W

Installation Guide

Compatibility Checker

SCA Testing

The testing standard at Scanstrut is encapsulated by the acronym SCA, which stands for Safe, Certified, and Approved. With over 35 years of experience and expertise in designing products for outdoor use, Scanstrut design products to be able to thrive in the harshest of outdoor environments.

Before any product is released, it must pass through the rigorous testing program which involves assessments in electrical, mechanical, U.V., corrosion, thermal, and waterproof categories. To ensure the highest level of accuracy, testing is conducted both internally and by independent ISO accredited test houses.

This commitment to quality has earned Scanstrut the approval of renowned names such as Mercury Marine, Grady White Boats, Boston Whaler, Winnebago, Airstream and many more. To learn more about the SCA testing program and certifications, get in touch.

The world’s No.1 wireless charging standard, this ensures our chargers are built to an extreme level of safety and ensures compatibility of all phones.

IP Test

Water and dust protection under test laboratory conditions to international IP standards. We test between IPX4 (waterjet) and IP68 (submersion).

Accelerated UV Material Test

We accelerate the effects of UV exposure to replicate our products usage in extreme tropical climates. We do this to ensure parts do not become brittle, discolour or fail over time.

Cable Bend Test

Electrical products are bolted into a specially designed automated jig to mechanically bend the cable -45° to +45° for 3000 cycles. This ensures cables will not fail even after prolonged use.

Thermal Chamber Test

Laboratory chamber running from -40°C (-40°F) to +85°C (185°F) and back to -40°C (-40°F) for 120 cycles, this accelerates material ageing to simulate real world environment.

Cable Twist Test

Electrical products are bolted into a specially designed automated jig to mechanically twist the cable -45° to +45° for 3000 cycles. This ensures cables will not fail even after prolonged use.

Temperature Chamber Test

Product placed in a laboratory chamber at high temperatures to ensure our products continue to perform as designed.

Corrosion Test

100-hours of a special formula salt spray that simulates accelerated marine environmental effects on the product.

On Water Charge Test

Using real life on water temperature data to ensure devices will continue to charge at an acceptable speed in extreme cold and hot temperatures.

On Water Testing Global

Similar to SCA standard on water testing, however we select locations and vessels for more varied and challenging environmental conditions.

FEA Analysis

Finite Element Analysis, simulates the behaviour of the design in virtual conditions to allow us to optimise the design before prototyping and physical testing.

C Tick

An identification trademark registered to the ACMA indicates that the equipment complies with the relevant EMC standard.

CE / UKCA

Signifies that our products have been assessed to meet high safety, health, and environmental protection requirements.

ECE R10

The global automotive standard recognised by RV and Marine OEMs to ensure electrical devices are suitable to use in automotive builds.

FCC

A legal requirement to sell any communication device (RF) in the United States of America.

Humidity Chamber Test

Similar to our brutal SCA Thermal Chamber Test, but we’ve added humidity to make it even more punishing.

Material Test

Positive Material Identification (PMI) ensures consistent quality of 316 Stainless Steel and Aluminium products. This controls strength and environmental performance.
