Starlink® Compatible

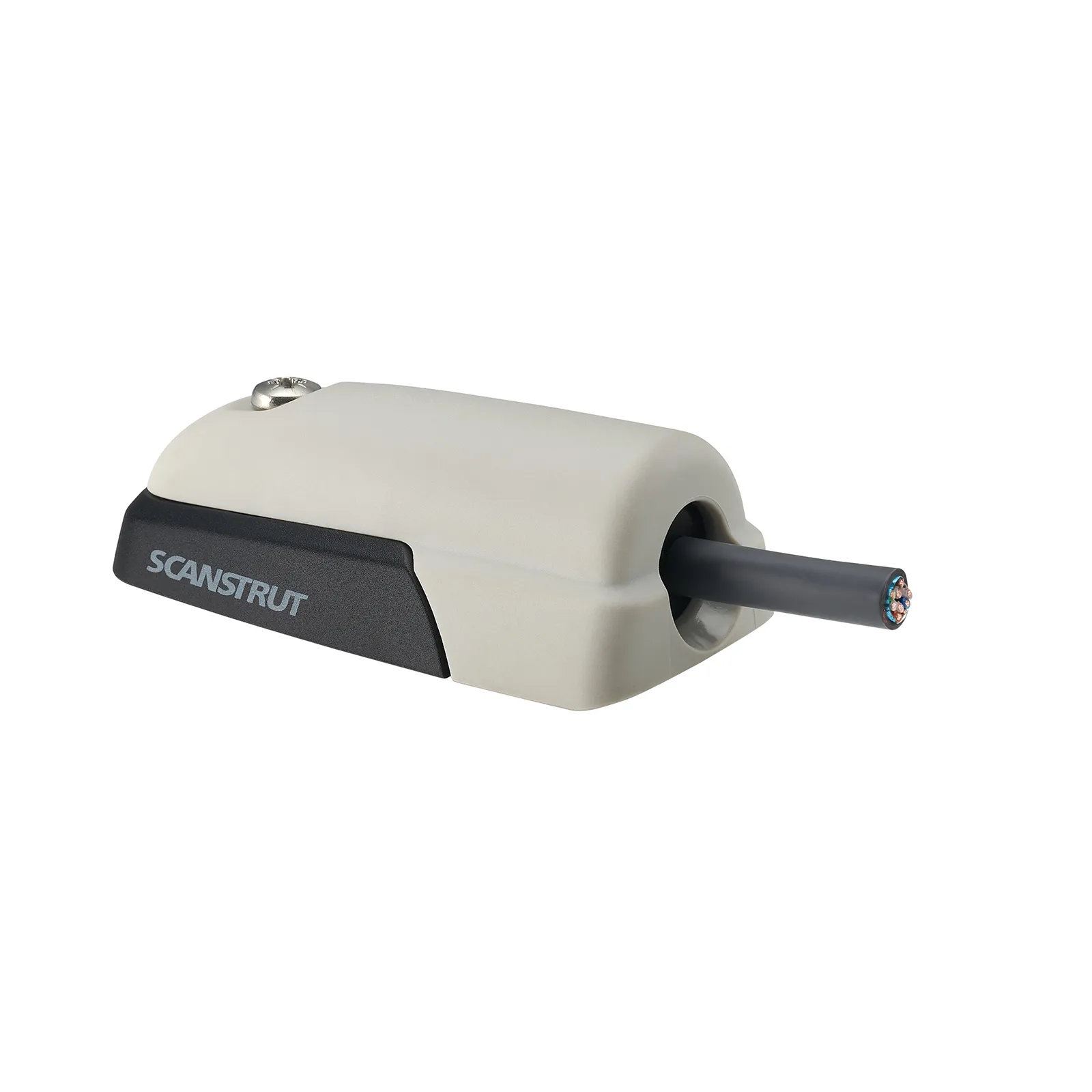

Starlink® Compatible Horizontal Cable Seal - Grey
DS-HSL-01

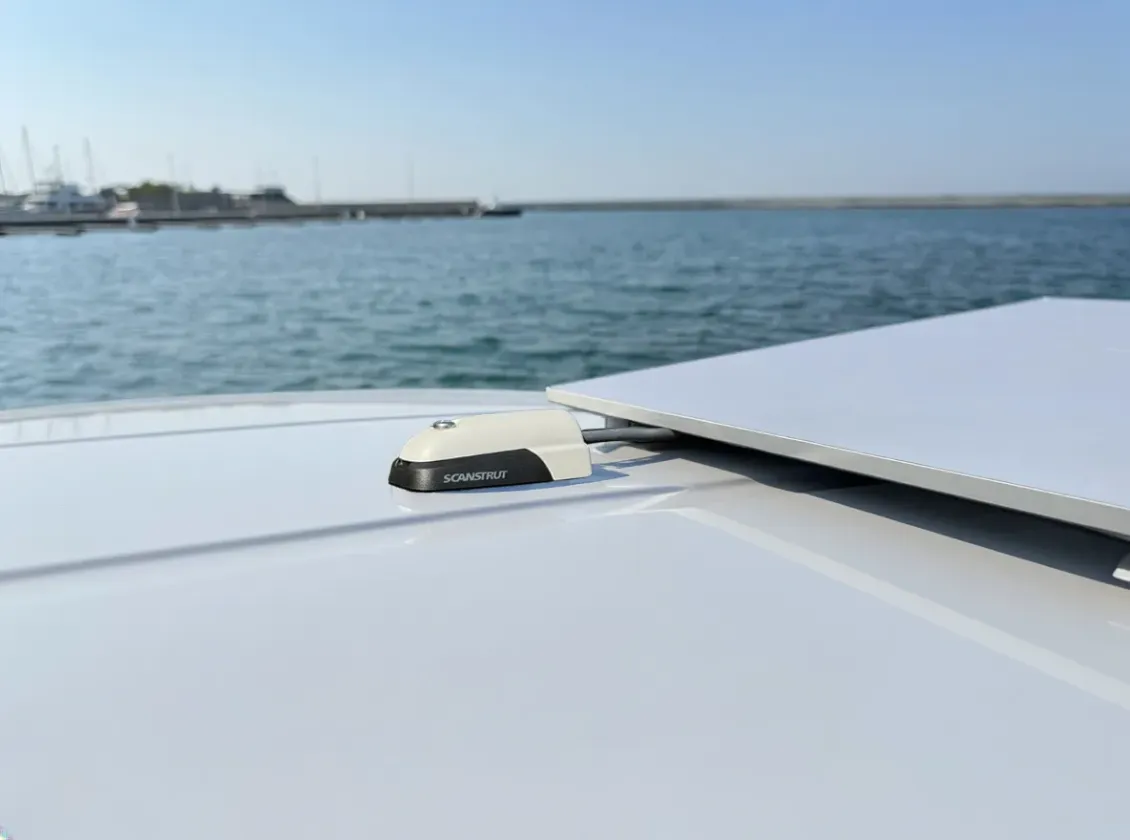

Designed for a range of Starlink®, NMEA and RJ45 cable and connector diameters, the DS-HSL-01 Horizontal Cable Seal provides a clean, reliable cable routing solution for rooftop installations.

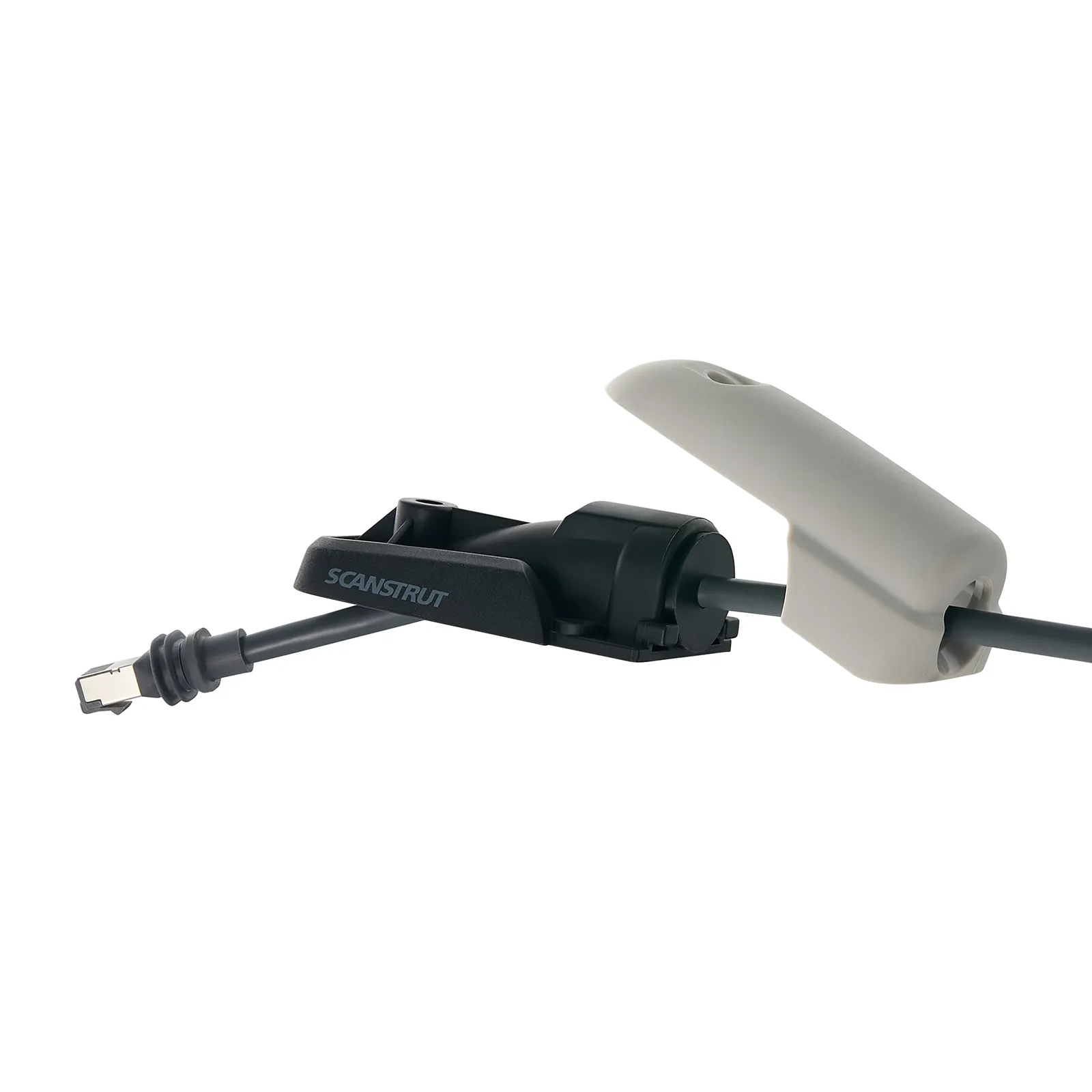

The supplied split pre-drilled bungs allow cables with connectors already attached to pass through the seal, removing the need to cut and re-terminate connectors during installation. Multiple bung sizes and a self-drill option allow installers to easily customise the fit while maintaining a watertight seal.

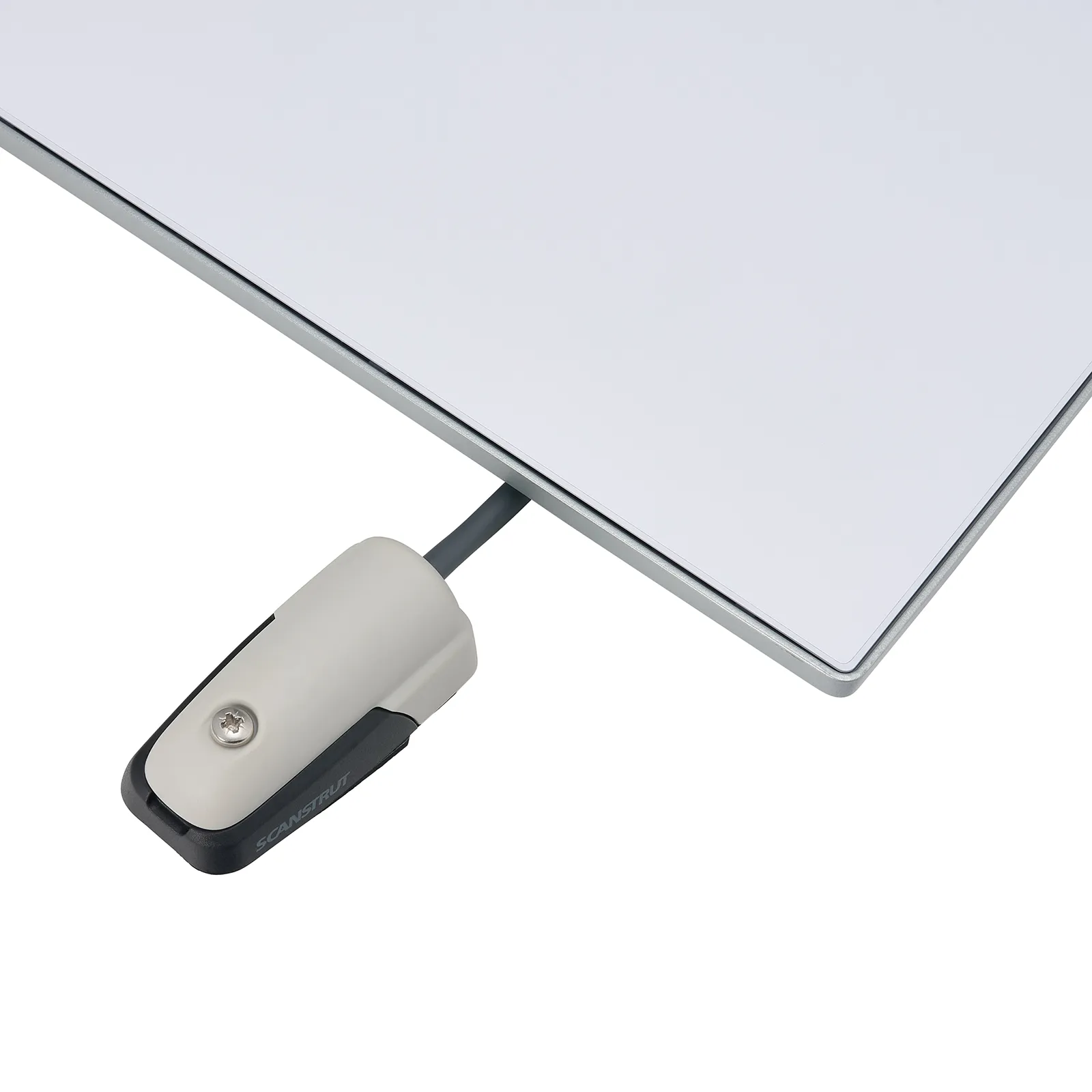

Based on our most popular horizontal cable seal design, the low-profile construction is impact-resistant and offers additional protection against water ingress. The horizontal cable entry keeps the cable exit as close as possible to the mounting surface, creating a neat, professional installation.
Suitable for cables ranging from 2–8 mm (0.07”–0.31”), the DS-HSL-01 is ideal not only for Starlink installations but also for solar panels, light bars, lighting and other rooftop electronics.
Marine Grade Materials
Manufactured from premium UV-stable, hard-wearing materials, the DS-HSL-01 is built for long-term outdoor performance. Rated IP68, it delivers a guaranteed 100% watertight seal in demanding marine and outdoor environments.
Easy Installation
Captive nuts ensure a fast and reliable installation while allowing repeat fitting if required. The easy-fit cable routing system helps reduce installation time and delivers a clean, professional finish.
Compatibility Without Removing Connectors
Starlink:
- Starlink Performance (Gen 3)
- Starlink Enterprise (Gen 3)
- Starlink Standard (Gen 3)
- Starlink Mini
Other:
- NMEA cables
- RJ45 cables
Technical Specification
| Material | High Impact Plastic |
| Height | 29mm (1.14”) |
| Length | 88mm (3.46”) |
| Colour | Black or Grey |
| Cable Compatibility | Starlink Performance (Gen 3), Starlink Enterprise (Gen 3), Standard (Gen 3), Mini, NMEA cables, RJ45 cables |
| Max Connector size | 16mm (0.62”) |

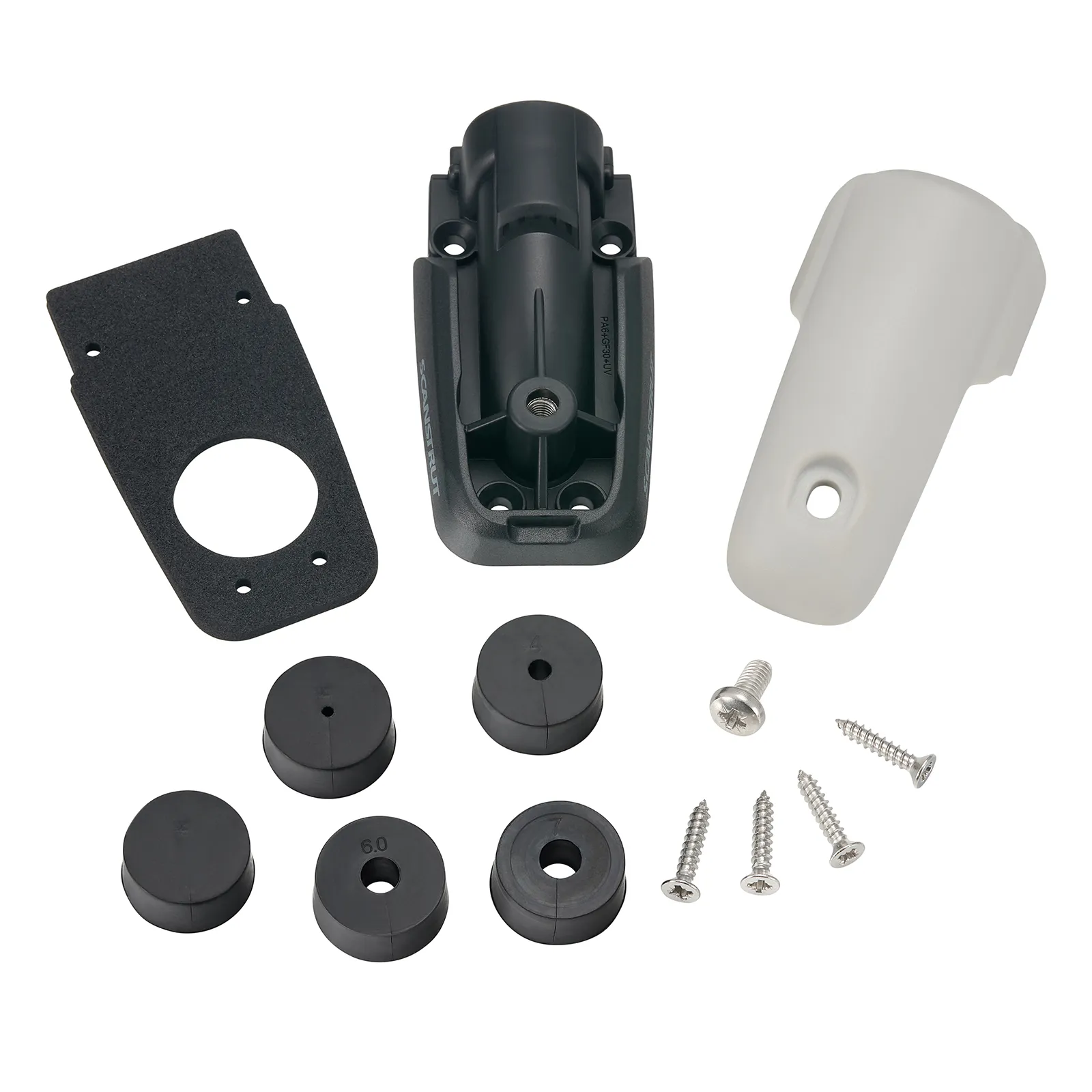

| Bungs | 2-3mm (0.07-0.11”) / 4-5mm (0.15-0.19”) / 6-7mm (0.23-0.28”) / 7-8mm (0.28-0.31”) / 1 x Self Drill |
Installation Guide
The testing standard at Scanstrut is encapsulated by the acronym SCA, which stands for Safe, Certified, and Approved. With over 35 years of experience and expertise in designing products for outdoor use, Scanstrut design products to be able to thrive in the harshest of outdoor environments.
Before any product is released, it must pass through the rigorous testing program which involves assessments in electrical, mechanical, U.V., corrosion, thermal, and waterproof categories. To ensure the highest level of accuracy, testing is conducted both internally and by independent ISO accredited test houses.
This commitment to quality has earned Scanstrut the approval of renowned names such as Mercury Marine, Grady White Boats, Boston Whaler, Winnebago, Airstream and many more. To learn more about the SCA testing program and certifications, get in touch.
Corrosion Test
100-hours of a special formula salt spray that simulates accelerated marine environmental effects on the product.
FEA Analysis
Finite Element Analysis, simulates the behaviour of the design in virtual conditions to allow us to optimise the design before prototyping and physical testing.
Material Test
Positive Material Identification (PMI) ensures consistent quality of 316 Stainless Steel and Aluminium products. This controls strength and environmental performance.
Accelerated UV Material Test
We accelerate the effects of UV exposure to replicate our products usage in extreme tropical climates. We do this to ensure parts do not become brittle, discolour or fail over time.
PROP65
Confirms the exclusion of substances of very high concern in our products, with the aim of protecting human and animal health.
IP Test
Water and dust protection under test laboratory conditions to international IP standards. We test between IPX4 (waterjet) and IP68 (submersion).Related Products
