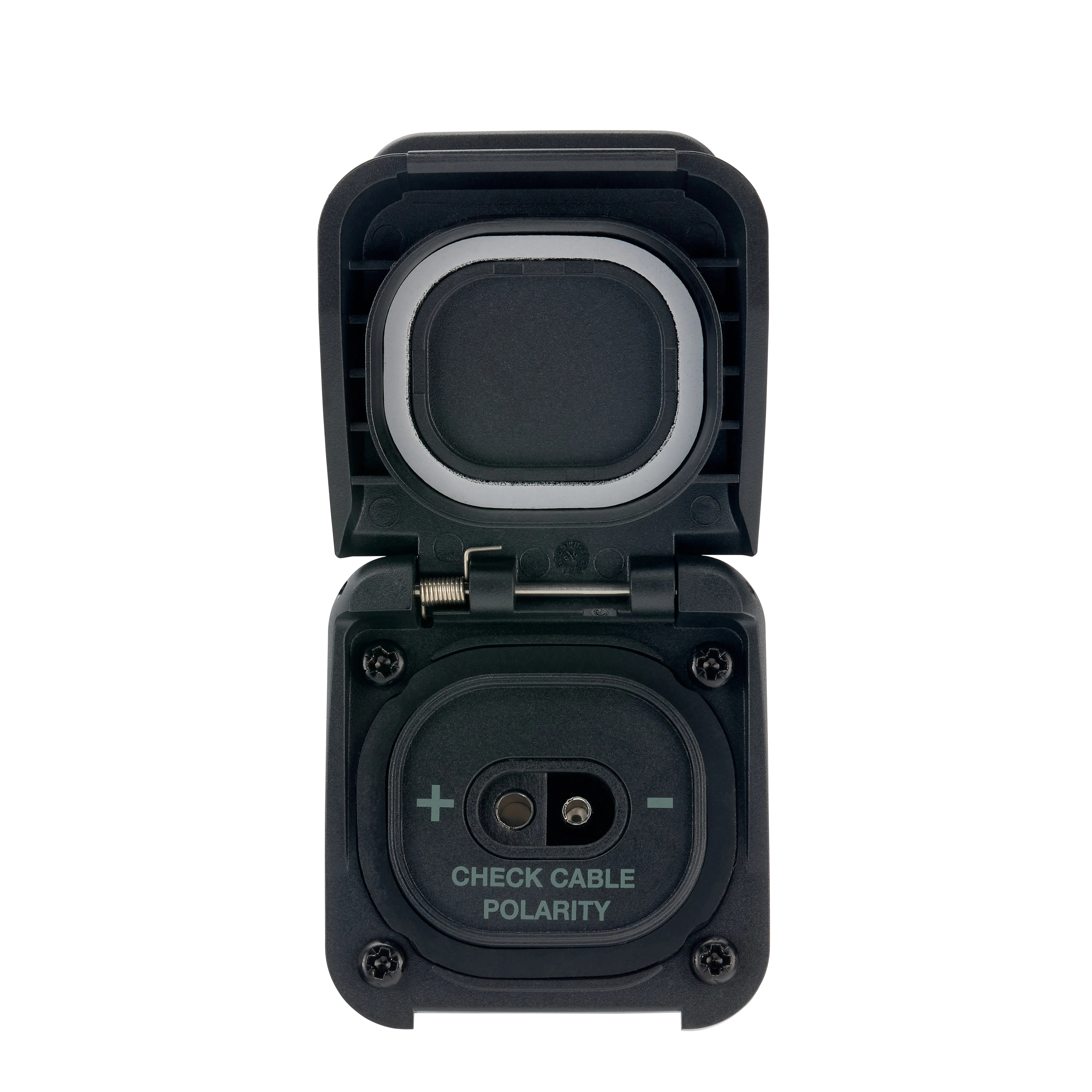

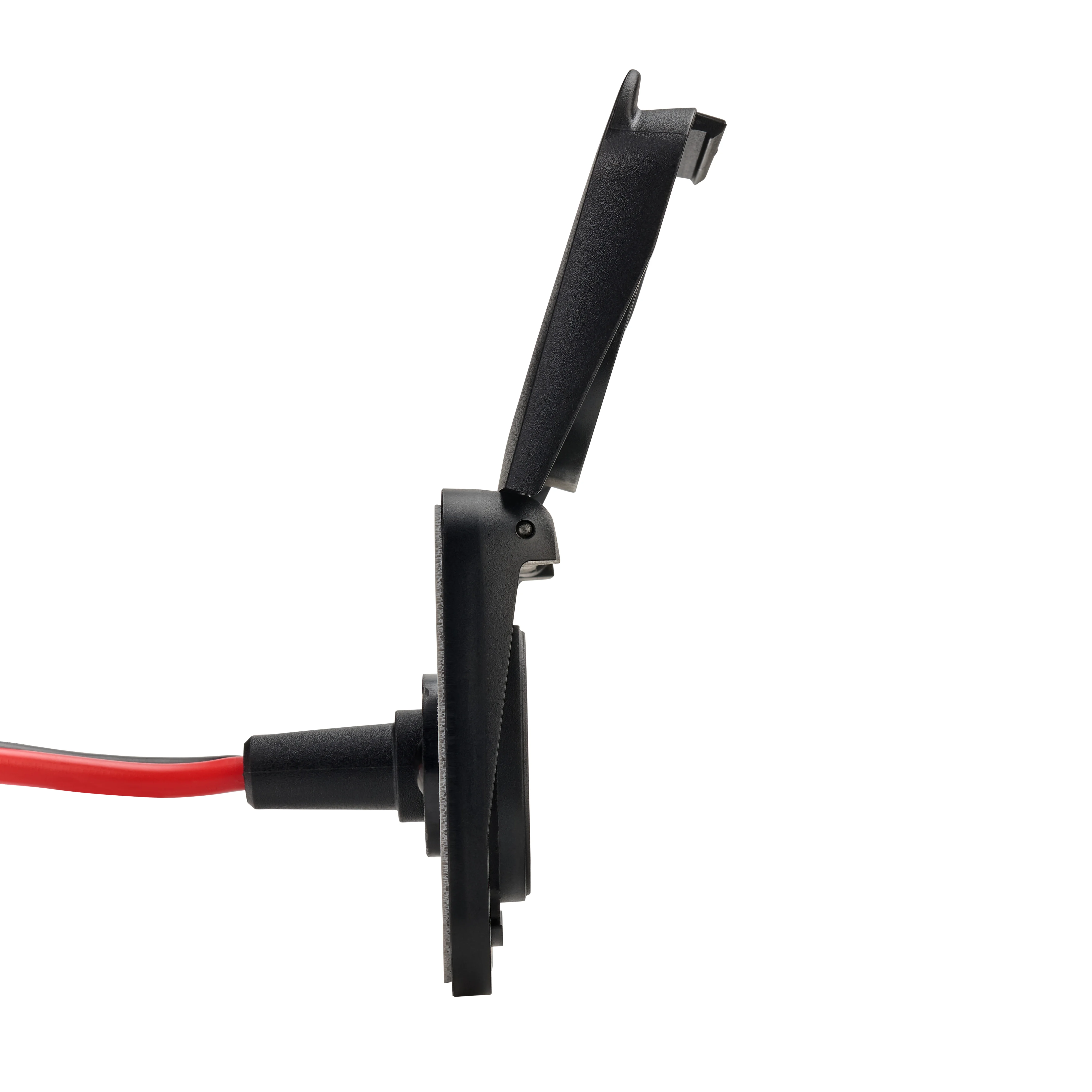

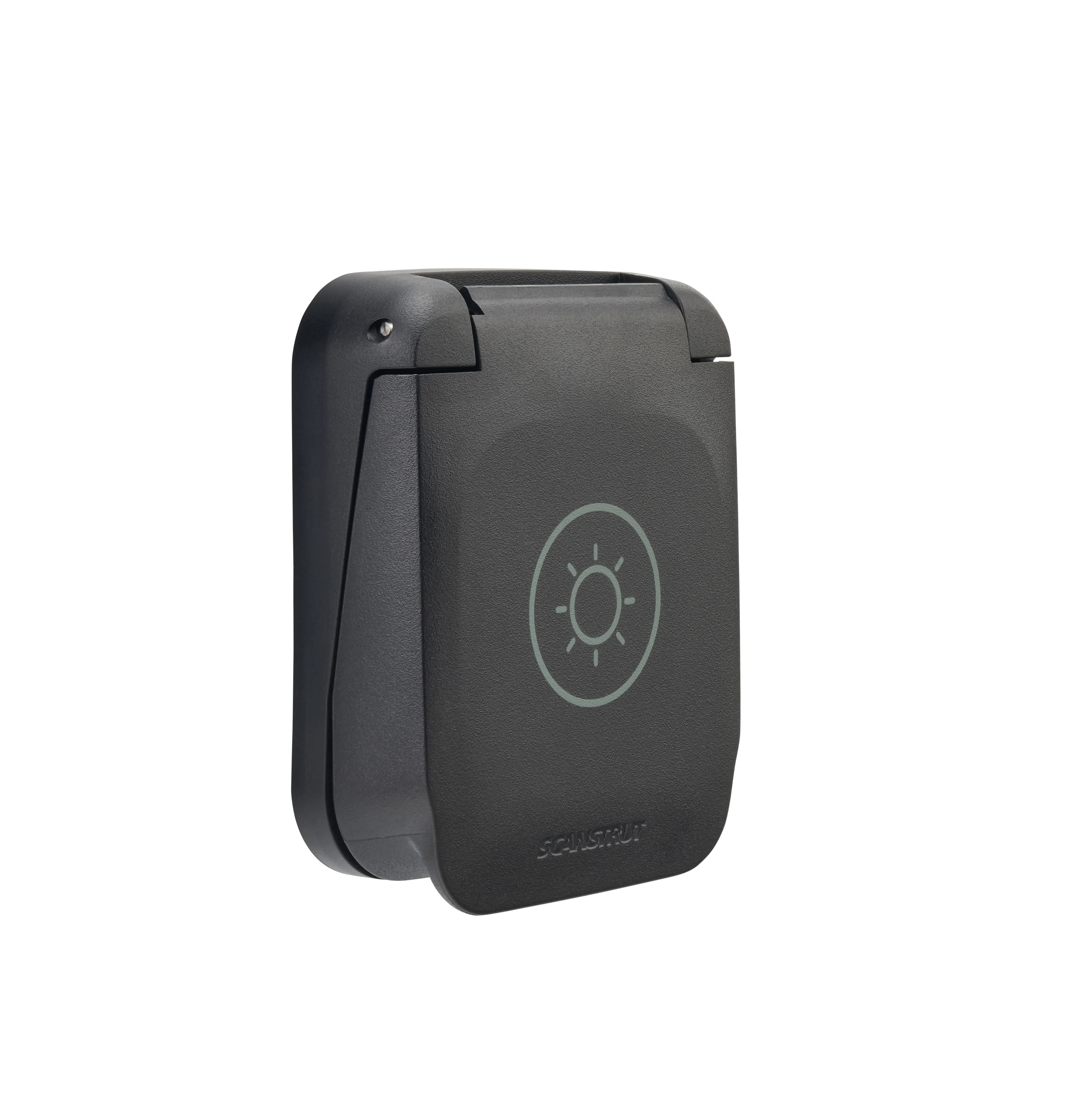

SAE Solar Connection

Ventura Series

SC-V-S2

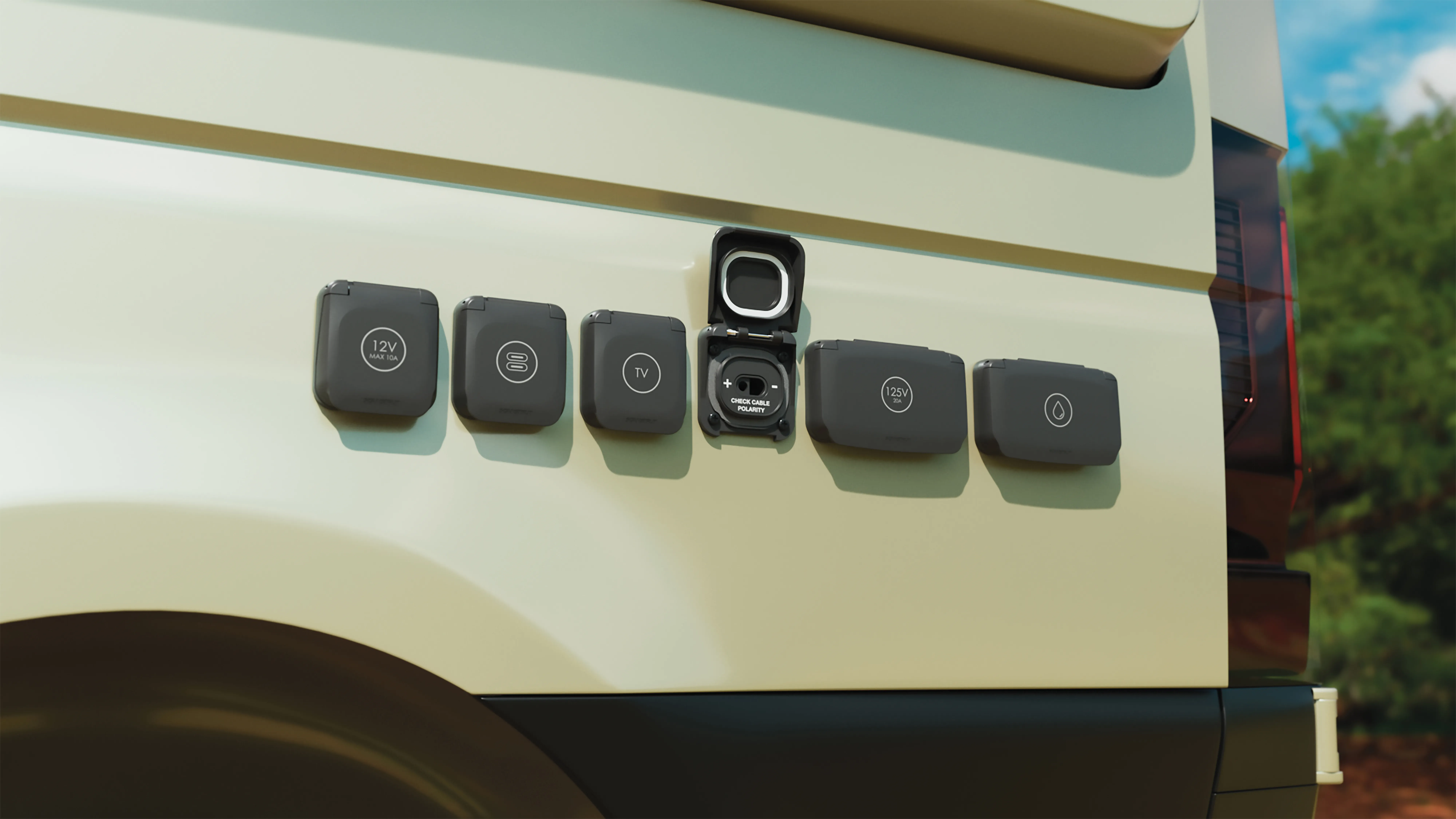

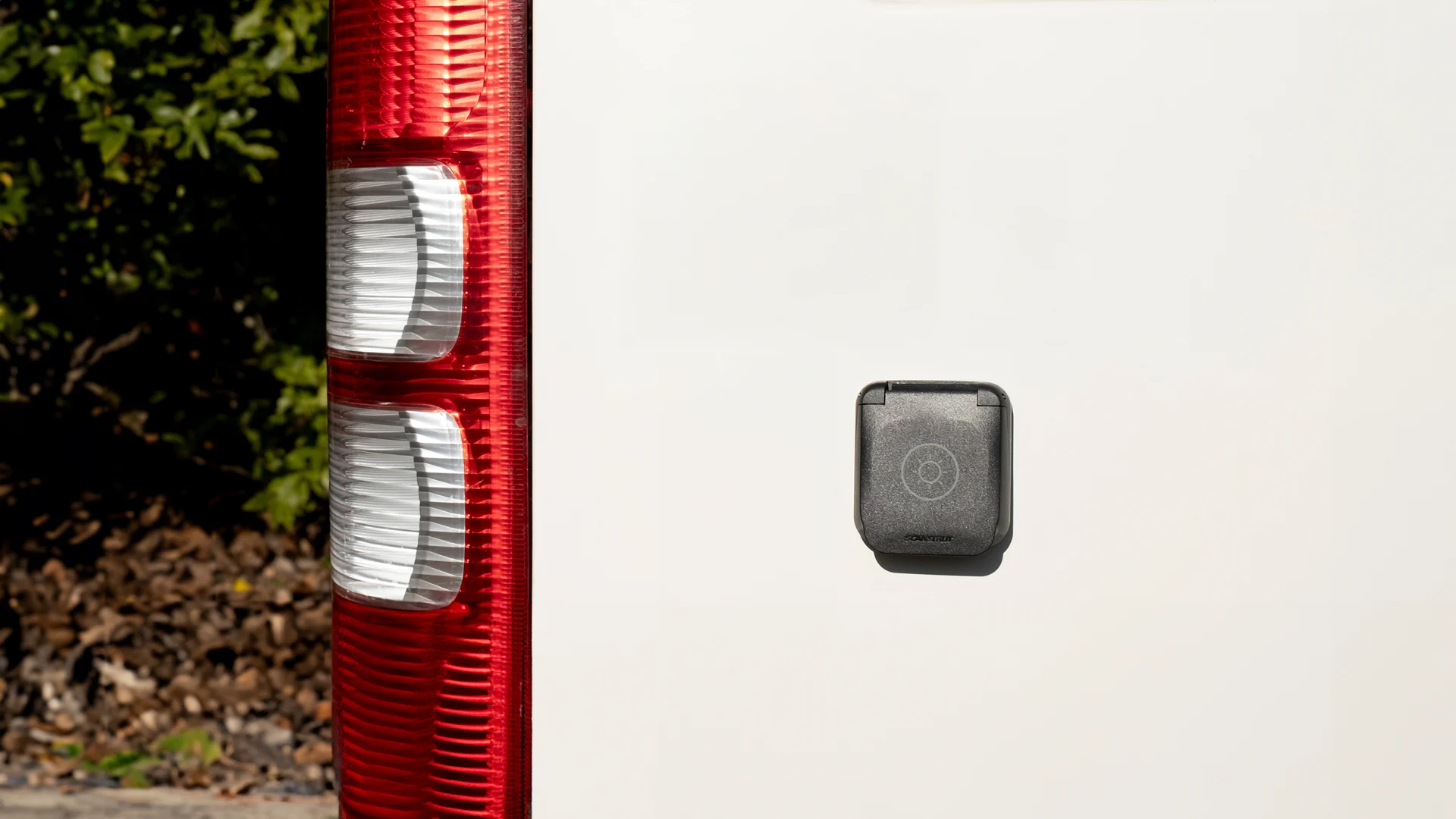

Connecting exterior solar panels into your camper power system

Need quick and dependable outdoor access to an SAE connection? From rocky trails to coastal escapes, the Scanstrut Ventura Series SAE Solar Connection the ideal power partner for off-road adventures and outdoor living.

60.3mm (2.37") W x 68mm (2.68") H x 188.5mm (7.42") D
IP68/IP69K waterproof with lid closed - fully dust-tight and can resist close-range, high-pressure water jets
Marine-Grade 316 Stainless Steel Hardware

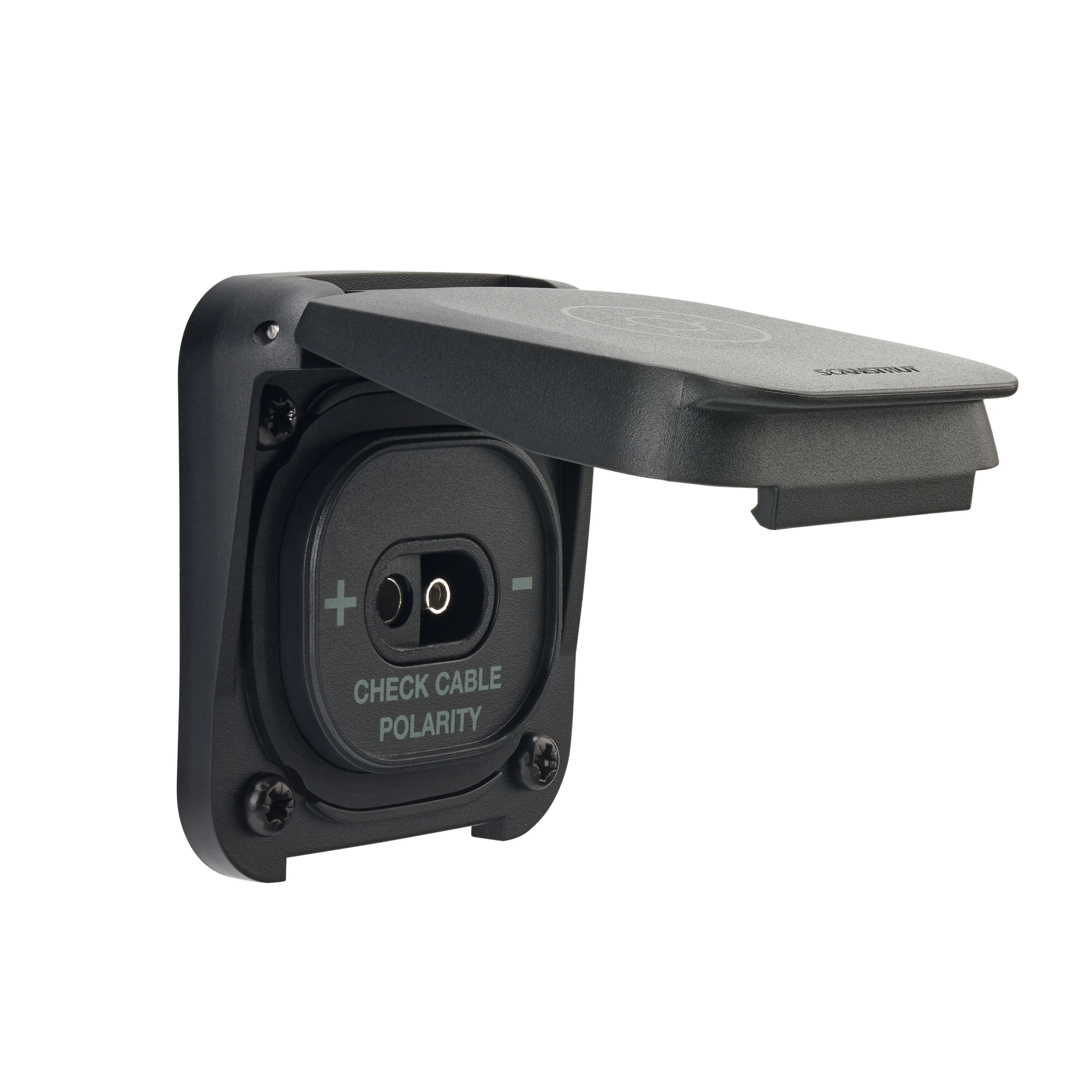

Lid can hold open at 90° and stay open at 180°
UV Resistant and easy to install
Built-in gaskets for a watertight seal
Built to last - rain, dust, heat, or snow
Standard 25mm (1.00”) Holesaw Installation

3 Year Warranty

Request a Callback

Free Shipping
on orders over $100

30 Day Returns
Easy returns & exchanges

Trusted by Industry Leaders
Chosen by 300+ boat and RV builders worldwide

Product Details

Technical

Compatibility Checker

SCA Testing

The testing standard at Scanstrut is encapsulated by the acronym SCA, which stands for Safe, Certified, and Approved. With over 35 years of experience and expertise in designing products for outdoor use, Scanstrut design products to be able to thrive in the harshest of outdoor environments.

Before any product is released, it must pass through the rigorous testing program which involves assessments in electrical, mechanical, U.V., corrosion, thermal, and waterproof categories. To ensure the highest level of accuracy, testing is conducted both internally and by independent ISO accredited test houses.

This commitment to quality has earned Scanstrut the approval of renowned names such as Mercury Marine, Grady White Boats, Boston Whaler, Winnebago, Airstream and many more. To learn more about the SCA testing program and certifications, get in touch.

On/Off Road Testing

Simulates real-world performance by rigorously testing the product across varied terrains, including roads and off-road trails

Cycle Testing

Simulates extended long-term use by repeatedly opening and closing a lid to replicate mechanical wear over time.

Water Pressure Test

Evaluates the product’s capacity to endure rising internal pressure, ensuring it maintains structural integrity under extreme conditions.

IP Test

Water and dust protection under test laboratory conditions to international IP standards. We test between IPX4 (waterjet) and IP68 (submersion).

Accelerated UV Material Test

We accelerate the effects of UV exposure to replicate our products usage in extreme tropical climates. We do this to ensure parts do not become brittle, discolour or fail over time.

Thermal Chamber Test

Laboratory chamber running from -40°C (-40°F) to +85°C (185°F) and back to -40°C (-40°F) for 120 cycles, this accelerates material ageing to simulate real world environment.

Temperature Chamber Test

Product placed in a laboratory chamber at high temperatures to ensure our products continue to perform as designed.

Corrosion Test

100-hours of a special formula salt spray that simulates accelerated marine environmental effects on the product.

FEA Analysis

Finite Element Analysis, simulates the behaviour of the design in virtual conditions to allow us to optimise the design before prototyping and physical testing.

C Tick

An identification trademark registered to the ACMA indicates that the equipment complies with the relevant EMC standard.

CE / UKCA

Signifies that our products have been assessed to meet high safety, health, and environmental protection requirements.

FCC

A legal requirement to sell any communication device (RF) in the United States of America.

Humidity Chamber Test

Similar to our brutal SCA Thermal Chamber Test, but we’ve added humidity to make it even more punishing.

Material Test

Positive Material Identification (PMI) ensures consistent quality of 316 Stainless Steel and Aluminium products. This controls strength and environmental performance.

ROHS

Confirms the levels of substances and chemicals in our electrical products, with the aim of protecting human and animal health. 

Scanstrut Wins IBEX 2026 Innovation Award for Wireless Powered Navlight

2 mins

Connection Type	SAE
Connector Max Current	20A
Connector Max Voltage	Rated 24V DC
Max Power Delivery (12V Input)	240W
Max Power Delivery (24V Input)	480W

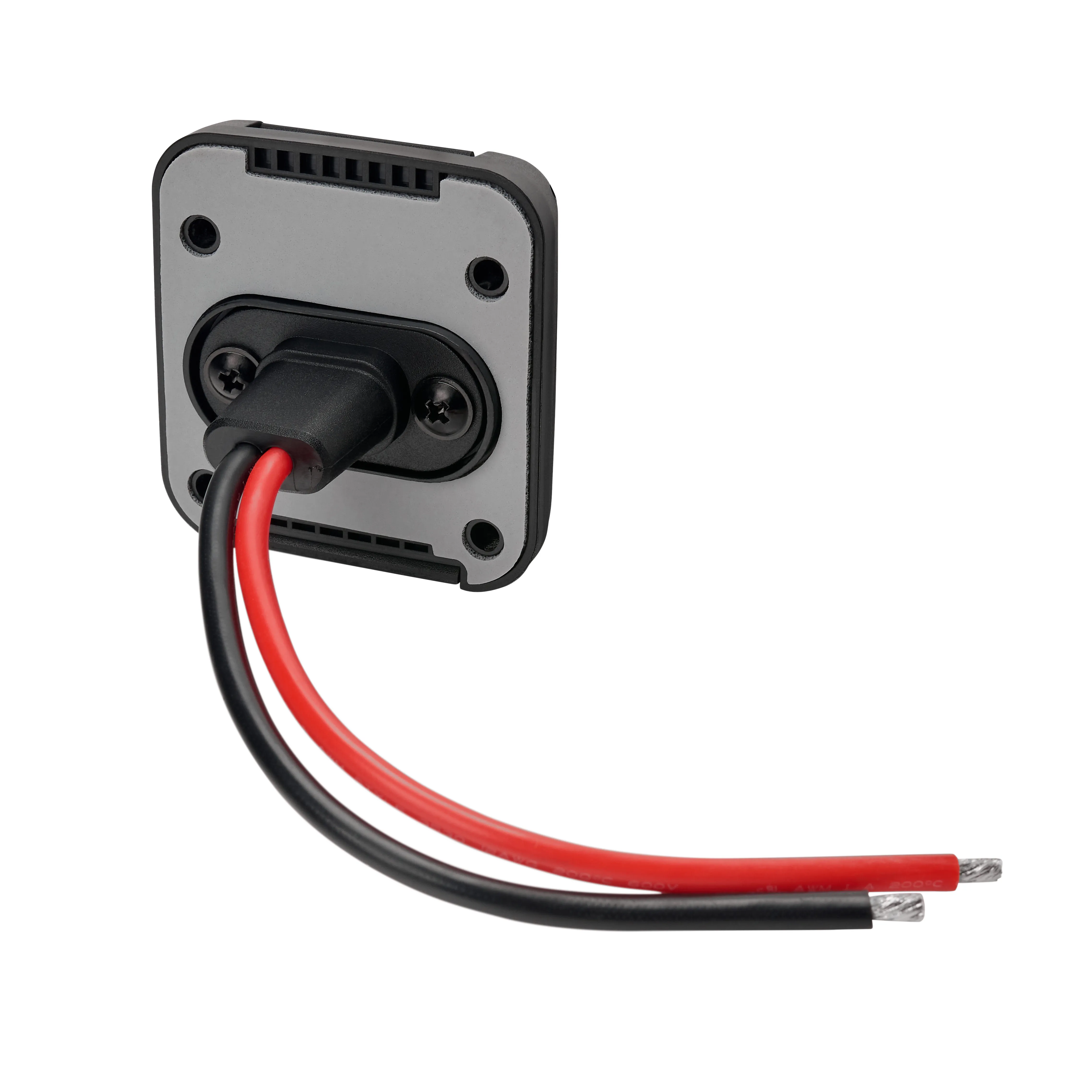

Cable Size	4mm² / 12AWG
Cable Length	150mm (6”) Tinned Copper Wire
Cable Bend Radius (4xD)	18mm (0.71”)
Waterproof Rating	IP68, IP69K Front only when lid closed
Certification	CE, ROHS
