XT60 Solar Connection

Product Details

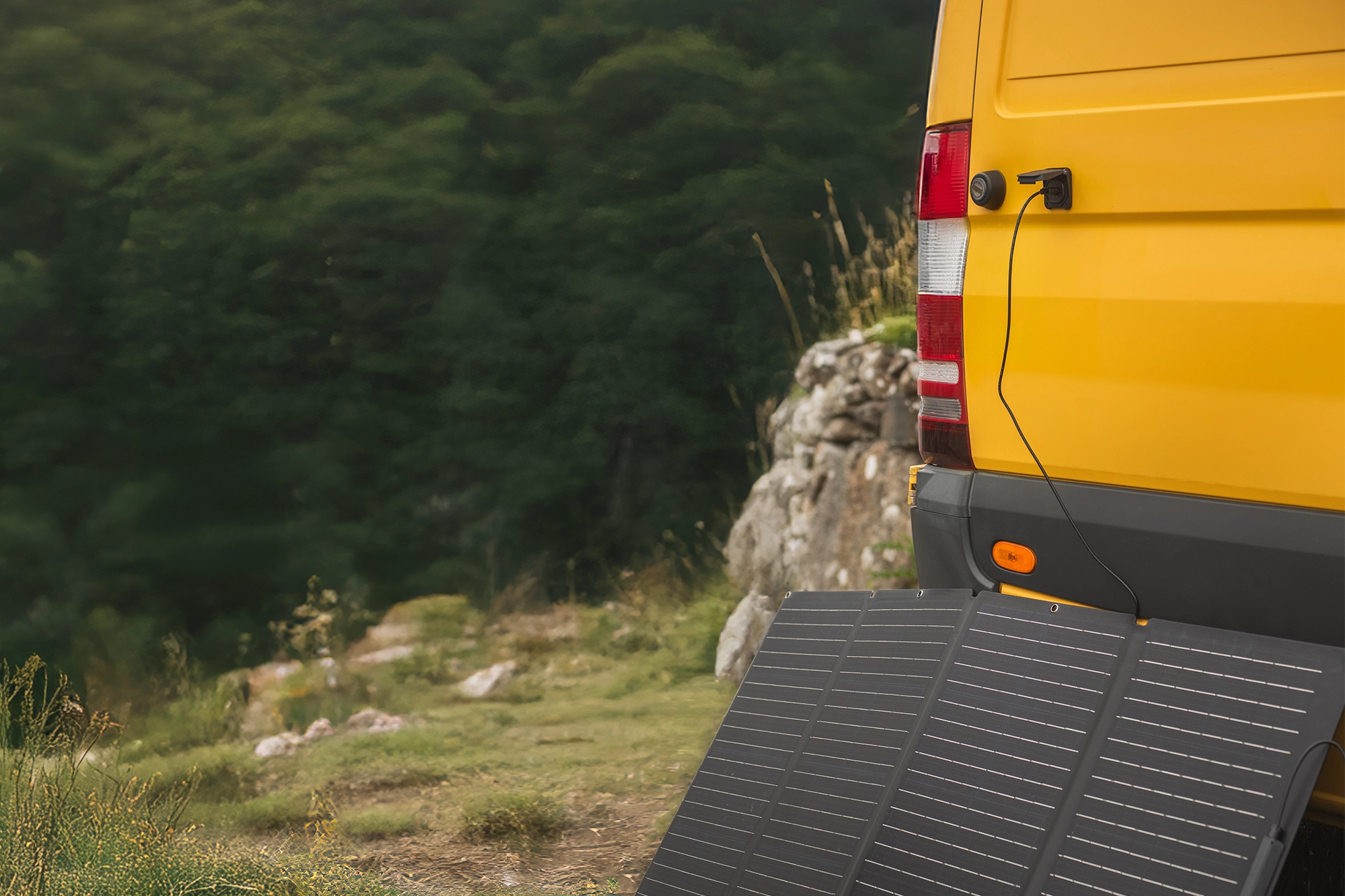

Whether you're charging from solar panels at a remote campsite, powering a fridge in the back of your 4x4, or running gear from your overland trailer, Ventura delivers rock-solid reliability in every environment.

Built for the outdoors, its rugged, fixed design stays secure no matter the terrain, while the optimised cable fit supports higher voltages with ease.

From wild weekends in the mountains to long-haul road trips through the desert, Ventura keeps your adventure powered and ready to go.

Engineered with Scanstrut marine-grade innovation, these sockets undergo rigorous UV and waterproof testing (Waterproof Rating: IP68, IP69K) to withstand the harshest conditions. Crafted from 316 stainless steel, they ensure long-lasting durability and top-tier performance in any environment.

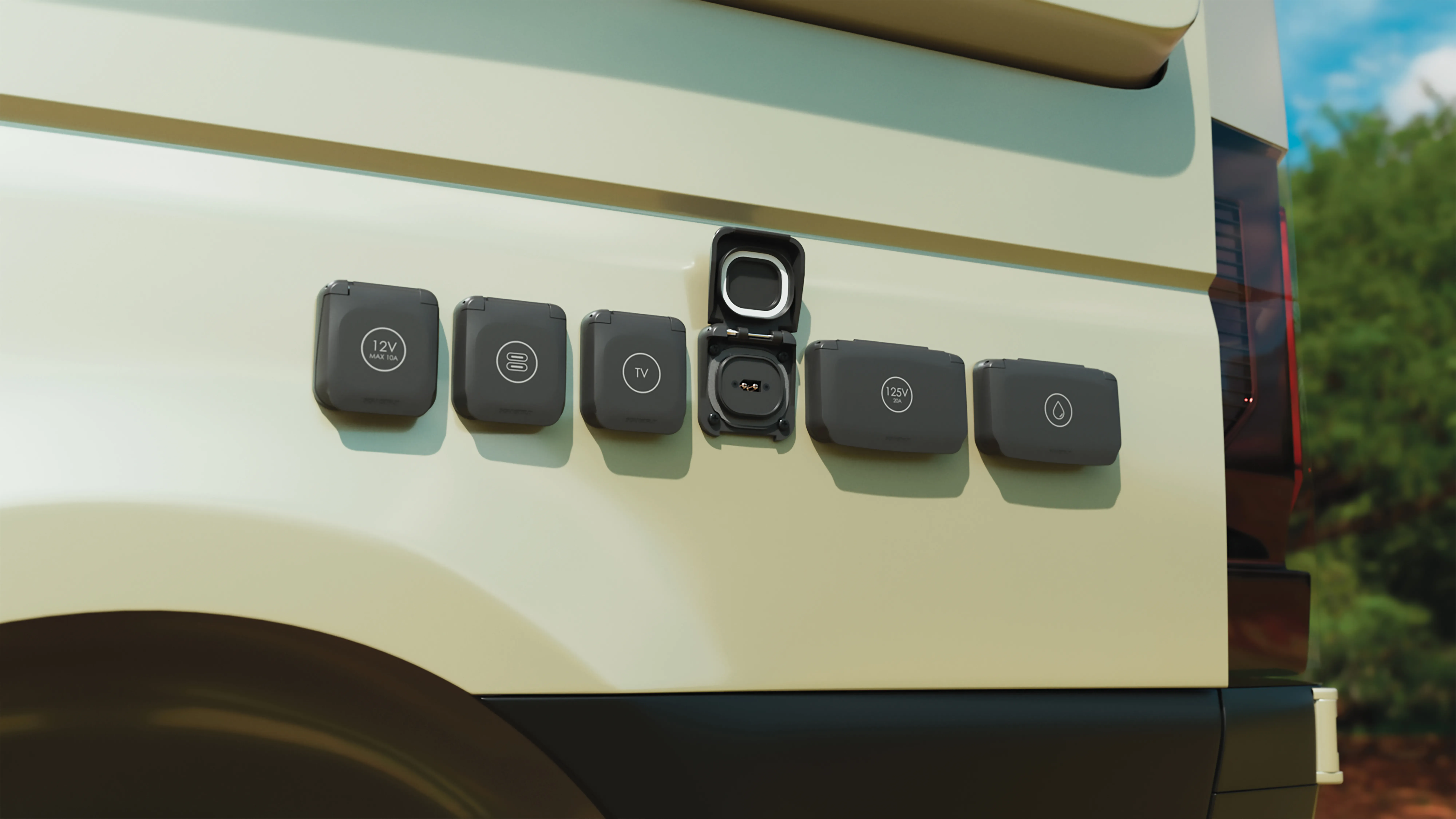

Backed by extensive research and development, the Ventura Series offers a sleek, compact, and uniform design, seamlessly integrating with other exterior sockets for power, water, and solar connections.

Stay powered and adventure-ready, choose the Scanstrut Ventura Series for uncompromising outdoor connectivity.

Key Features

Connector Type Amass XT60EW-M Male Waterproof Type
IP68, IP69K Waterproof (with lid closed)

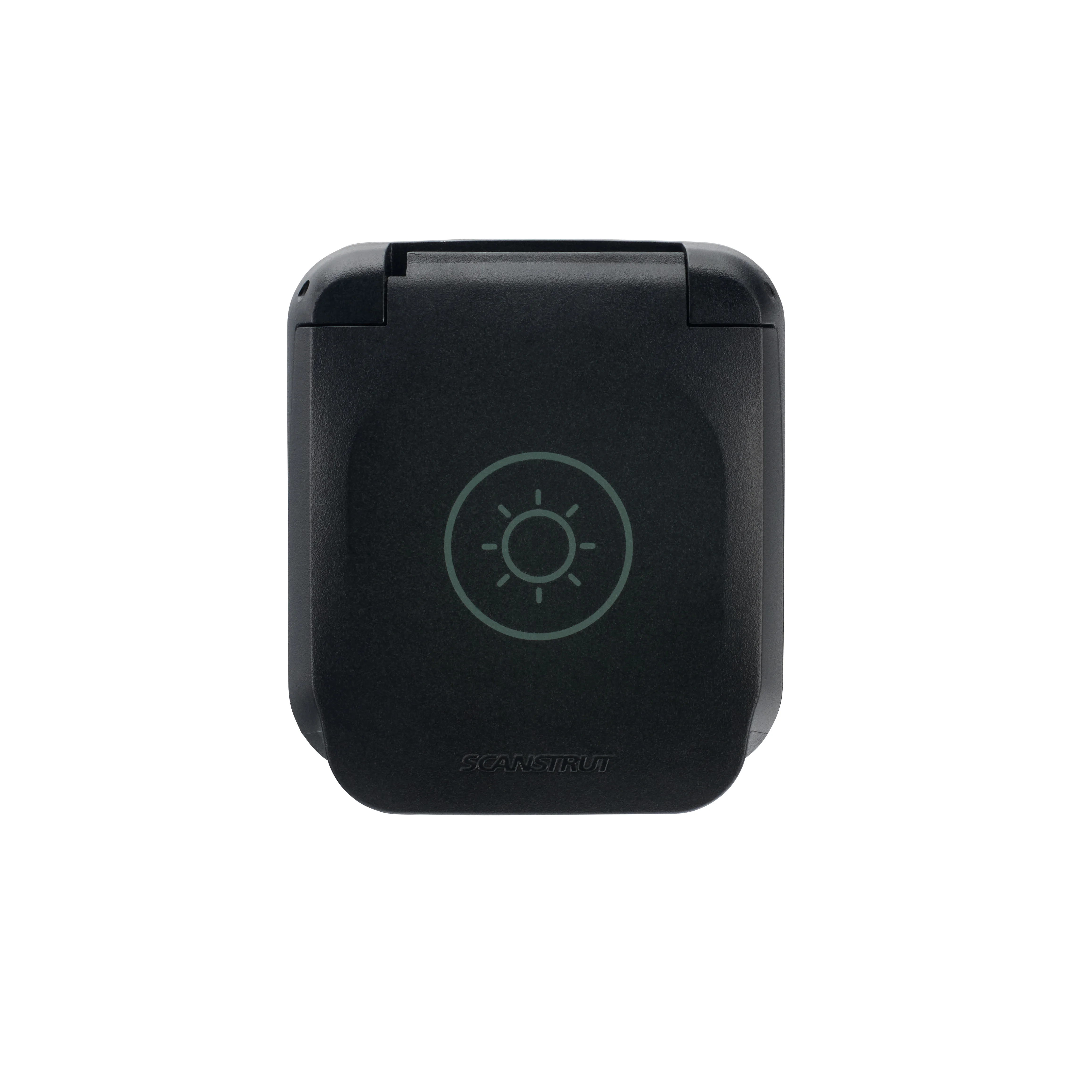

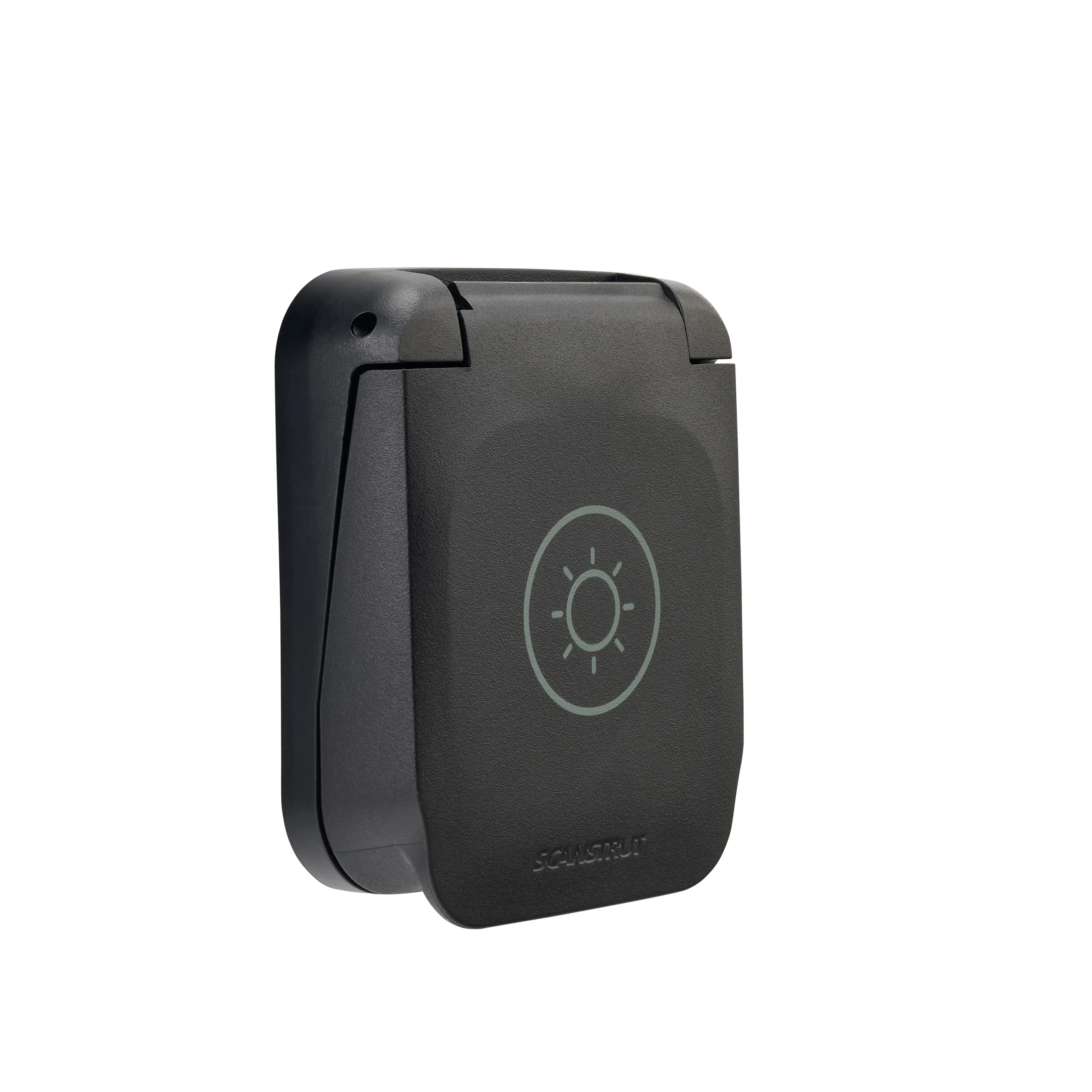

Premium click-to-close design
Easy install
Standard 25mm (1.00”) Holesaw Installation
Built-in gasket for a watertight seal 

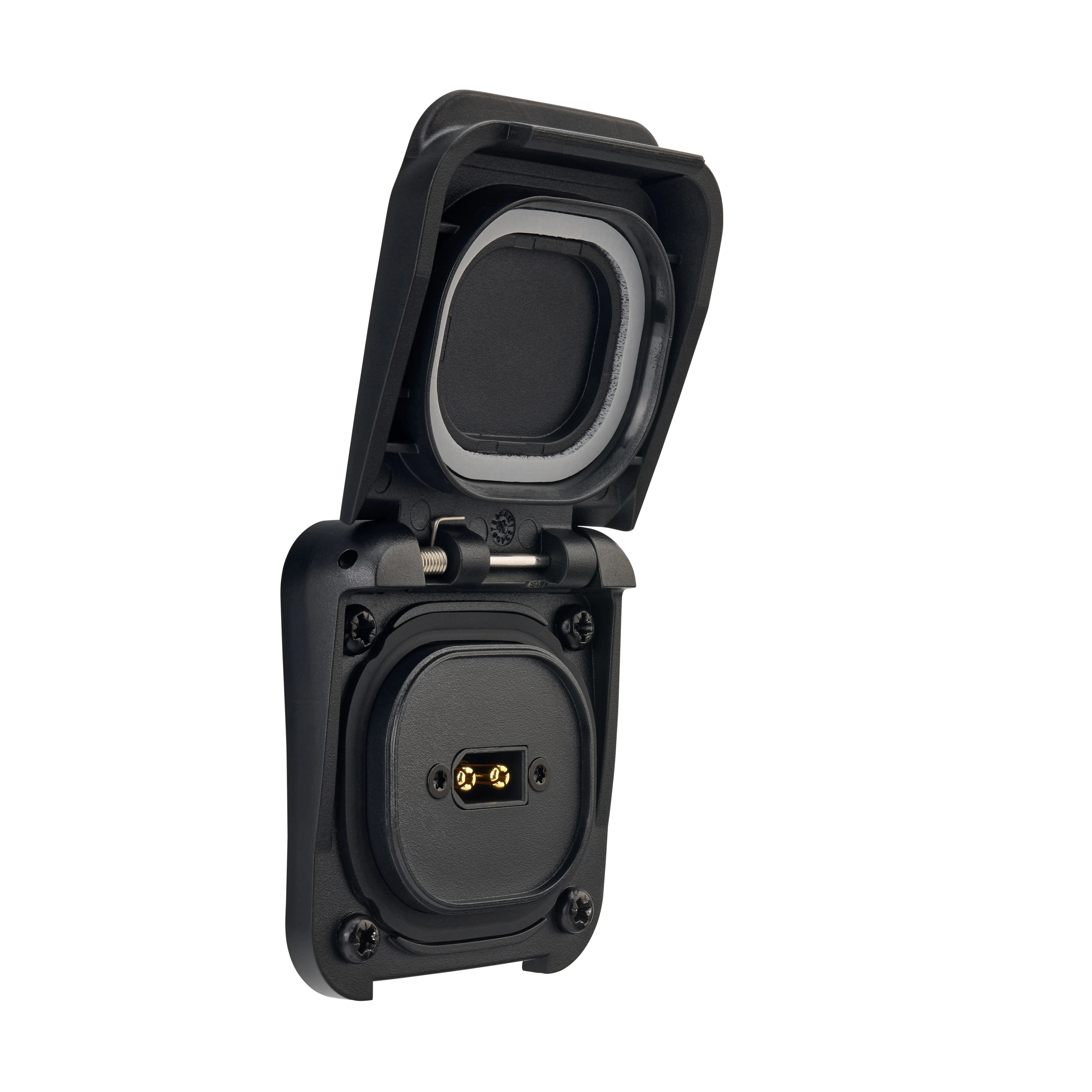

Cover Sprung to Fully Open 180°
Marine-Grade 316 Stainless Steel Components

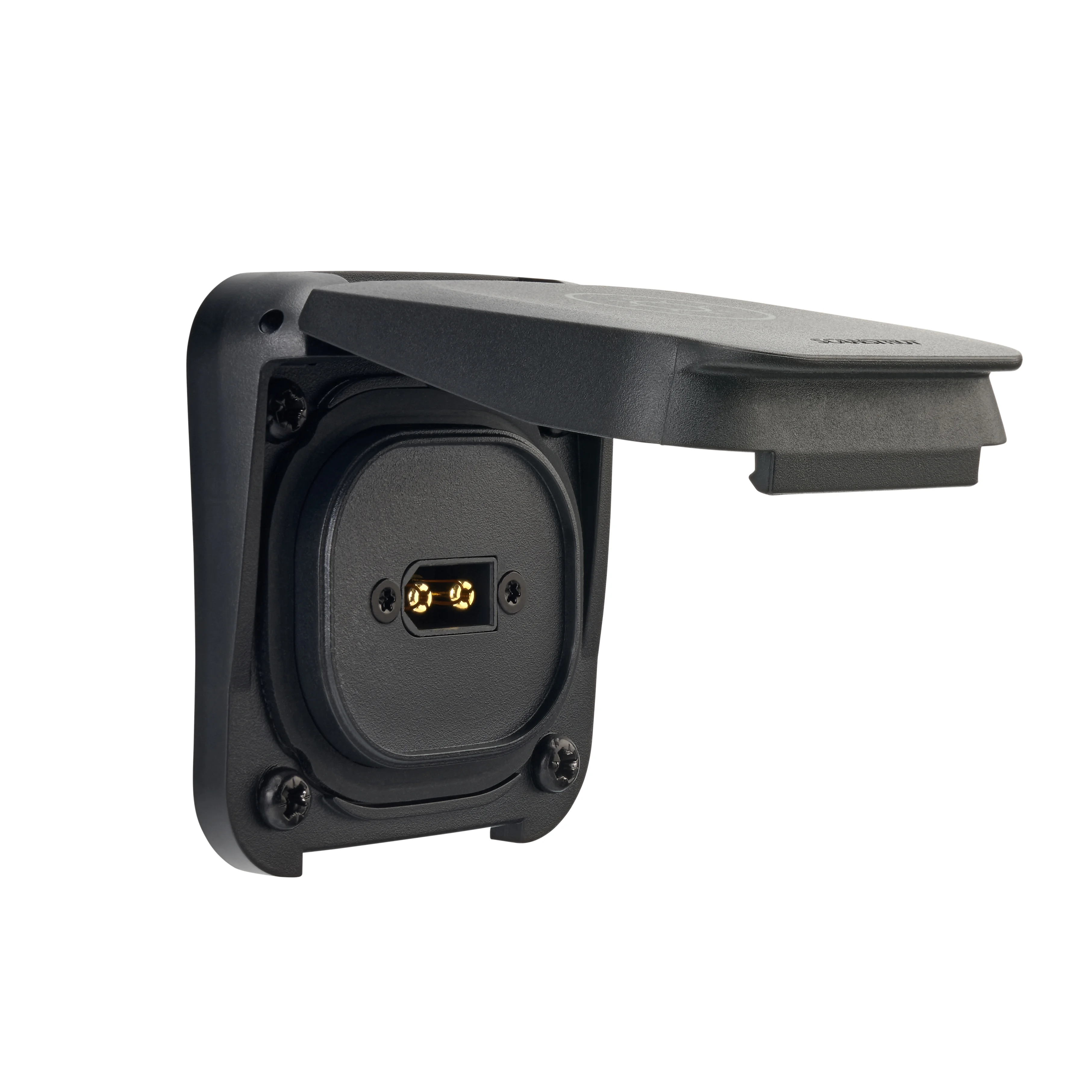

90° Holding Bump-Feature
UV Resistant

Electrical Information

Connection Type	Amass XT60EW-M Male Waterproof Type
Compatible Connectors	• XT60W-F Female Waterproof Type (IP65 in use) • XT60-F Standard Female Type
Connector Max Current	• 30A Continuous • 60A Instantaneous
Connector Max Voltage	Rated 500V DC
Max Power Delivery (12V Input)	360W
Max Power Delivery (24V Input)	720W
Max Power Delivery (48V Input)	1440W

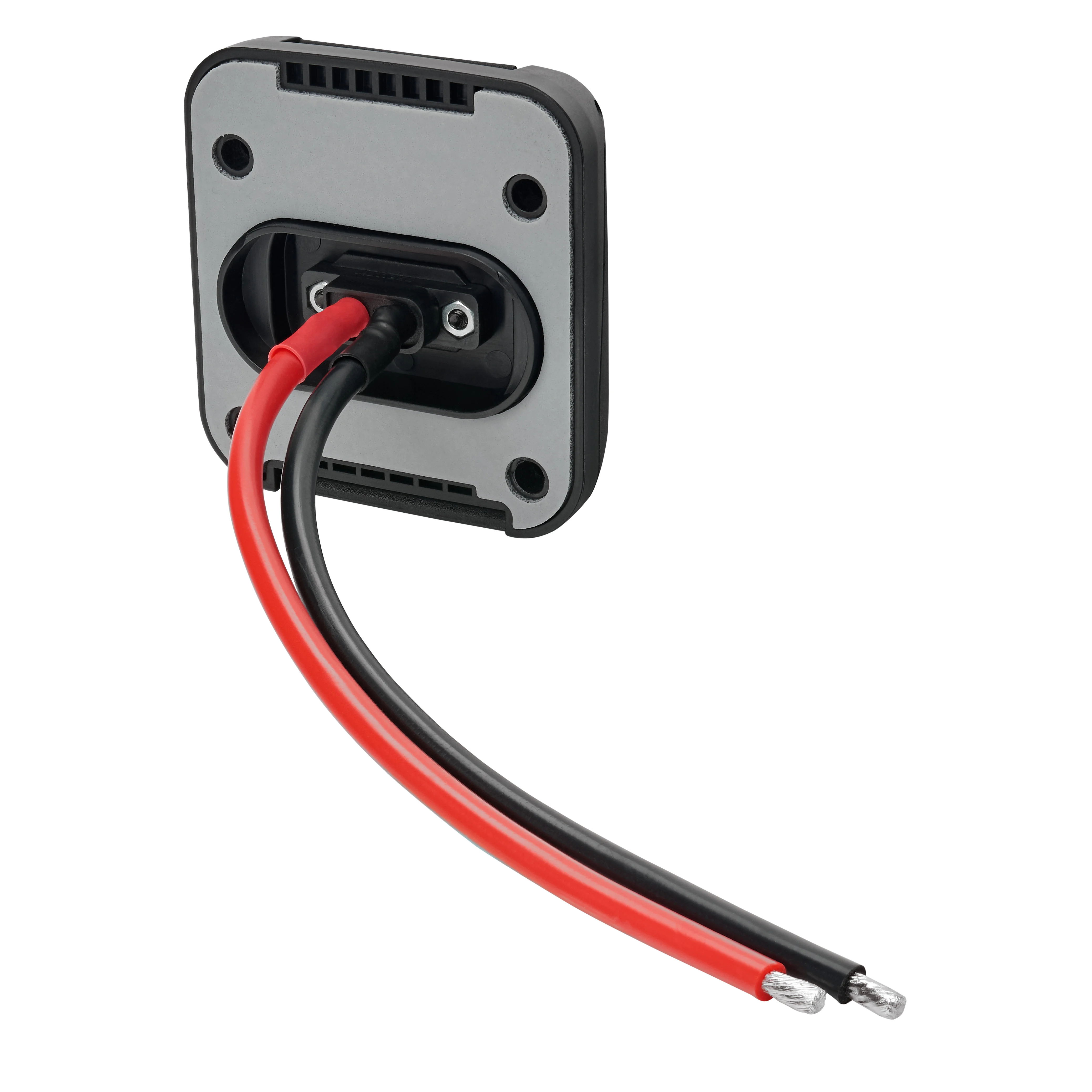

Cable Size	4mm² / 12AWG
Cable Length	150mm (6”) Tinned Copper Wire
Cable Bend Radius (4xD)	18mm (0.71”)
Waterproof Rating	IP68, IP69K Front only when lid closed
Certification	CE, ROHS

Installation Guide

Compatibility Checker

SCA Testing

The testing standard at Scanstrut is encapsulated by the acronym SCA, which stands for Safe, Certified, and Approved. With over 35 years of experience and expertise in designing products for outdoor use, Scanstrut design products to be able to thrive in the harshest of outdoor environments.

Before any product is released, it must pass through the rigorous testing program which involves assessments in electrical, mechanical, U.V., corrosion, thermal, and waterproof categories. To ensure the highest level of accuracy, testing is conducted both internally and by independent ISO accredited test houses.

This commitment to quality has earned Scanstrut the approval of renowned names such as Mercury Marine, Grady White Boats, Boston Whaler, Winnebago, Airstream and many more. To learn more about the SCA testing program and certifications, get in touch.

On/Off Road Testing

Simulates real-world performance by rigorously testing the product across varied terrains, including roads and off-road trails

Cycle Testing

Simulates extended long-term use by repeatedly opening and closing a lid to replicate mechanical wear over time.

Water Pressure Test

Evaluates the product’s capacity to endure rising internal pressure, ensuring it maintains structural integrity under extreme conditions.

IP Test

Water and dust protection under test laboratory conditions to international IP standards. We test between IPX4 (waterjet) and IP68 (submersion).

Accelerated UV Material Test

We accelerate the effects of UV exposure to replicate our products usage in extreme tropical climates. We do this to ensure parts do not become brittle, discolour or fail over time.

Thermal Chamber Test

Laboratory chamber running from -40°C (-40°F) to +85°C (185°F) and back to -40°C (-40°F) for 120 cycles, this accelerates material ageing to simulate real world environment.

Temperature Chamber Test

Product placed in a laboratory chamber at high temperatures to ensure our products continue to perform as designed.

Corrosion Test

100-hours of a special formula salt spray that simulates accelerated marine environmental effects on the product.

FEA Analysis

Finite Element Analysis, simulates the behaviour of the design in virtual conditions to allow us to optimise the design before prototyping and physical testing.

C Tick

An identification trademark registered to the ACMA indicates that the equipment complies with the relevant EMC standard.

CE / UKCA

Signifies that our products have been assessed to meet high safety, health, and environmental protection requirements.

FCC

A legal requirement to sell any communication device (RF) in the United States of America.

Humidity Chamber Test

Similar to our brutal SCA Thermal Chamber Test, but we’ve added humidity to make it even more punishing.

Material Test

Positive Material Identification (PMI) ensures consistent quality of 316 Stainless Steel and Aluminium products. This controls strength and environmental performance.
