SC-USB-F4 Dual USB Type-A and Type-C Charger

Product Details

The Flip Pro Plus is the newest product in the series of Flip Pro. A combination of our most sought-after chargers, designed to be used with either a 12V or 24V input and features 1x USB-A and 1x USB-C, to create a rapid universal ultra-fast charging solution.

Design
Featuring a super-compact footprint that matches the rest of our Flip Pro range and is constructed from premium, marine-grade materials. Flip Pro Plus has been rigorously tested and is IPX4 waterproof, making it completely washdown-ready.

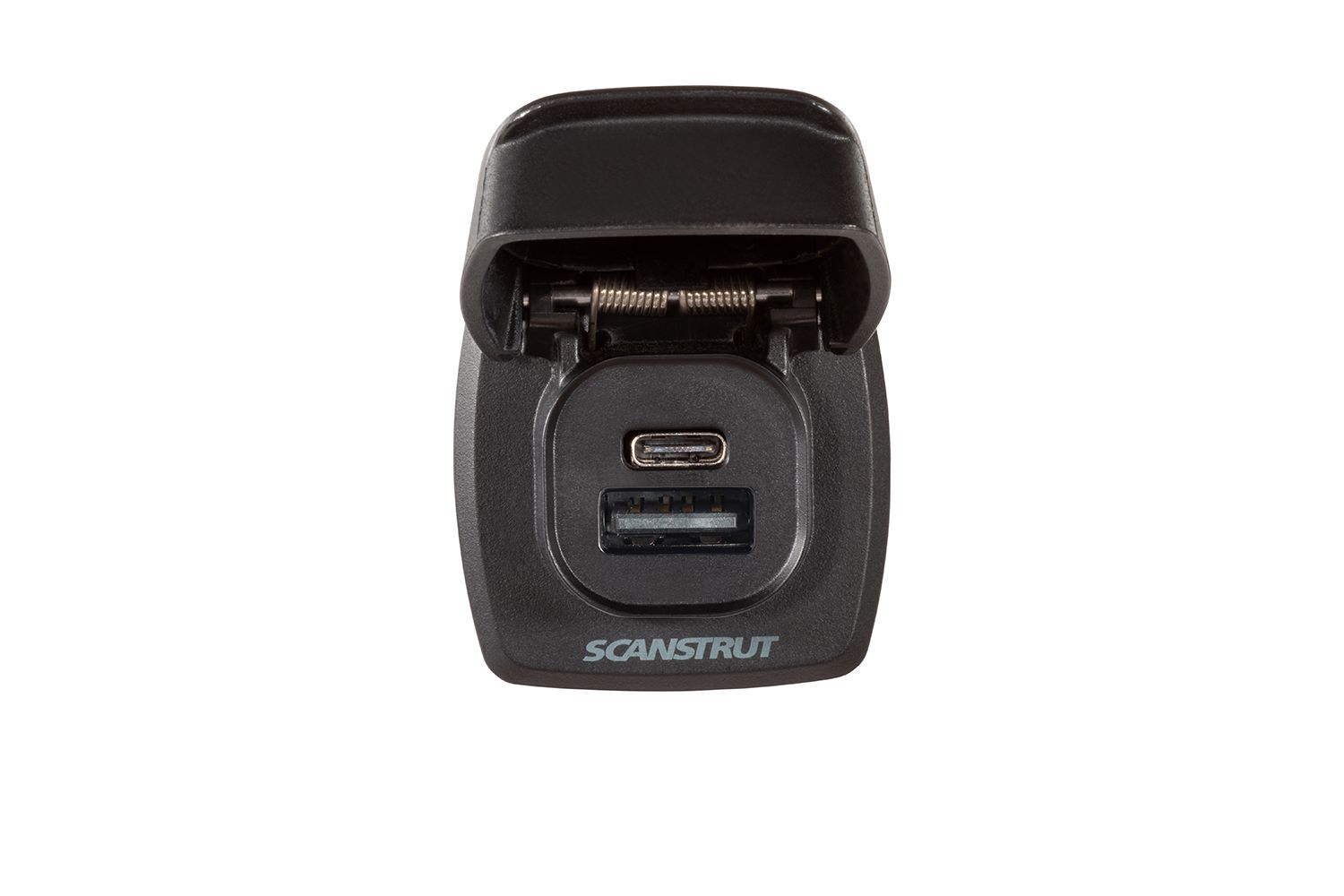

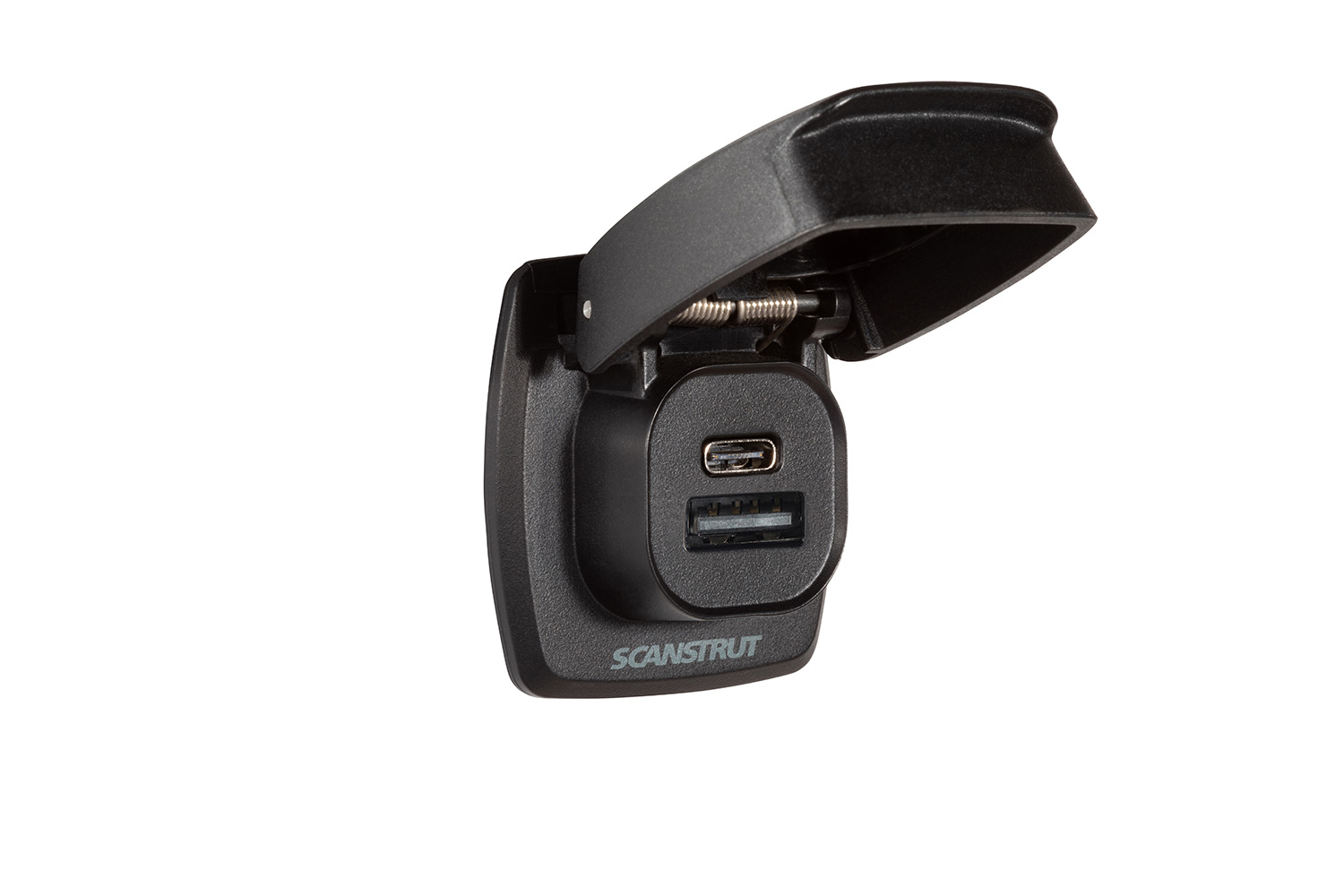

When not in use, the spring-loaded caps remain tightly closed, protecting the ports from the elements.

Capabilities
Flip Pro Plus is FAST! It will charge at 36W on a 12V system or up to 60W on a 24V. With a PD chip, this charger is truly universal, making it perfect for charging modern laptops via the USB-C port. It is also designed for charging large tablets, offering an effortless charge for both an iPad Pro & iPhone at the same time.

Installation

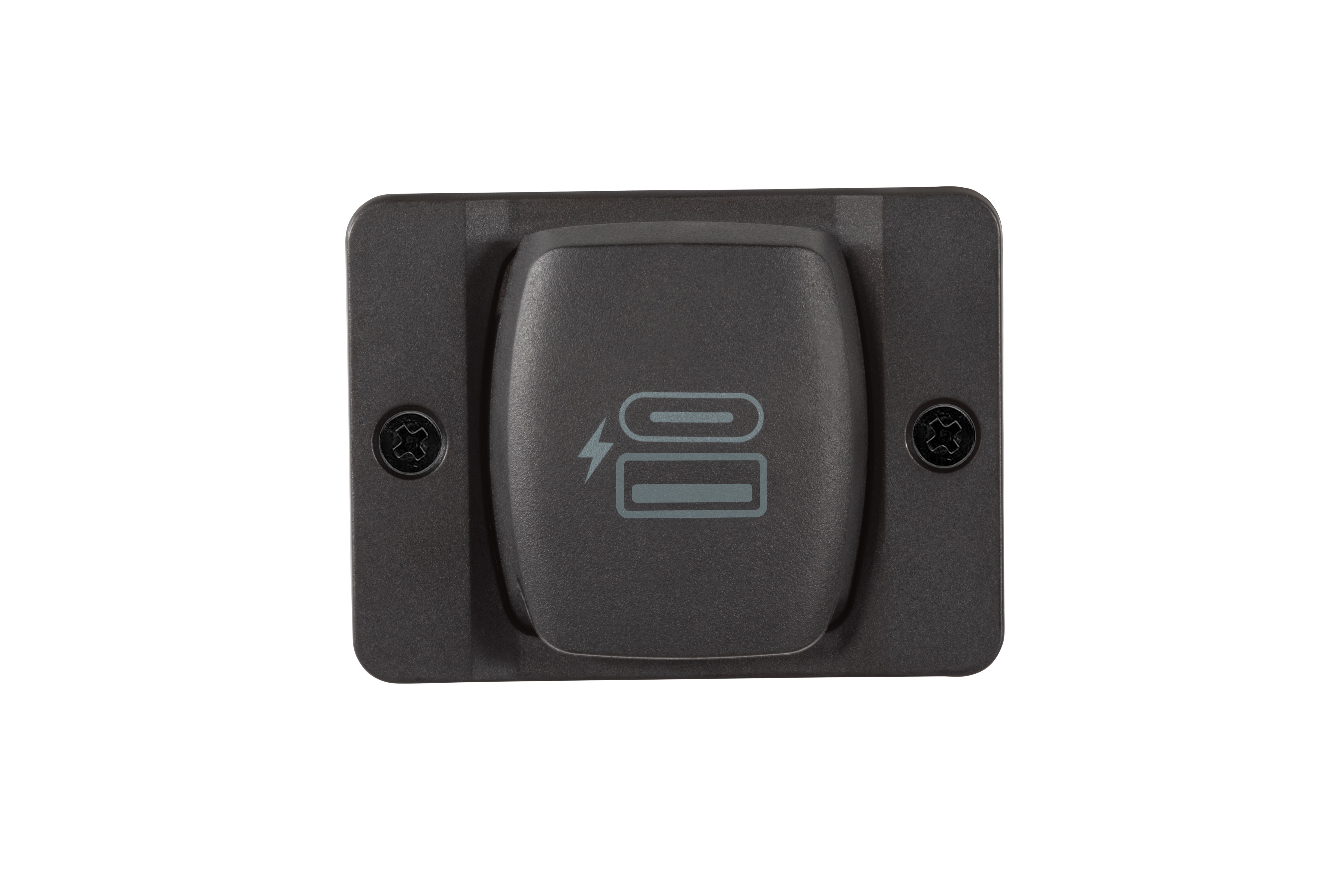

Easy Install, using standard USB mounting hole - 32mm (1 1/8”) and is supplied with a front mount bezel. The install cut-out matches our Flip Pro Max, Duo, and Multi USB sockets (32mm (1 1/8”) for a seamless look across the range.

USB–C output
60W max on 24V system
36W max on 12V system

USB-A – A output
36W max

Universal
Universal fit for any USB-A or USB-C connectors.
Fast charge (60W max) up to 2 devices at a time

Washdown Proof
IPX4 waterproof with the cover closed

Marine Ready
Internal anti-corrosion protective coating
UV resistant
316 stainless hinge and spring

Electrical Information
Input voltage: 10-30V DC (12/24V System)
Input current Max: 6A (10A fuse recommended)
Standby power draw: 0.01W

Important information
The charge cable supplied with your device (tablet, phone, action camera, etc) must be used to achieve maximum charge performance from this charger. Phones will charge at the same speed whether on a 12V or 24V input voltage system. However, a 24V system must be used to get the full 60W output suitable for fast-charging laptops.

Electrical Information

Input Voltage	10-32V DC (12/24V system)
Input Current	Max 6A (10A fuse recommended)
Output (Type C)	12V System: 5V⎓3A, 9V⎓3A, 12V⎓3A MAX
	24V System: 5V⎓3A, 9V⎓3A, 12V⎓3A, 15V⎓3A, 20V⎓3A MAX
Output (Type A)	12V System: 5V⎓3A, 9V⎓3A, 12V⎓3A MAX
	24V System: 5V⎓3A, 9V⎓3A, 12V⎓3A, 15V⎓3A, 20V⎓3A MAX
Standby Draw	0.01W
Certification	CE, FCC, UKCA, C-Tick, ROHS, WEE

Installation Guide

Compatibility Checker

FAQs

SCA Testing

The testing standard at Scanstrut is encapsulated by the acronym SCA, which stands for Safe, Certified, and Approved. With over 35 years of experience and expertise in designing products for outdoor use, Scanstrut design products to be able to thrive in the harshest of outdoor environments.

Before any product is released, it must pass through the rigorous testing program which involves assessments in electrical, mechanical, U.V., corrosion, thermal, and waterproof categories. To ensure the highest level of accuracy, testing is conducted both internally and by independent ISO accredited test houses.

This commitment to quality has earned Scanstrut the approval of renowned names such as Mercury Marine, Grady White Boats, Boston Whaler, Winnebago, Airstream and many more. To learn more about the SCA testing program and certifications, get in touch.

IP Test

Water and dust protection under test laboratory conditions to international IP standards. We test between IPX4 (waterjet) and IP68 (submersion).

Accelerated UV Material Test

We accelerate the effects of UV exposure to replicate our products usage in extreme tropical climates. We do this to ensure parts do not become brittle, discolour or fail over time.

Cable Bend Test

Electrical products are bolted into a specially designed automated jig to mechanically bend the cable -45° to +45° for 3000 cycles. This ensures cables will not fail even after prolonged use.

Thermal Chamber Test

Laboratory chamber running from -40°C (-40°F) to +85°C (185°F) and back to -40°C (-40°F) for 120 cycles, this accelerates material ageing to simulate real world environment.

Cable Twist Test

Electrical products are bolted into a specially designed automated jig to mechanically twist the cable -45° to +45° for 3000 cycles. This ensures cables will not fail even after prolonged use.

Temperature Chamber Test

Product placed in a laboratory chamber at high temperatures to ensure our products continue to perform as designed.

Corrosion Test

100-hours of a special formula salt spray that simulates accelerated marine environmental effects on the product.

On Water Charge Test

Using real life on water temperature data to ensure devices will continue to charge at an acceptable speed in extreme cold and hot temperatures.

On Water Testing Global

Similar to SCA standard on water testing, however we select locations and vessels for more varied and challenging environmental conditions.

FEA Analysis

Finite Element Analysis, simulates the behaviour of the design in virtual conditions to allow us to optimise the design before prototyping and physical testing.

C Tick

An identification trademark registered to the ACMA indicates that the equipment complies with the relevant EMC standard.

CE / UKCA

Signifies that our products have been assessed to meet high safety, health, and environmental protection requirements.

ECE R10

The global automotive standard recognised by RV and Marine OEMs to ensure electrical devices are suitable to use in automotive builds.

FCC

A legal requirement to sell any communication device (RF) in the United States of America.

Humidity Chamber Test

Similar to our brutal SCA Thermal Chamber Test, but we’ve added humidity to make it even more punishing.

Material Test

Positive Material Identification (PMI) ensures consistent quality of 316 Stainless Steel and Aluminium products. This controls strength and environmental performance.
