HIDDEN-SC-CW-01F Qi-Wireless Charge Vanlife

Product Details

Hidden from view, ready to charge.
Engineered to be installed under the surface and to create an uncluttered and aesthetically pleasing interior. Hidden is the perfect choice for any RV or off-road vehicle.

IPX6 waterproof rated and 12/24V Qi-certified waterproof wireless charging Hidden is here to maximize your RV experience.

Design
Designed from the ground up, this is the world’s first waterproof wireless charge system created specifically for use onboard, with the unique technology housed in an IPX6, fully encapsulated and sealed unit.

Working directly with 12/24V systems, Hidden is ideal for life on the move and is perfect for RV living. Our new upgraded 10W chargers are up to 60% faster and have been designed for the latest generation of power-hungry devices and apps. Our improvements don’t just stop there, now featuring easier phone alignment with a larger charging area, and electrical componentry that has been enhanced to significantly improve your phone's charge times, even in the harshest outdoor environments.

Testing
Exceeding the latest and highest standards of the Qi wireless protocol, Hidden is independently certified to deliver ultra-safe, wireless charging anywhere onboard.

Installation
Easy install, anywhere you need your phone both indoors and outdoors, ensuring a clean and decluttered look, as no wires are required.

Simply etch in your logo to identify the charge location. Ideal for GRP or wood, the unit can be installed under tables, cabinets, consoles, or worktops. The installation system is simple to install and works with a variety of panel depths and materials.

Key Features

10W Fast Charging
IPX6 Waterproof & Qi Certified
No sealant required
Foreign object detection system
Sub-surface, hidden from view
Pocket or bond install
Ideal for GRP or wood
Allows for customer branding

Electrical Information

Input Voltage Range	10-30V DC (12/24V system)
Input current max	2A
Output Power	10W (9V,1.1A)
Standby Power Draw	< 0.2W
Certification	Qi, CE, UKCA, FCC, ROHS, C-Tick, UN ECE R10, IC, PSE Certified

Installation Guide

Compatibility Checker

FAQs

Can Hidden charger through any material?

Hidden can charge through any surface as long as it’s not metal and is pocket routed to leave only 3mm of material.

Is Wireless Charging safe when the charger is wet?

Yes, the charge passing through the water into your phone is not dangerous to you or your phone.

Can this charge my tablet?

The ROKK wireless range has been engineered to only charge phones, although there are a few wireless charging tablets on the market, 5W of power is not enough to fully charge a large screen device like a tablet.

Do I need to use the Rubber Grip Ring included in the packaging for the charger to work?

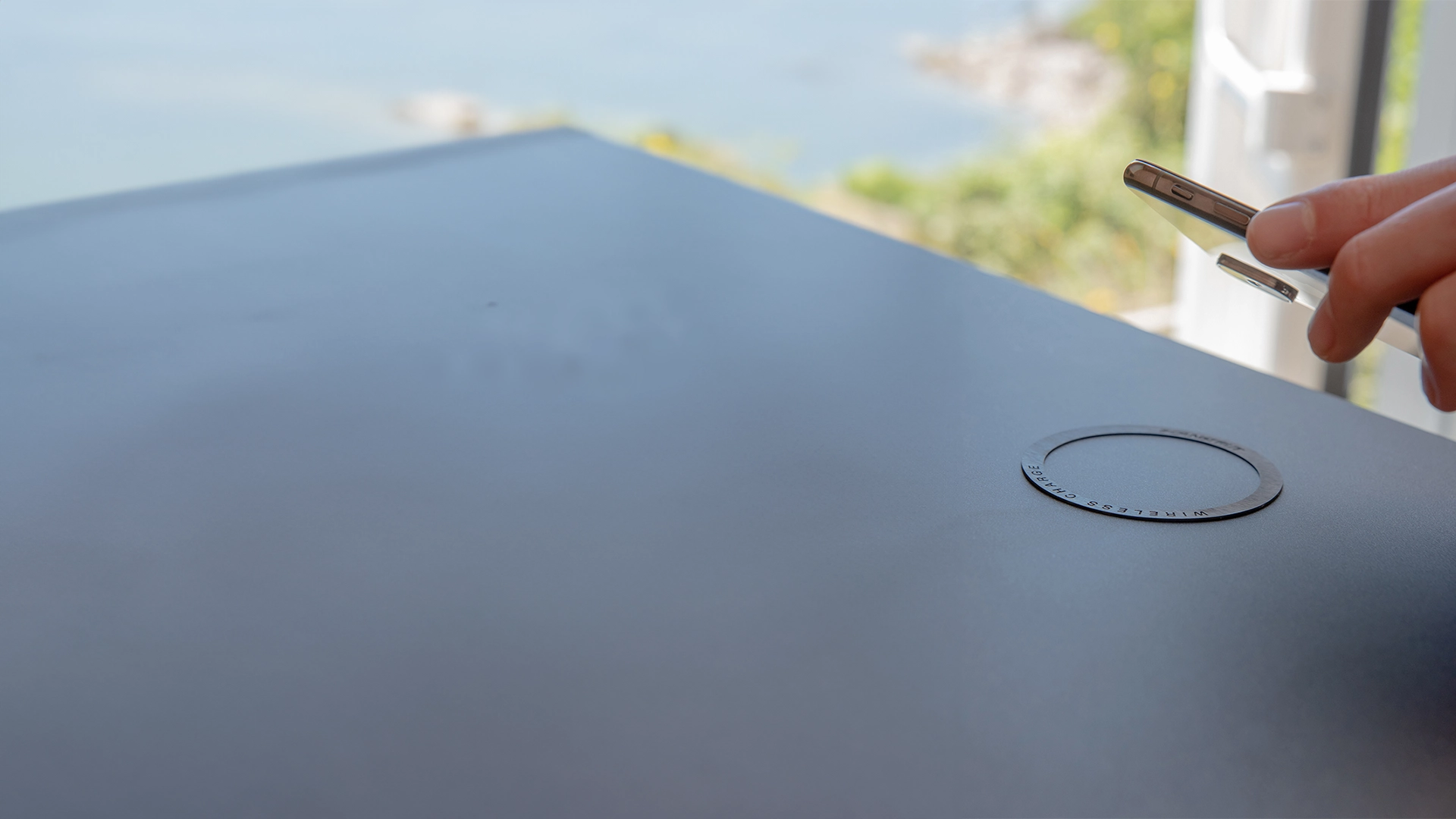

No, the grip ring is purely there as a marker or and grip for your phone. You can mark the surface yourselves or leave completely clean, it’s just easier to line up your phone with the central part of the charger with indicator on the charging surface.

What is Qi™ charging?

Qi™ is a wireless technology that uses inductive charging. The ROKK wireless range has been engineered to be Qi compatible. Qi has been adopted by Apple, Samsung and all other major phone brands.

Why is it not fast charging?

10W fast chargers do not charge the phone twice as quick as 5W, overall they are less efficient. The 10W charger will generate more heat, that combined with the outdoor environment, it’s likely to trigger your phones thermal cut out safety feature. We took the decision to use 5W technology that may deliver slightly slower charge, but allows your phone to continue to be used and receive charge outdoors.

Can it be installed using mains power?

The ROKK Wireless range is designed for 12/24V electrical systems, but we can supply transformers that enable them to be fitted to a mains supply. Because each country has its own Power specification please contact technical@scanstrut.com for more information.

SCA Testing

The testing standard at Scanstrut is encapsulated by the acronym SCA, which stands for Safe, Certified, and Approved. With over 35 years of experience and expertise in designing products for outdoor use, Scanstrut design products to be able to thrive in the harshest of outdoor environments.

Before any product is released, it must pass through the rigorous testing program which involves assessments in electrical, mechanical, U.V., corrosion, thermal, and waterproof categories. To ensure the highest level of accuracy, testing is conducted both internally and by independent ISO accredited test houses.

This commitment to quality has earned Scanstrut the approval of renowned names such as Mercury Marine, Grady White Boats, Boston Whaler, Winnebago, Airstream and many more. To learn more about the SCA testing program and certifications, get in touch.

The world’s No.1 wireless charging standard, this ensures our chargers are built to an extreme level of safety and ensures compatibility of all phones.

IP Test

Water and dust protection under test laboratory conditions to international IP standards. We test between IPX4 (waterjet) and IP68 (submersion).

Accelerated UV Material Test

We accelerate the effects of UV exposure to replicate our products usage in extreme tropical climates. We do this to ensure parts do not become brittle, discolour or fail over time.

Cable Bend Test

Electrical products are bolted into a specially designed automated jig to mechanically bend the cable -45° to +45° for 3000 cycles. This ensures cables will not fail even after prolonged use.

Thermal Chamber Test

Laboratory chamber running from -40°C (-40°F) to +85°C (185°F) and back to -40°C (-40°F) for 120 cycles, this accelerates material ageing to simulate real world environment.

Cable Twist Test

Electrical products are bolted into a specially designed automated jig to mechanically twist the cable -45° to +45° for 3000 cycles. This ensures cables will not fail even after prolonged use.

Temperature Chamber Test

Product placed in a laboratory chamber at high temperatures to ensure our products continue to perform as designed.

Corrosion Test

100-hours of a special formula salt spray that simulates accelerated marine environmental effects on the product.

On Water Charge Test

Using real life on water temperature data to ensure devices will continue to charge at an acceptable speed in extreme cold and hot temperatures.

On Water Testing Global

Similar to SCA standard on water testing, however we select locations and vessels for more varied and challenging environmental conditions.

FEA Analysis

Finite Element Analysis, simulates the behaviour of the design in virtual conditions to allow us to optimise the design before prototyping and physical testing.

C Tick

An identification trademark registered to the ACMA indicates that the equipment complies with the relevant EMC standard.

CE / UKCA

Signifies that our products have been assessed to meet high safety, health, and environmental protection requirements.

ECE R10

The global automotive standard recognised by RV and Marine OEMs to ensure electrical devices are suitable to use in automotive builds.

FCC

A legal requirement to sell any communication device (RF) in the United States of America.

Humidity Chamber Test

Similar to our brutal SCA Thermal Chamber Test, but we’ve added humidity to make it even more punishing.

Material Test

Positive Material Identification (PMI) ensures consistent quality of 316 Stainless Steel and Aluminium products. This controls strength and environmental performance.
