Compact horizontal seal
Horizontal Cable Seal
DS-H6-BLK
For cables from 2-6mm (0.08"-0.24"), an aesthetic dome-shaped profile provides a stronger, impact-resistant design and captive nuts in the base make for an easy assembly.
Our cable routing solution is designed to make installations quicker, easier, and more reliable. Its innovative features ensure top performance while saving you time and effort.
Additionally, its low-profile construction offers impact resistance and enhanced water protection. Captive nuts enable easy assembly and ensure reliable repeat installations. Crafted from UV-stable and hard-wearing materials, it is built to withstand harsh conditions. Plus, there’s no need for messy sealant on bungs, making it even more convenient.
- Easy fit cable routing: Streamlines the installation process, reducing time and complexity.
- 100% watertight seal: Provides unbeatable protection against water ingress, ensuring durability and reliability.
- Versatile compatibility: Designed to accommodate a wide range of cable diameters, making it suitable for various applications.

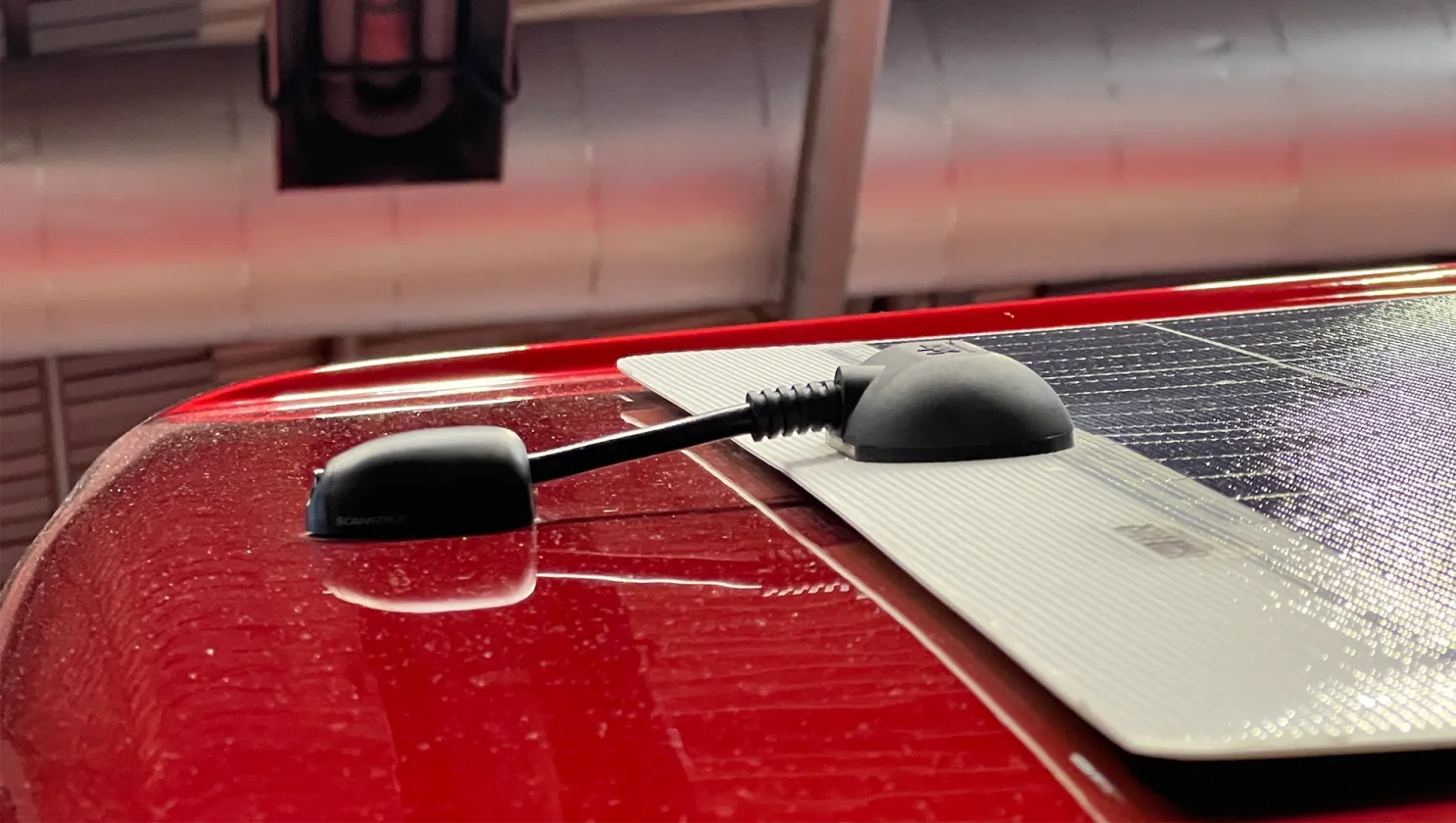

- Perfect for rooftop electronics: Ideal for solar panels, light bars, lights, and other rooftop devices.
Technical Specification
Material | High Impact Plastic |
Height | 20mm (0.79”) |
Length | 46mm (1.81”) |
Colour | Black |
Cable Diameter | 2-6mm (0.08-0.24") |
Bungs | 1 x 2mm (0.08") / 1x 3mm (0.12") / 1 x 4mm (0.16") / 1 x 5mm (0.20") / 1 x 6mm (0.24") |
Installation Guide
The testing standard at Scanstrut is encapsulated by the acronym SCA, which stands for Safe, Certified, and Approved. With over 35 years of experience and expertise in designing products for outdoor use, Scanstrut design products to be able to thrive in the harshest of outdoor environments.
Before any product is released, it must pass through the rigorous testing program which involves assessments in electrical, mechanical, U.V., corrosion, thermal, and waterproof categories. To ensure the highest level of accuracy, testing is conducted both internally and by independent ISO accredited test houses.
This commitment to quality has earned Scanstrut the approval of renowned names such as Mercury Marine, Grady White Boats, Boston Whaler, Winnebago, Airstream and many more. To learn more about the SCA testing program and certifications, get in touch.

Corrosion Test
100-hours of a special formula salt spray that simulates accelerated marine environmental effects on the product.
FEA Analysis
Finite Element Analysis, simulates the behaviour of the design in virtual conditions to allow us to optimise the design before prototyping and physical testing.
Material Test
Positive Material Identification (PMI) ensures consistent quality of 316 Stainless Steel and Aluminium products. This controls strength and environmental performance.
Accelerated UV Material Test
We accelerate the effects of UV exposure to replicate our products usage in extreme tropical climates. We do this to ensure parts do not become brittle, discolour or fail over time.
PROP65
Confirms the exclusion of substances of very high concern in our products, with the aim of protecting human and animal health.
IP Test
Water and dust protection under test laboratory conditions to international IP standards. We test between IPX4 (waterjet) and IP68 (submersion).Related Products
