Flip Pro Max
SC-USB-F3
Flip Pro Max is designed for use with either a 12V or 24V input and features 2x 60W USB-C charging ports for maximum performance.
Flip Pro Max is designed for use with either a 12V or 24V input and features 2x 60W USB-C charging ports. This provides the fastest charging for your devices on the road.

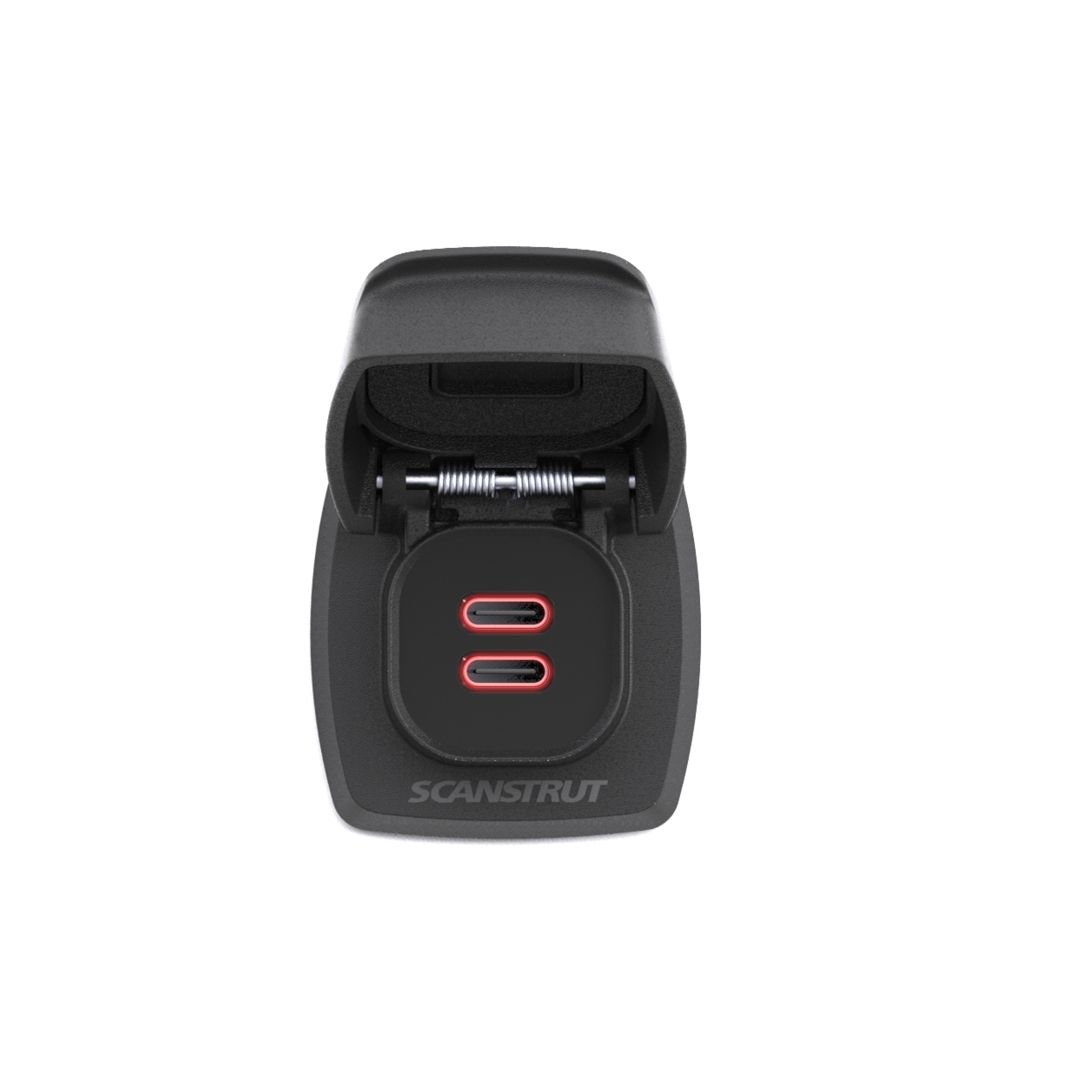

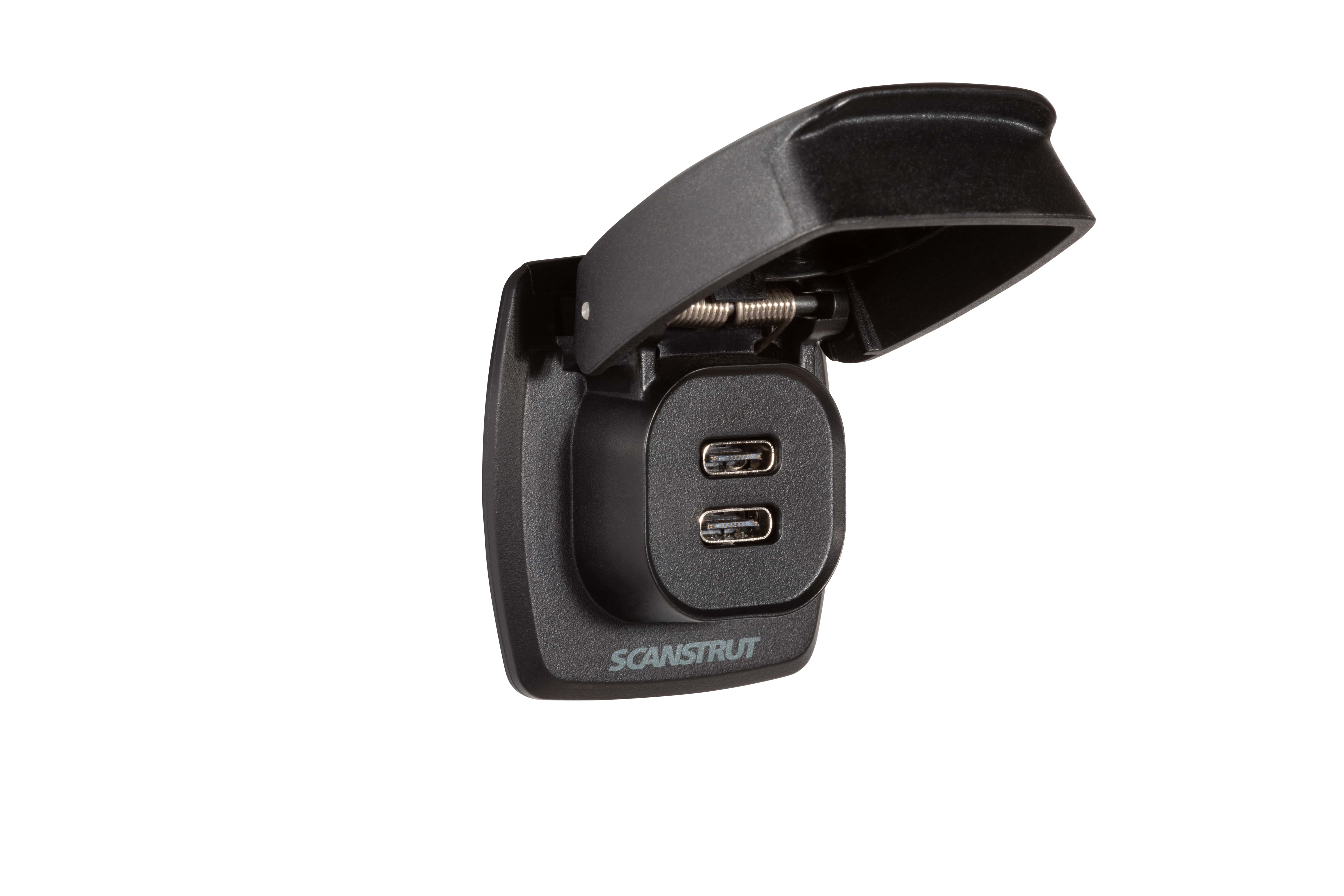

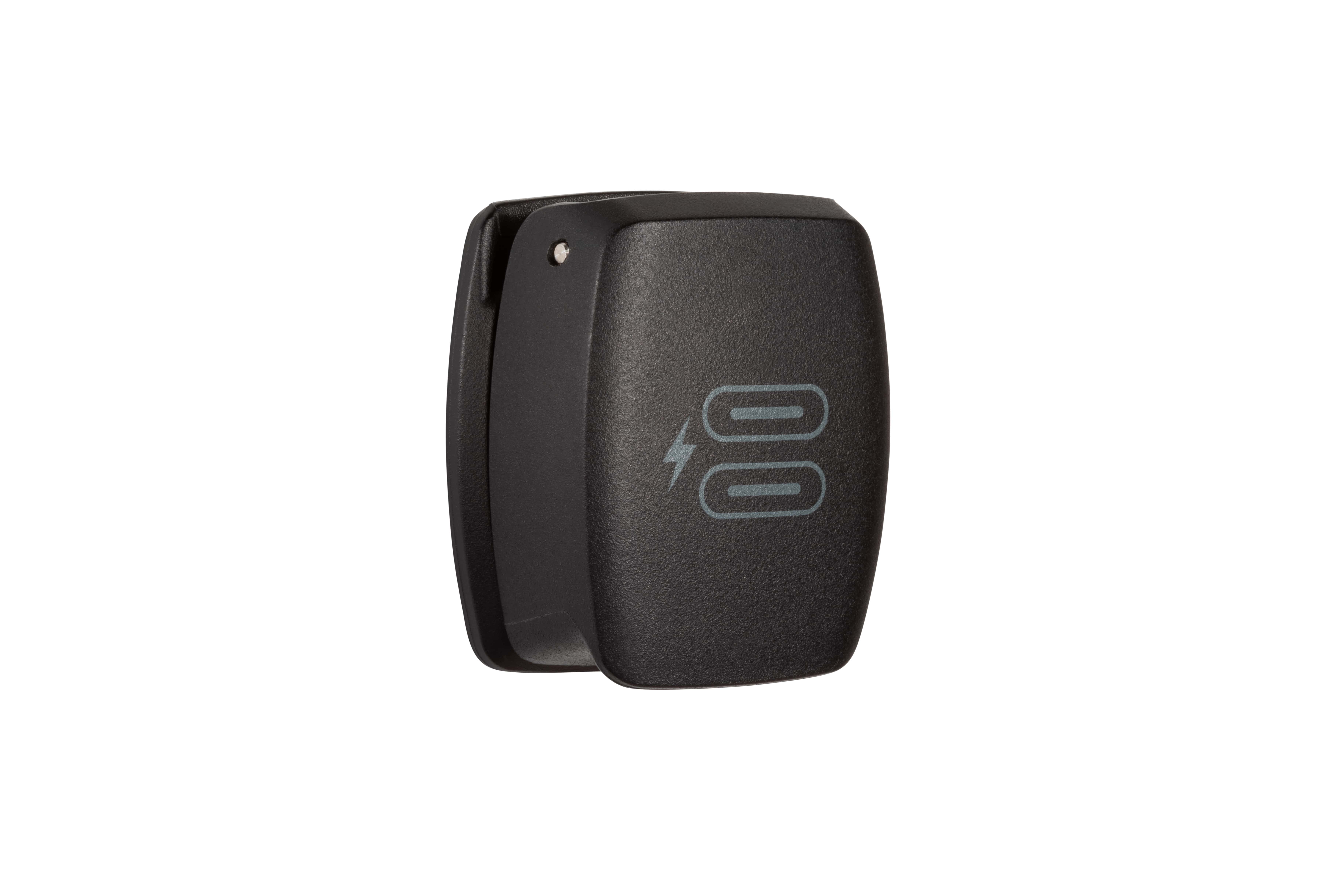

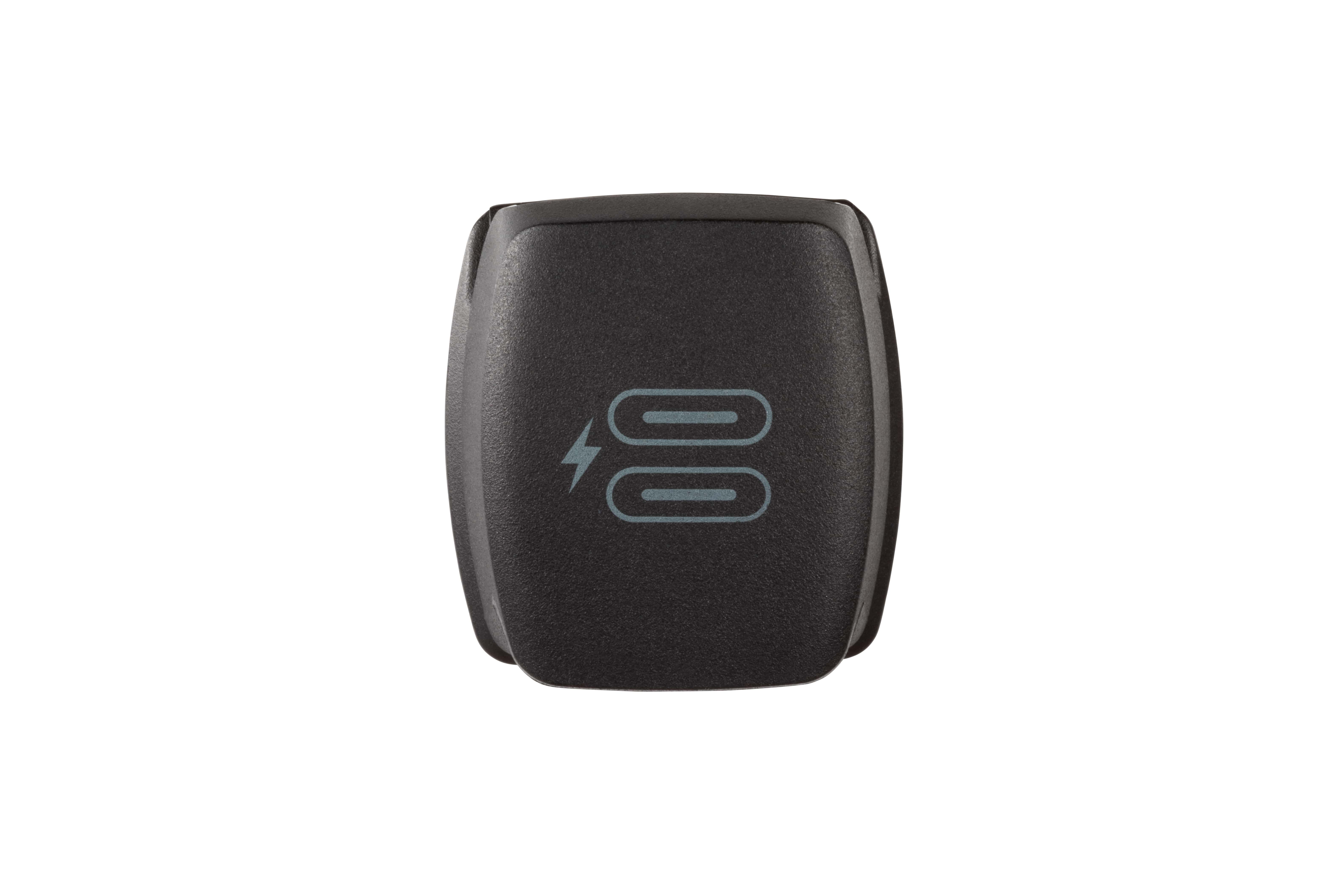

When not in use, the spring-loaded cap remains tightly closed, protecting the ports from the elements. When charging, it quickly locks open to protect your cables when plugged in.
Featuring a super-compact footprint, Flip Pro Max is constructed from premium, marine-grade materials and is IPX4 waterproof, making it completely washdown-ready.
Flip Pro Max is FAST! It will charge at 36W on a 12V system or up to 60W on a 24V system. This makes it perfect for charging modern laptops and large tablets, phones, and any other USB-C-powered devices onboard.
Key Features
- Universal fit for any USB-C connectors
- Fast charge (60W max) up to 2 devices at a time
- Easy install, using a Ø32mm (1.25”) hole saw

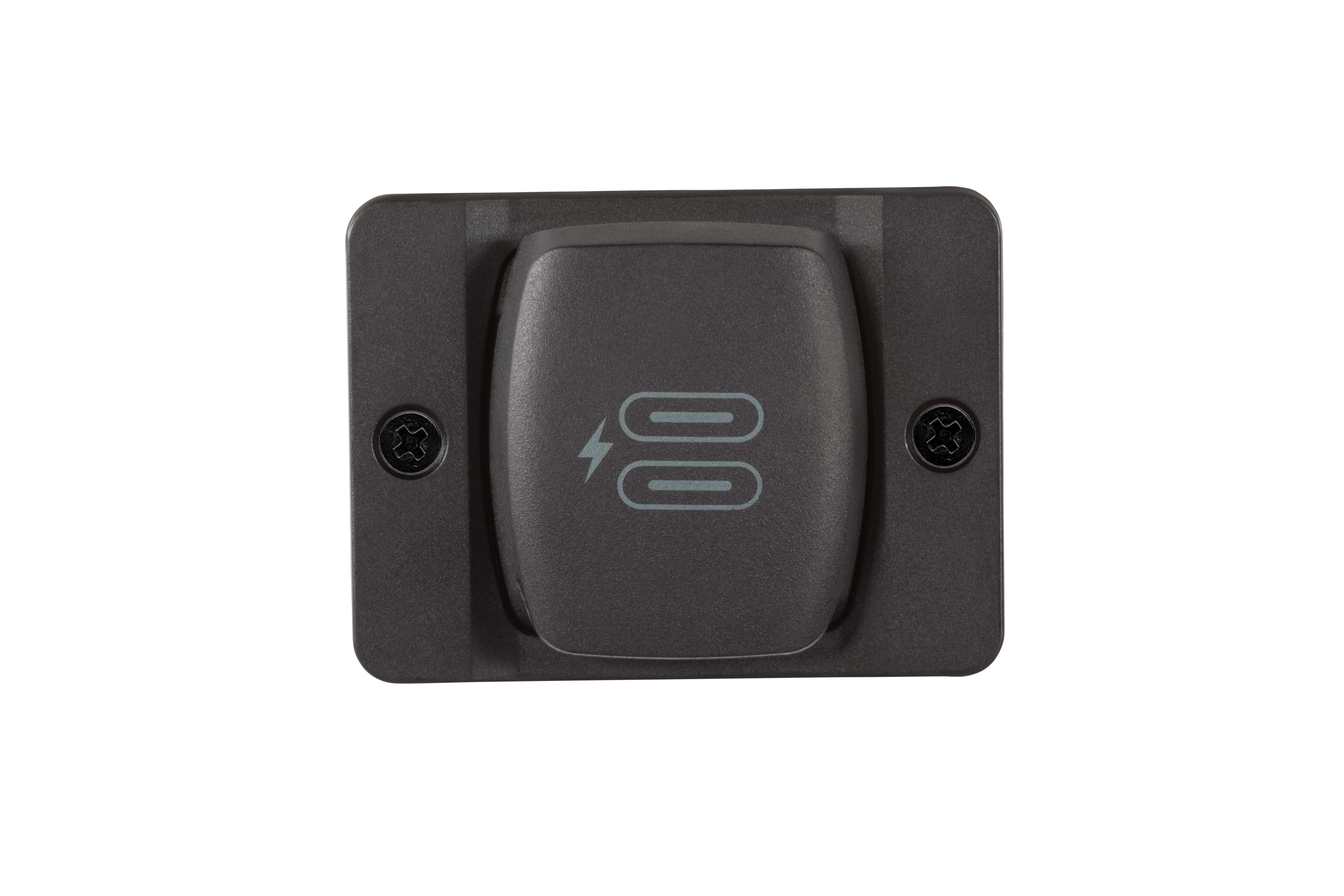

- Supplied as standard with an optional front fit bezel
- Internal anti-corrosion protective coating
- UV resistant
- 316 stainless hinge and spring
- IPX4 waterproof with the cover closed
Important Information
To maximize charge performance, use the cable supplied with your tablet, phone, etc. (C to C, or C-lightning)Phones charge at the same speed on either a 12 or 24V system, but a 24V system must be used to get the full 60W output suitable for laptops.
Electrical Information
Input Voltage | 10-32V DC (12/24V system) |
Input Current | Max 6A (10A fuse recommended) |
Output (Type C) | 12V System: 5V⎓3A, 9V⎓3A, 12V⎓3A MAX 24V System: 5V⎓3A, 9V⎓3A, 12V⎓3A, 15V⎓3A, 20V⎓3A Max |
24V System: 5V⎓3A, 9V⎓3A, 12V⎓3A, 15V⎓3A, 20V⎓3A Max | |
Standby Draw | 0.01W |
Certification | CE, FCC, UKCA, C-Tick, ROHS, WEE |
Installation Guide
If you can't find the answer to your question, please get in touch and one of our product experts will get back to you.
What makes ROKK charge + up to 3x faster than other USB sockets?
The PCB (printed circuit board) inside the ROKK Charge+ enables the device to recive similar charge as it would from a mains power charger.
Why is the Scanstrut charge range different to other so called "waterproof USB chargers" on the market?
Our range of USB chargers remains waterproof even when the socket is in use. Other USB chargers are only waterproof when not being used and the cover fitted.
Can I replace an old USB socket with a Scanstrut version?
In most case it’s an easy swap, just remove the old version and our USB barrels will fit into the existing hole and add self tapping screw/s where required.
The testing standard at Scanstrut is encapsulated by the acronym SCA, which stands for Safe, Certified, and Approved. With over 35 years of experience and expertise in designing products for outdoor use, Scanstrut design products to be able to thrive in the harshest of outdoor environments.
Before any product is released, it must pass through the rigorous testing program which involves assessments in electrical, mechanical, U.V., corrosion, thermal, and waterproof categories. To ensure the highest level of accuracy, testing is conducted both internally and by independent ISO accredited test houses.
This commitment to quality has earned Scanstrut the approval of renowned names such as Mercury Marine, Grady White Boats, Boston Whaler, Winnebago, Airstream and many more. To learn more about the SCA testing program and certifications, get in touch.

IP Test
Water and dust protection under test laboratory conditions to international IP standards. We test between IPX4 (waterjet) and IP68 (submersion).
Accelerated UV Material Test
We accelerate the effects of UV exposure to replicate our products usage in extreme tropical climates. We do this to ensure parts do not become brittle, discolour or fail over time.
Cable Bend Test
Electrical products are bolted into a specially designed automated jig to mechanically bend the cable -45° to +45° for 3000 cycles. This ensures cables will not fail even after prolonged use.
Thermal Chamber Test
Laboratory chamber running from -40°C (-40°F) to +85°C (185°F) and back to -40°C (-40°F) for 120 cycles, this accelerates material ageing to simulate real world environment.
Cable Twist Test
Electrical products are bolted into a specially designed automated jig to mechanically twist the cable -45° to +45° for 3000 cycles. This ensures cables will not fail even after prolonged use.
Temperature Chamber Test
Product placed in a laboratory chamber at high temperatures to ensure our products continue to perform as designed.
Corrosion Test
100-hours of a special formula salt spray that simulates accelerated marine environmental effects on the product.
On Water Charge Test
Using real life on water temperature data to ensure devices will continue to charge at an acceptable speed in extreme cold and hot temperatures.
On Water Testing Global
Similar to SCA standard on water testing, however we select locations and vessels for more varied and challenging environmental conditions.
FEA Analysis
Finite Element Analysis, simulates the behaviour of the design in virtual conditions to allow us to optimise the design before prototyping and physical testing.
C Tick
An identification trademark registered to the ACMA indicates that the equipment complies with the relevant EMC standard.
CE / UKCA
Signifies that our products have been assessed to meet high safety, health, and environmental protection requirements.
ECE R10
The global automotive standard recognised by RV and Marine OEMs to ensure electrical devices are suitable to use in automotive builds.
FCC
A legal requirement to sell any communication device (RF) in the United States of America.
Humidity Chamber Test
Similar to our brutal SCA Thermal Chamber Test, but we’ve added humidity to make it even more punishing.
Material Test
Positive Material Identification (PMI) ensures consistent quality of 316 Stainless Steel and Aluminium products. This controls strength and environmental performance.
PROP65
Confirms the exclusion of substances of very high concern in our products, with the aim of protecting human and animal health.
ROHS
Confirms the levels of substances and chemicals in our electrical products, with the aim of protecting human and animal health.Related Products
