Horizontal Cable Seals

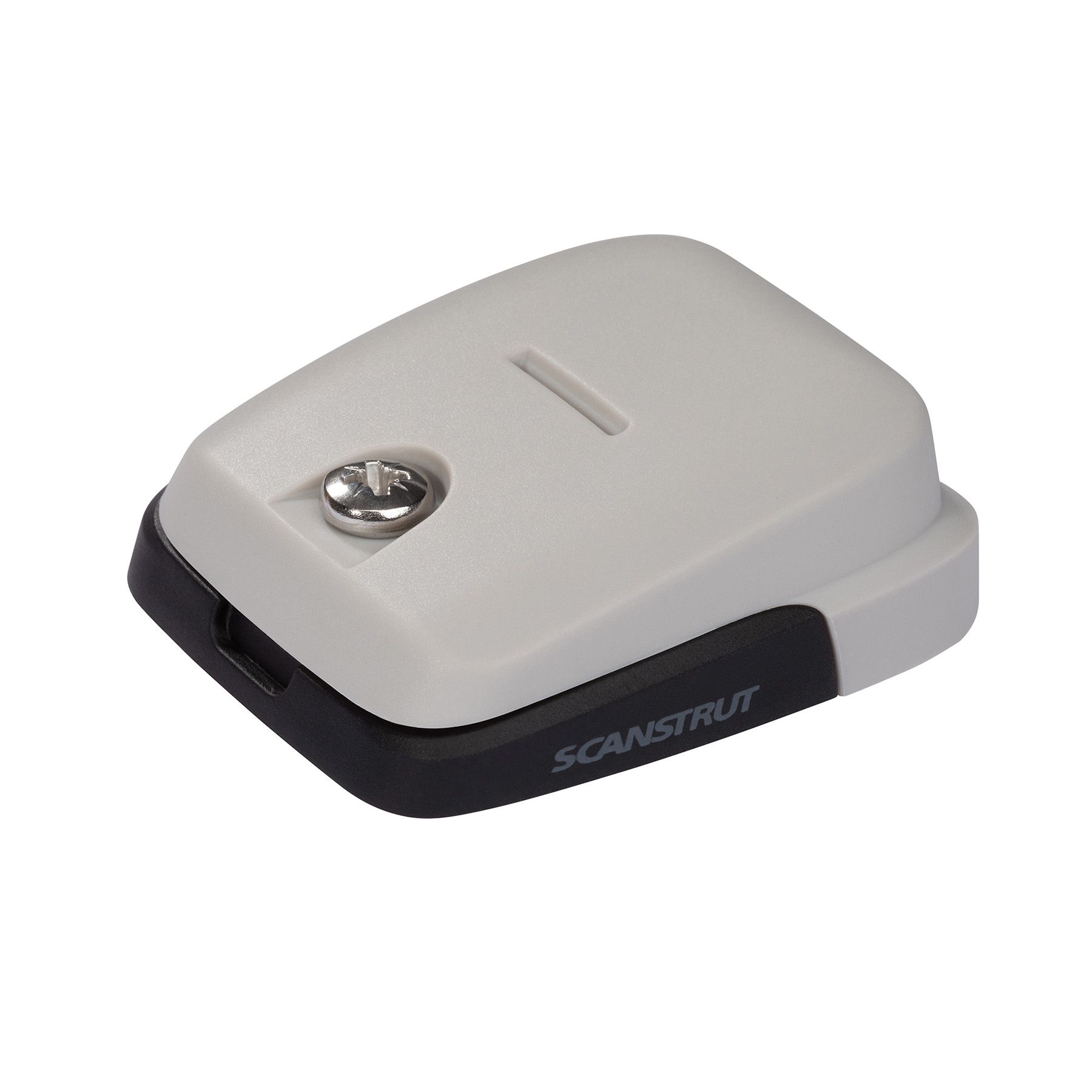

The DS-HD6 double cable seal was designed to eliminate the time-consuming and sub-standard routing of solar panel cables. Our seal helps you achieve a sleek, easy-to-fit, and 100% watertight installation every time. Perfect for routing two solar panel cables externally to internally on the roof of boats, campervans, and agricultural vehicles. Its low-profile design provides the best water ingress protection for the smallest mounting footprint in its class.

Have you made the switch to the DS-HD6?

  • Designed for solar panel installations

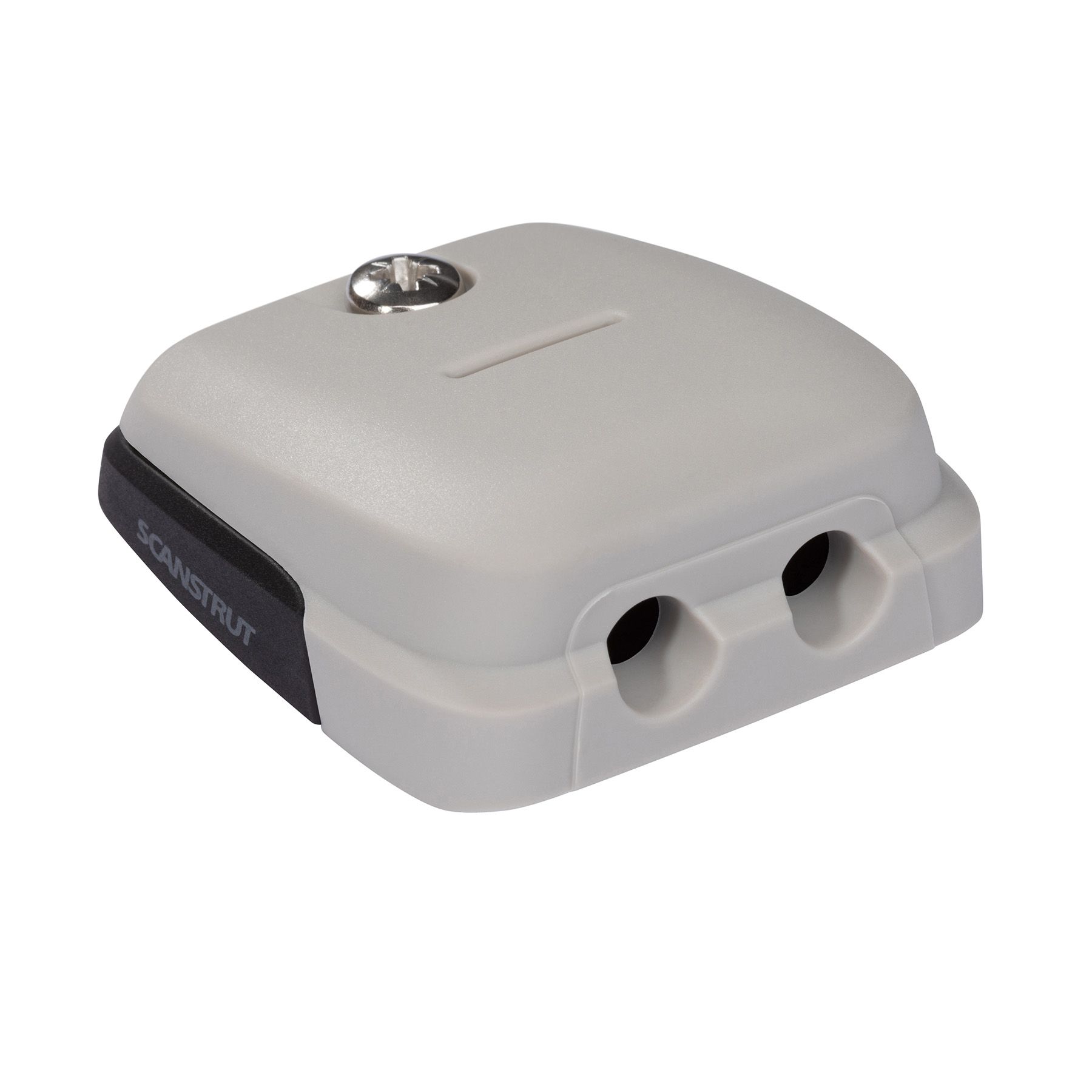

  • Install 2 cables - 5mm (0.19”) and 6mm (0.23”) in any combination.
  • Compact footprint - just 54mm (W) 63mm (L) 24mm (h)
  • Makes it perfect for installing as close to the solar panel as possible
  • Easy fit cable routing that cuts down your installation time through wood, metal, and GRP
  • IP68 watertight seal
  • Black high impact plastic

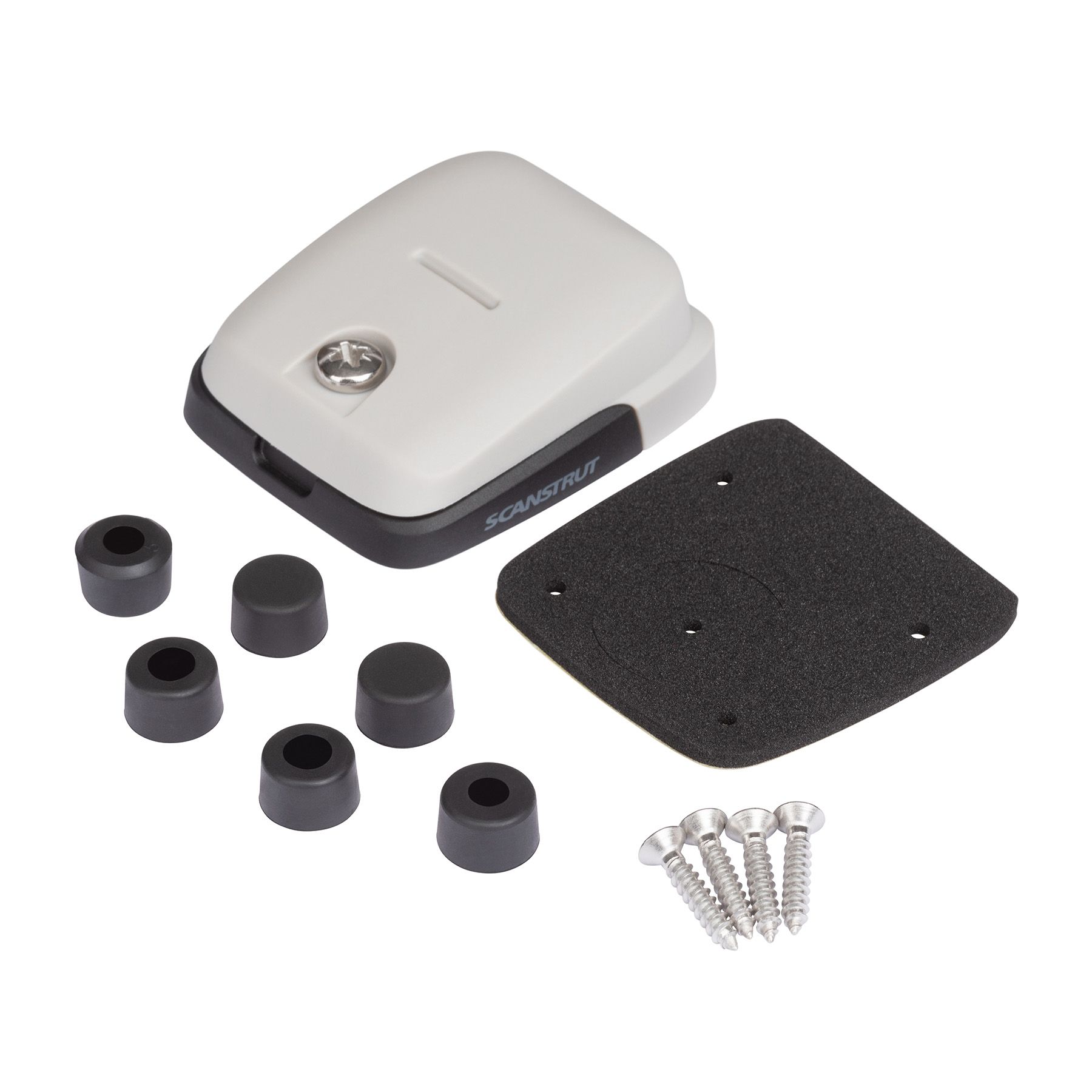

  • Includes 316 stainless steel fixings and a waterproof 3M gasket
  • Clean and simple design
  • The low-profile construction is impact-resistant and provides extra protection from water
  • Captive nuts make for easy assembly and also allow for reliable repeat installations
  • Our materials have been selected to be UV- stable and hard-wearing
  • No messy sealant on bungs
  • Constructed from premium marine-grade materials

Our Testing Ethos

Our testing standard at Scanstrut is encapsulated by the acronym SCA, which stands for Safe, Certified, and Approved. With over 35 years of experience and expertise in designing products for outdoor use, we design our products to be able to thrive in the harshest of outdoor environments.

Before any product is released, it must pass through our rigorous testing program which involves assessments in electrical, mechanical, U.V., corrosion, thermal, and waterproof categories. To ensure the highest level of accuracy, testing is conducted both internally and by independent ISO accredited test houses.

Our commitment to quality has earned us the approval of renowned names such as Mercury Marine, Grady White Boats, Boston Whaler, Winnebago, Airstream and many more. To learn more about our testing program and certifications, please feel free to reach out to us.

View Product TestsView All Tests

Corrosion Test

Corrosion Test

100-hours of a special formula salt spray that simulates accelerated marine environmental effects on the product.
FEA Analysis

FEA Analysis

Finite Element Analysis, simulates the behaviour of the design in virtual conditions to allow us to optimise the design before prototyping and physical testing.
Material Test

Material Test

Positive Material Identification (PMI) ensures consistent quality of 316 Stainless Steel and Aluminium products. This controls strength and environmental performance.
Accelerated UV Material Test

Accelerated UV Material Test

We accelerate the effects of UV exposure to replicate our products usage in extreme tropical climates. We do this to ensure parts do not become brittle, discolour or fail over time.
PROP65

PROP65

Confirms the exclusion of substances of very high concern in our products, with the aim of protecting human and animal health.
IP Test

IP Test

Water and dust protection under test laboratory conditions to international IP standards. We test between IPX4 (waterjet) and IP68 (submersion).
