NEW
Aura 10W
SC-CW-12F
Mag. Charge. Connect.
Aura 10W. Designed to withstand the toughest conditions, this device not only wirelessly charges your phone but also securely holds it in place.
Thanks to our Mag technology, your Apple iPhone will effortlessly magnetically lock into the optimal charging location.
Our IPX6 waterproof, 12/24V wireless range enables phone charging for the outdoor environment, without the need for cables. Designed from the ground up, this is the world’s first waterproof wireless charge system created specifically for use onboard.
Introducing our latest innovation - Aura 10W. Designed to withstand the toughest conditions, this device not only wirelessly charges your phone but also securely holds it in place.Thanks to our Mag technology, your Apple iPhone will effortlessly magnetically lock into the optimal charging location. Plus, the front spring-loaded locking grip ensures your phone remains in place even during rough rides, keeping it fully charged and within reach at all times.
Installation options

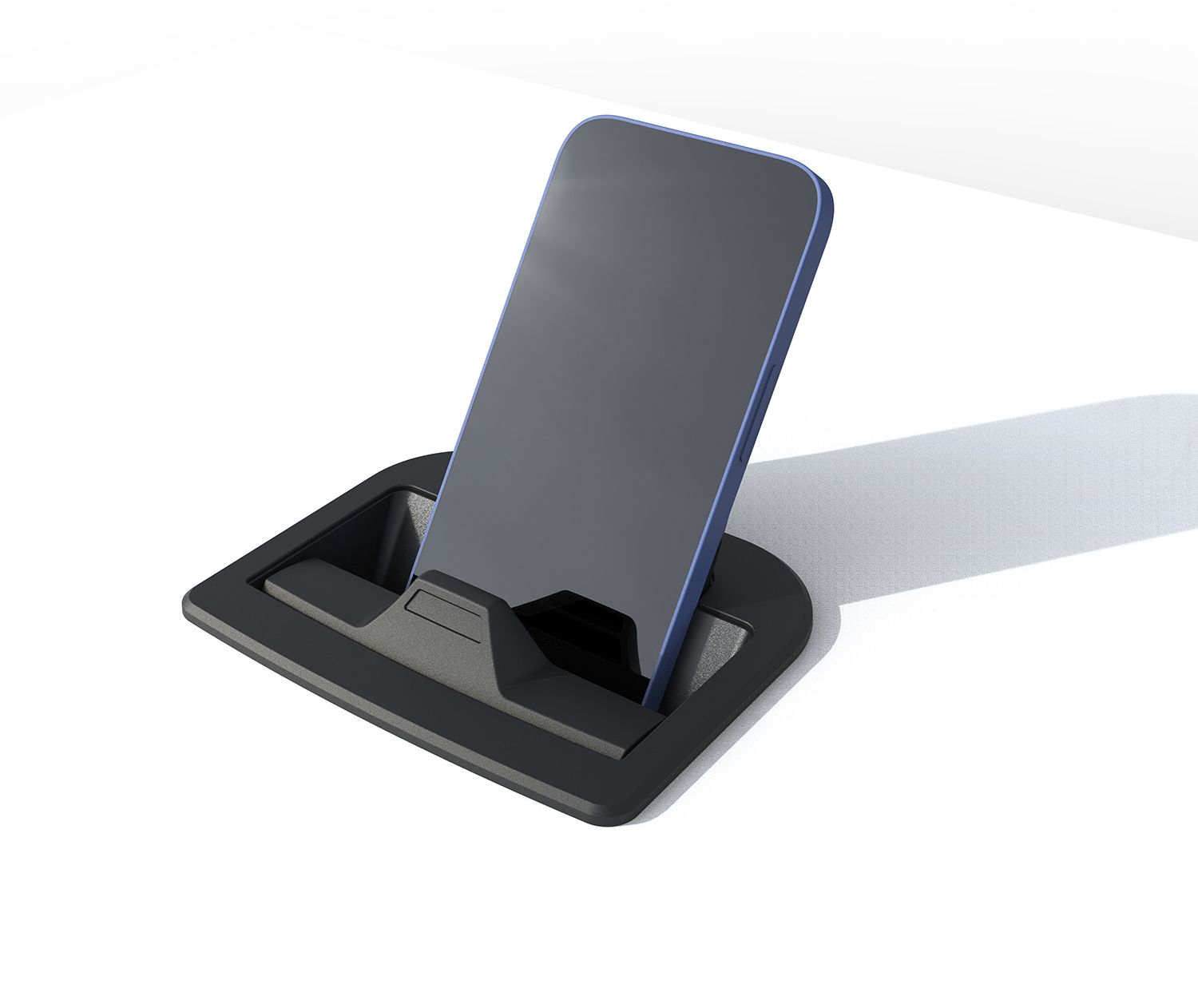

Designed to be installed below marine foam products, or using the optional top-mount bezel for installation on the top of the mounting surface.
Power
Our new upgraded 10W chargers are up to 60% faster and have been designed for the latest generation of power-hungry devices and apps.
Testing
Subjected to our harshest environmental, vibration, impact and on-water testing programs. This is combined with our world-renowned expertise in waterproofing technologies, UV stabilization techniques and premium-grade materials to ensure Aura is the best and only choice to make when it comes to mounting and wirelessly charging your phone outdoors.
Key Features
- 10W Fast Charging
- Mag technology
- IPX6 Waterproof
- Qi Certified
- Front spring-loaded locking grip
Electrical Information
Input Voltage Range | 10-30V DC (12/24V system) |
Input current max | 2A |
Output Power | 10W (9V,1.1A) |
Standby Power Draw | < 0.2W |
Certification | Qi, CE, UKCA, FCC, ROHS, C-Tick, UN ECE R10, IC, PSE Certified |
Installation Guide
The testing standard at Scanstrut is encapsulated by the acronym SCA, which stands for Safe, Certified, and Approved. With over 35 years of experience and expertise in designing products for outdoor use, Scanstrut design products to be able to thrive in the harshest of outdoor environments.
Before any product is released, it must pass through the rigorous testing program which involves assessments in electrical, mechanical, U.V., corrosion, thermal, and waterproof categories. To ensure the highest level of accuracy, testing is conducted both internally and by independent ISO accredited test houses.
This commitment to quality has earned Scanstrut the approval of renowned names such as Mercury Marine, Grady White Boats, Boston Whaler, Winnebago, Airstream and many more. To learn more about the SCA testing program and certifications, get in touch.

QI
The world’s No.1 wireless charging standard, this ensures our chargers are built to an extreme level of safety and ensures compatibility of all phones.
IP Test
Water and dust protection under test laboratory conditions to international IP standards. We test between IPX4 (waterjet) and IP68 (submersion).
Accelerated UV Material Test
We accelerate the effects of UV exposure to replicate our products usage in extreme tropical climates. We do this to ensure parts do not become brittle, discolour or fail over time.
Cable Bend Test
Electrical products are bolted into a specially designed automated jig to mechanically bend the cable -45° to +45° for 3000 cycles. This ensures cables will not fail even after prolonged use.
Thermal Chamber Test
Laboratory chamber running from -40°C (-40°F) to +85°C (185°F) and back to -40°C (-40°F) for 120 cycles, this accelerates material ageing to simulate real world environment.
Cable Twist Test
Electrical products are bolted into a specially designed automated jig to mechanically twist the cable -45° to +45° for 3000 cycles. This ensures cables will not fail even after prolonged use.
Temperature Chamber Test
Product placed in a laboratory chamber at high temperatures to ensure our products continue to perform as designed.
Corrosion Test
100-hours of a special formula salt spray that simulates accelerated marine environmental effects on the product.
On Water Charge Test
Using real life on water temperature data to ensure devices will continue to charge at an acceptable speed in extreme cold and hot temperatures.
On Water Testing Global
Similar to SCA standard on water testing, however we select locations and vessels for more varied and challenging environmental conditions.
FEA Analysis
Finite Element Analysis, simulates the behaviour of the design in virtual conditions to allow us to optimise the design before prototyping and physical testing.
C Tick
An identification trademark registered to the ACMA indicates that the equipment complies with the relevant EMC standard.
CE / UKCA
Signifies that our products have been assessed to meet high safety, health, and environmental protection requirements.
ECE R10
The global automotive standard recognised by RV and Marine OEMs to ensure electrical devices are suitable to use in automotive builds.
FCC
A legal requirement to sell any communication device (RF) in the United States of America.
Humidity Chamber Test
Similar to our brutal SCA Thermal Chamber Test, but we’ve added humidity to make it even more punishing.
Material Test
Positive Material Identification (PMI) ensures consistent quality of 316 Stainless Steel and Aluminium products. This controls strength and environmental performance.
PROP65
Confirms the exclusion of substances of very high concern in our products, with the aim of protecting human and animal health.
ROHS
Confirms the levels of substances and chemicals in our electrical products, with the aim of protecting human and animal health.Related Products
